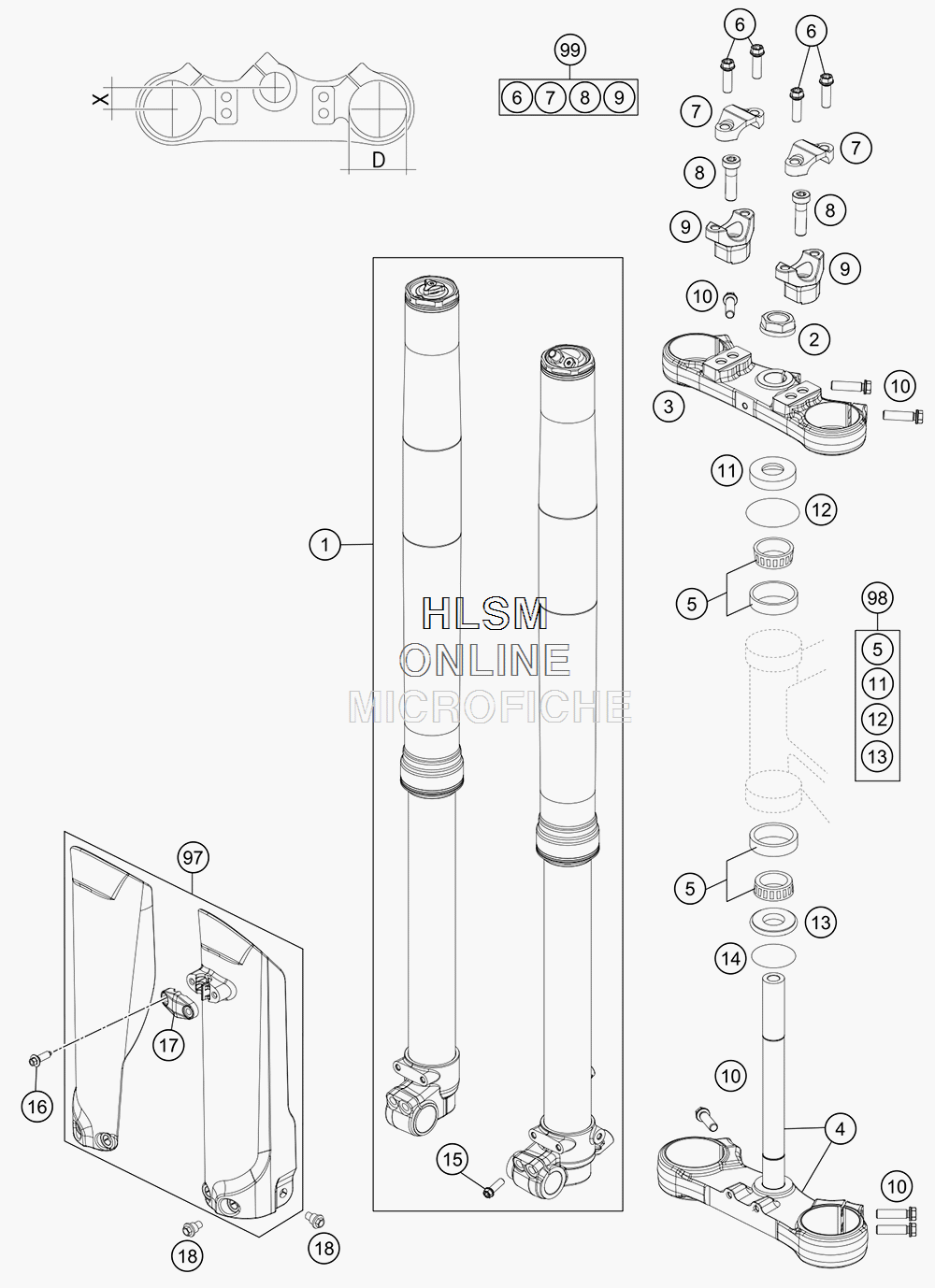

FRONT FORK- TRIPLE CLAMP для Ktm 85SX 1916 - 2019 года выпуска
-
№АртикулНазвание
-
143188S0401 FORK 85 SX/TCFORK 85 SX/TC
-
259030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
347101034214 UPPER TRIPLE CLAMPUPPER TRIPLE CLAMP
-
447101032214 COMPL. LOWER TRIPLE CLAMPCOMPL. LOWER TRIPLE CLAMP
-
549001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
60025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
777201038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
80032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
959401039037 HANDLEB.SUPP. D=28MM H=37MM 05HANDLEB.SUPP. D=28MM H=37MM 05
-
100025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
1149001086000 COVERING CAPCOVERING CAP
-
120770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
1346001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
140770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
150025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
177770108510028 CLAMP BRAKE HOSECLAMP BRAKE HOSE
-
1859001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
974720109400028D FORK PROTECTOR SET 85 SX 19FORK PROTECTOR SET 85 SX 19
-
9800050000931 STEARING HEAD REP. KIT MINISTEARING HEAD REP. KIT MINI
-
9900050000921 HANDLEBAR SUPPORT KIT D28/H37HANDLEBAR SUPPORT KIT D28/H37
