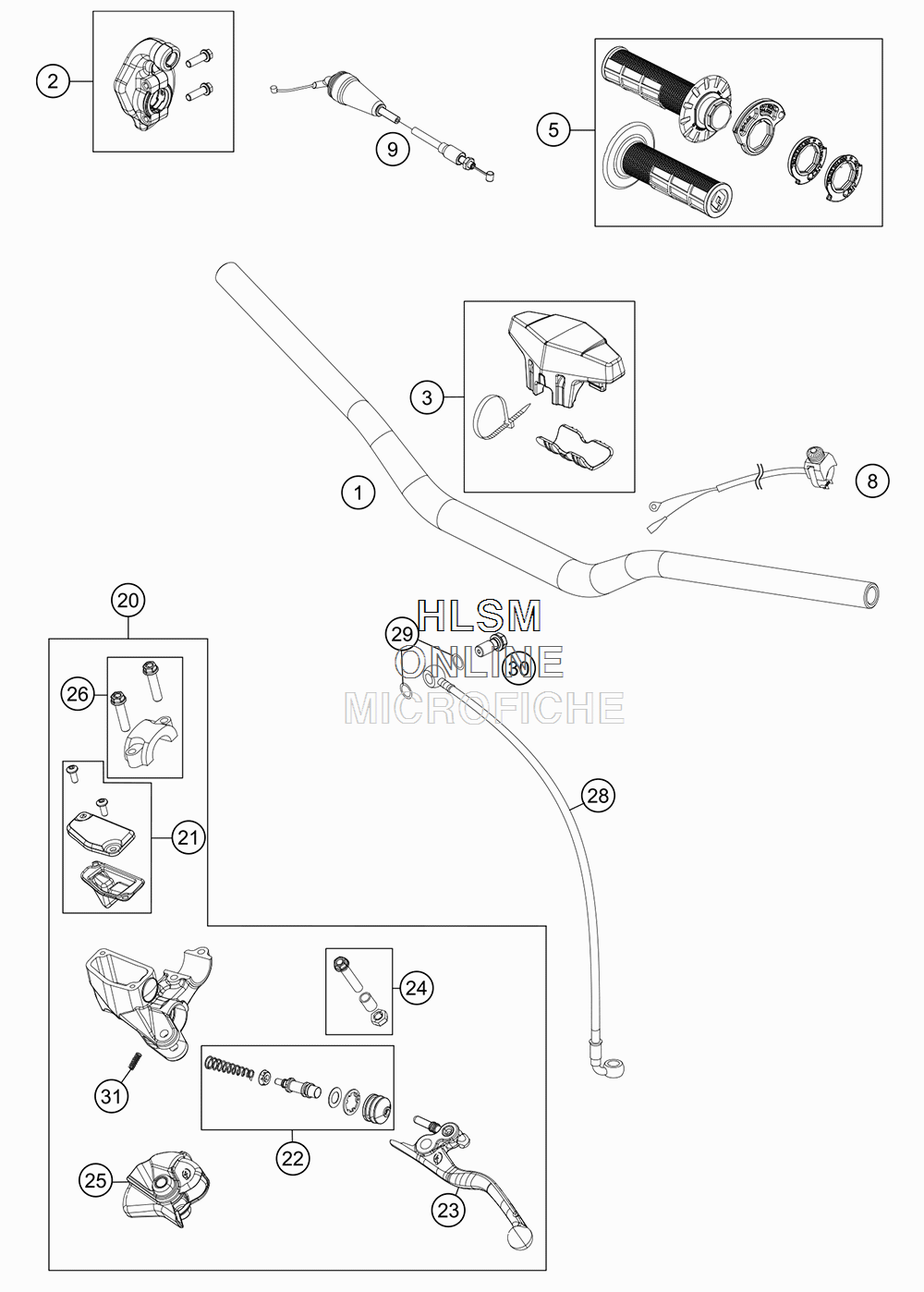

HANDLEBAR- CONTROLS для Ktm 85SX 1916 - 2019 года выпуска
-
№АртикулНазвание
-
147102001000 HANDLEBAR 85SX 2013HANDLEBAR 85SX 2013
-
250402010025 THROTTLE BODY CPL.THROTTLE BODY CPL.
-
377202002144 BAR PAD CPL.BAR PAD CPL.
-
579002021100 GRIP SETGRIP SET
-
850311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
947202091000 THROTTLE CABLETHROTTLE CABLE
-
2072002030100 MASTER CYLINDER CPL. 10MMMASTER CYLINDER CPL. 10MM
-
2172002003000 COVER F. MASTER CYLINDER CPL.COVER F. MASTER CYLINDER CPL.
-
2272002032000 REP. KIT PISTON 10MMREP. KIT PISTON 10MM
-
2372013002000 LEVER CPL.LEVER CPL.
-
2470002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2572002037000 MUDCOVER CLUTCH LEVERMUDCOVER CLUTCH LEVER
-
2672013005000 CLAMPCLAMP
-
2872032063000 CLUTCH PIPECLUTCH PIPE
-
290770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
3047013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
3172002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
