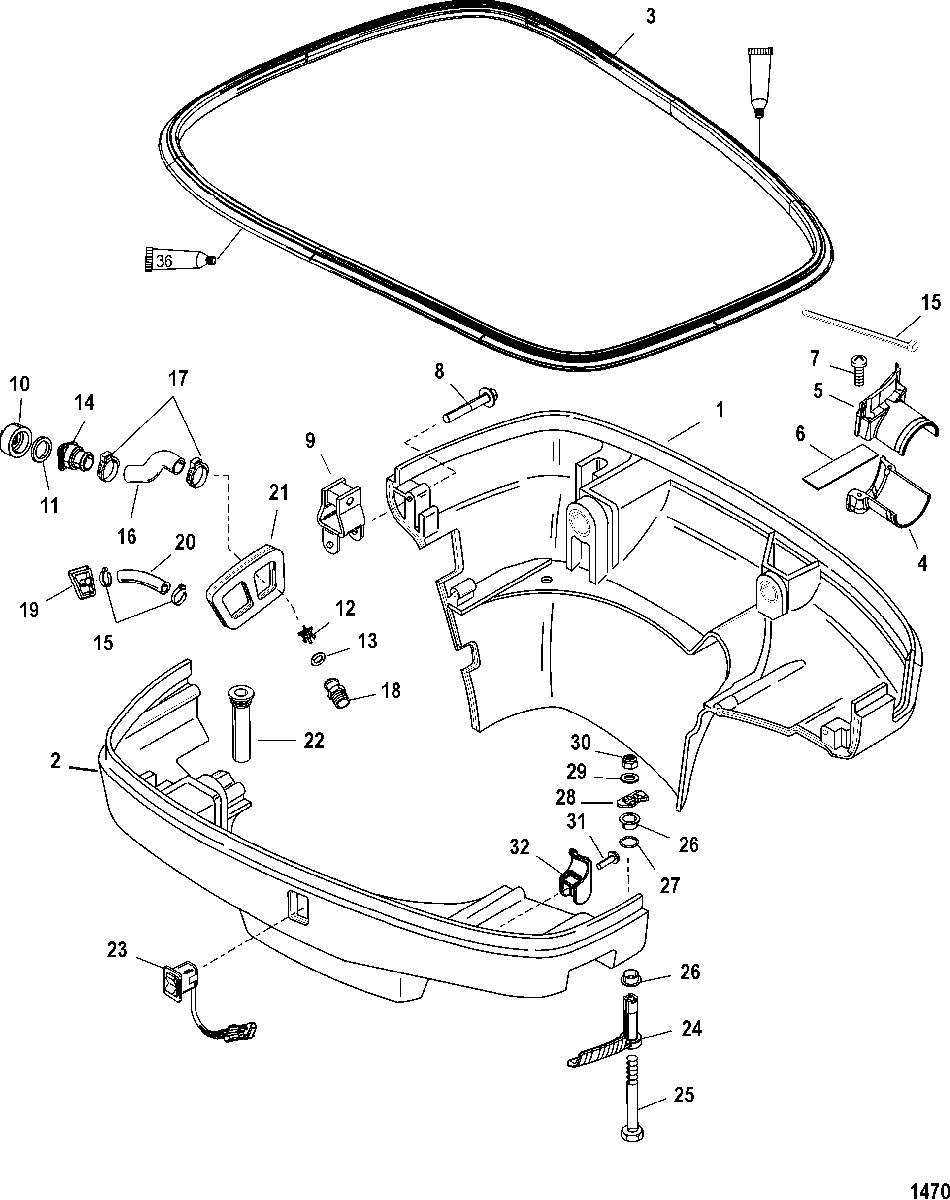

Bottom Cowl для Mariner - 140 JET 0G960500 THRU 0T178499
-
№АртикулНазвание
-
14022-828044A1 BOTTOM COWL, Black
(BLACK-PORT)BOTTOM COWL, Black
(BLACK-PORT) -
2100-8M0107326 BOTTOM COWL, Black
(BLACK-STARBOARD)BOTTOM COWL, Black
(BLACK-STARBOARD) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
-875266A2 RIGGING KITRIGGING KIT
-
4859435T INSERTINSERT
-
5859434T INSERTINSERT
-
6859343 FOAMFOAM
-
710-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
9831209 RETAINERRETAINER
-
1019-821908 PLUGPLUG
-
1112-821915 WASHERWASHER
-
128219631 CHECK VALVECHECK VALVE
-
1325-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
1422-821952 FITTINGFITTING
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1632-8M0039077 HOSEHOSE
-
1754-850896 CLAMP, (28.6)CLAMP, (28.6)
-
1822-8320761 FITTING, Check ValveFITTING, Check Valve
-
1922-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8 Inches)HOSE, (57.00 Inches Bulk) (Cut to 8 Inches)
-
21889847 IDLE EXHAUST BOOT, Exhaust
SN# 0T800999 & BelowIDLE EXHAUST BOOT, Exhaust
SN# 0T800999 & Below -
21889847 BOOT, Idle Exhaust
SN# 0T801000 & UpBOOT, Idle Exhaust
SN# 0T801000 & Up -
2221-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
2387-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
24889740A02 FRONT HANDLE, Black
Cast HandleFRONT HANDLE, Black
Cast Handle -
24889740A02 HANDLE KIT
Plastic HandleHANDLE KIT
Plastic Handle -
2510-1993716 SCREW, (M6 x 16)
(Use W/Plastic Handle)SCREW, (M6 x 16)
(Use W/Plastic Handle) -
2510-824868 SCREW, (M6 x 75)
(Use W/Cast Handle)SCREW, (M6 x 75)
(Use W/Cast Handle) -
2623-335891 BUSHINGBUSHING
-
2725-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
288219423 PAWL, Front HandlePAWL, Front Handle
-
2912-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
3011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3110-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3254-822873 CLIPCLIP
-
-812815R97 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III) -
-813043R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
