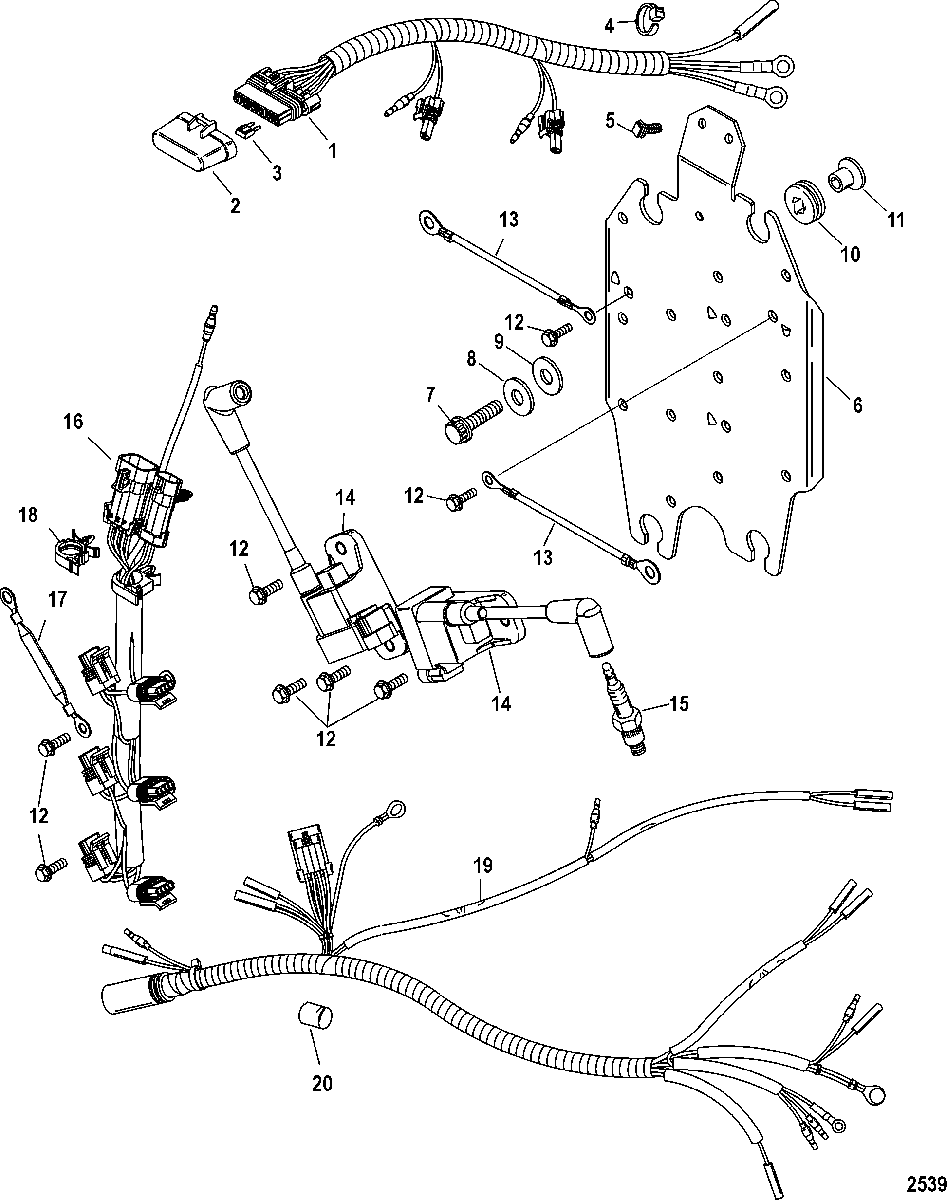

CDM Mounting для Mariner - 140 JET 0G960500 THRU 0T178499
-
№АртикулНазвание
-
184-858425T2 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2NSS NOT SOLD SEPARATE, CoverNOT SOLD SEPARATE, Cover
-
388-83296930 FUSE, Mini - Green - 30 Ampere
(30 AMP)(GREEN)FUSE, Mini - Green - 30 Ampere
(30 AMP)(GREEN) -
388-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)(YELLOW)FUSE, Mini - Yellow - 20 Ampere
(20 AMP)(YELLOW) -
454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
554-828991T CLIPCLIP
-
68571621 PLATE, CDM MountingPLATE, CDM Mounting
-
710-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
812-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
912-49436 WASHERWASHER
-
1025-833155 GROMMETGROMMET
-
1123-8502341 BUSHINGBUSHING
-
1210-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1384-856583A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
14827509T7 CDM MODULE ASSEMBLYCDM MODULE ASSEMBLY
-
-84-857124A1 CABLE ASSEMBLY, Hi-TensionCABLE ASSEMBLY, Hi-Tension
-
-85-857074A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1533-14814Q SPARK PLUG, (NGK # BPZ8HS-10)SPARK PLUG, (NGK # BPZ8HS-10)
-
1684-857163T1 HARNESS ASSEMBLY, CDMHARNESS ASSEMBLY, CDM
-
1784-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
18828791 CLIPCLIP
-
1984-857166T1 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
2013541 PLUG, MalePLUG, Male
