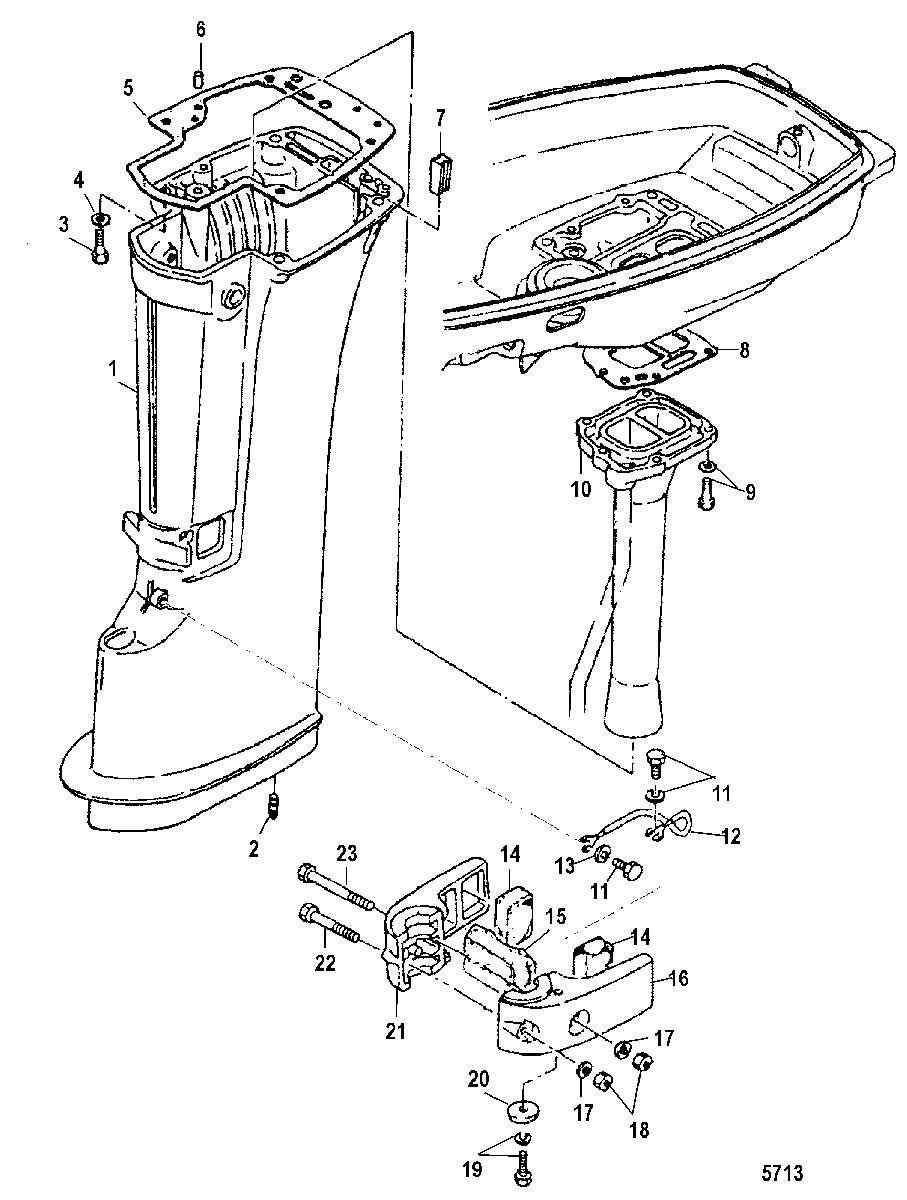

Drive Shaft Housing для Mariner - 15 (2 CYL.) (International) 0N001590 THRU 0N055284
-
№АртикулНазвание
-
11599-803724T HOUSING, Driveshaft
(Short)HOUSING, Driveshaft
(Short) -
11500-8M0121378 HOUSING, Driveshaft
(Long)HOUSING, Driveshaft
(Long) -
216-879194301 STUDSTUD
-
310-8M0106720 BOLTBOLT
-
412-8M0135942 WASHERWASHER
-
527-803663036 GASKETGASKET
-
617-16119 PIN, DowelPIN, Dowel
-
725-803736 GROMMETGROMMET
-
827-803728003 GASKETGASKET
-
910-823042 BOLTBOLT
-
10803727 TUBE, ExhaustTUBE, Exhaust
-
1110-82304223 BOLTBOLT
-
1284-898101089 GROUND WIREGROUND WIRE
-
1312-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
14803775 RUBBER MOUNT, SideRUBBER MOUNT, Side
-
158037751 RUBBER MOUNT, FrontRUBBER MOUNT, Front
-
16803776 COVERCOVER
-
1712-8M0135942 WASHERWASHER
-
1811-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1910-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
2097-823913Q ANODEANODE
-
218037761 COVERCOVER
-
2210-879194309 BOLTBOLT
-
2310-879194310 BOLTBOLT
-
-27-8M0082884 GASKET SET, Lower UnitGASKET SET, Lower Unit
-
-27-8M0141830 GASKET SET, Powerhead
(18)GASKET SET, Powerhead
(18) -
-27-8M0065497 GASKET SET, Powerhead
(15)GASKET SET, Powerhead
(15)
