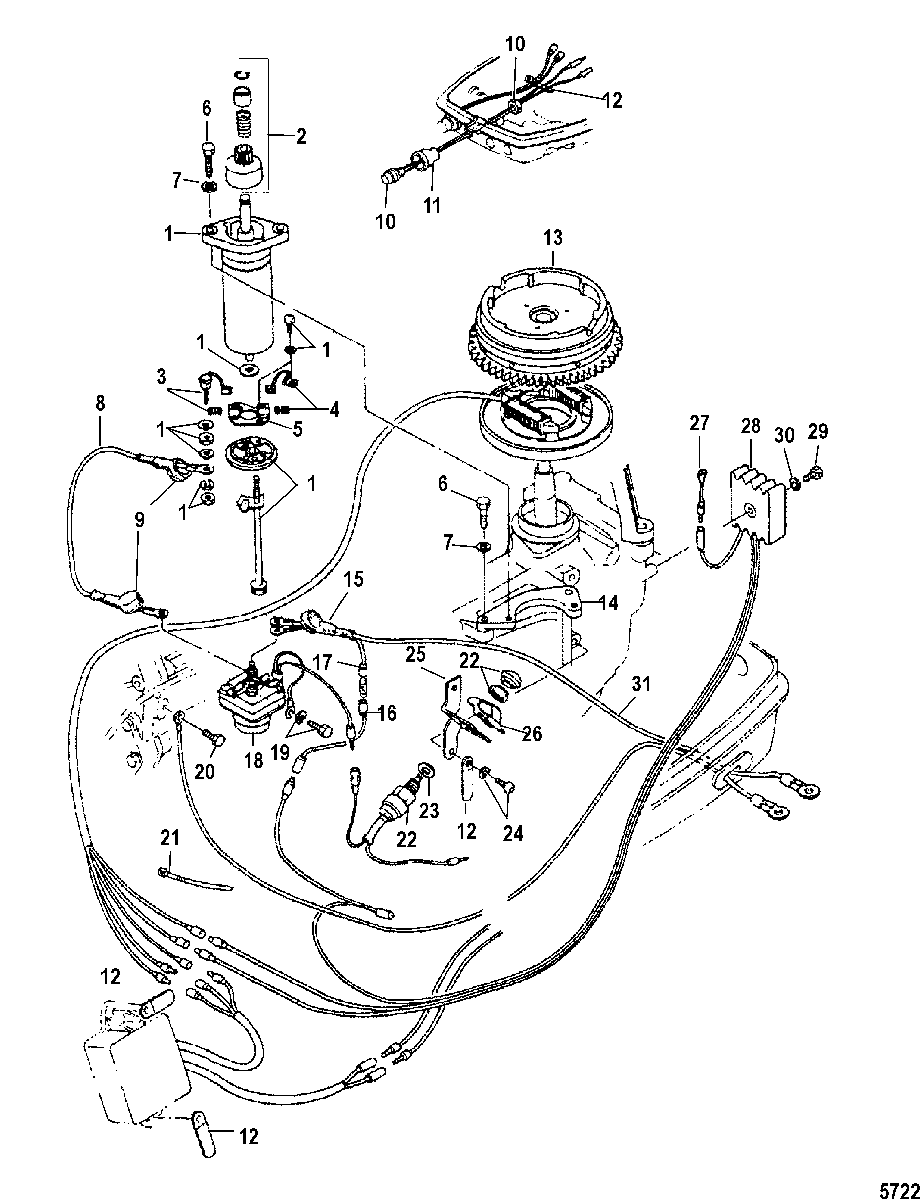

Electric Start Components для Mariner - 15 (2 CYL.) (International) 0N001590 THRU 0N055284
-
№АртикулНазвание
-
-8M0138986 STARTER MOTOR KIT, ElectricSTARTER MOTOR KIT, Electric
-
150-803835T01 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2803836 PINIONPINION
-
3803837 BRUSH SET (Positive)BRUSH SET (Positive)
-
48038371 BRUSH SET (Negative)BRUSH SET (Negative)
-
5803838 HOLDER, BrushHOLDER, Brush
-
610-161267 BOLTBOLT
-
713-17025 LOCKWASHERLOCKWASHER
-
884-8M0069818 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
985-8538161 CAPCAP
-
1087-853820A1 MAIN SWITCHMAIN SWITCH
-
11853821 PROTECTORPROTECTOR
-
1254-803563005 CLAMPCLAMP
-
13200-8M0119848 FLYWHEEL (Wiring Gear)FLYWHEEL (Wiring Gear)
-
14803839 BRACKETBRACKET
-
1585-853816 CAPCAP
-
1684-853813A1 WIRE ASSEMBLY, FuseWIRE ASSEMBLY, Fuse
-
1788-853814 FUSEFUSE
-
1889-853809T SOLENOID, StarterSOLENOID, Starter
-
1910-162235 BOLTBOLT
-
2010-16223 BOLT, (M6 x 14)BOLT, (M6 x 14)
-
2156762 CLAMP, PlasticCLAMP, Plastic
-
2287-8M0127937 SWITCH, NeutralSWITCH, Neutral
-
2323-803842 SPACERSPACER
-
2410-85554411 SCREWSCREW
-
258037151 BRACKETBRACKET
-
26803841 ACTUATORACTUATOR
-
2784-803820 GROUND WIREGROUND WIRE
-
288538116 RECTIFIERRECTIFIER
-
2910-16123 SCREW, (25 mm)SCREW, (25 mm)
-
3013-16079 LOCKWASHERLOCKWASHER
-
3184-8M0069793 WIRE, BatteryWIRE, Battery
