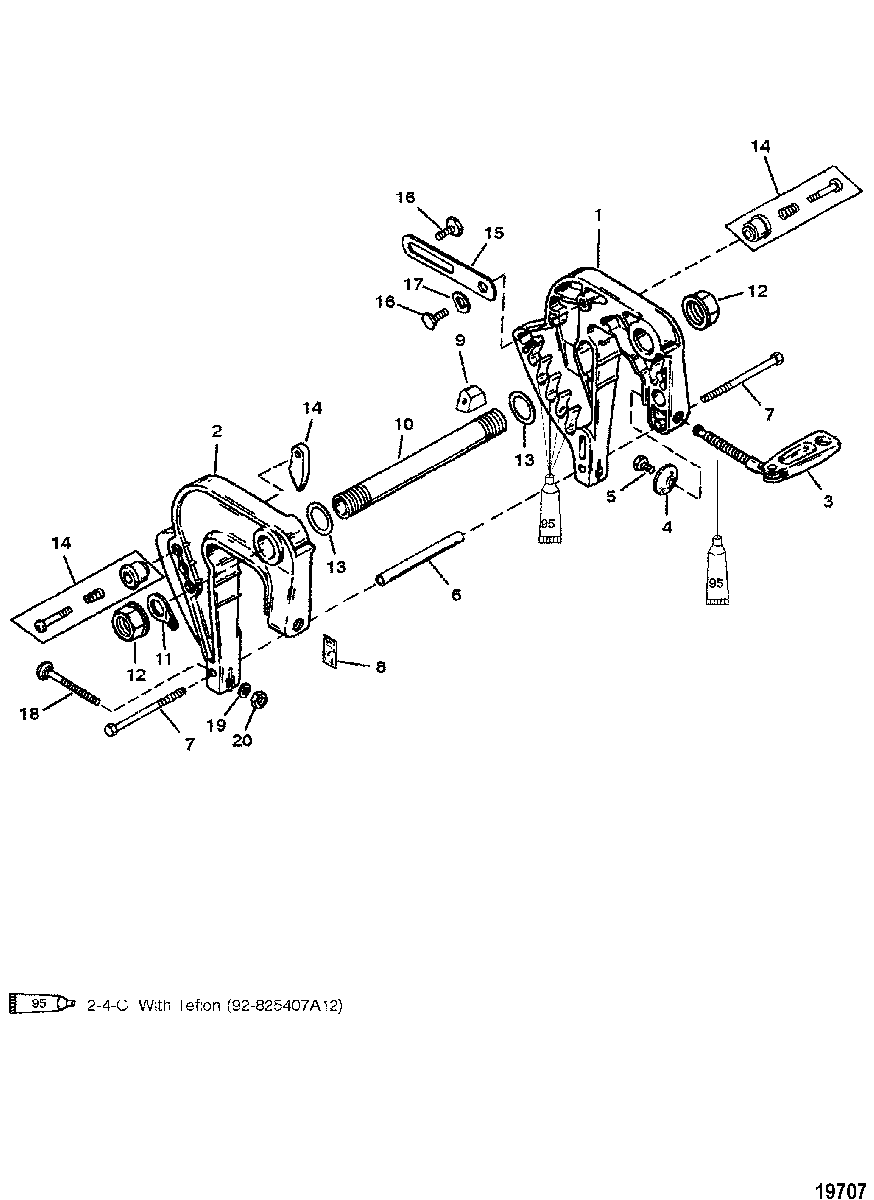

Clamp Bracket для Mariner - 15 MARATHON 9927000 THRU 0P016999
-
№АртикулНазвание
-
13404-8894A8 CLAMP BRACKET ASSEMBLY
(Port-Black) SN# USA-0G031927/BEL-9803667 & UpCLAMP BRACKET ASSEMBLY
(Port-Black) SN# USA-0G031927/BEL-9803667 & Up -
13404-8894A8 CLAMP BRACKET ASSEMBLY (Port-Gray)
SN# USA-0G031927/BEL-9803667 & UpCLAMP BRACKET ASSEMBLY (Port-Gray)
SN# USA-0G031927/BEL-9803667 & Up -
23403-8892A6 CLAMP BRACKET ASSEMBLY
(Starboard-Black) SN# USA-0G031927/BEL-9803667 & UpCLAMP BRACKET ASSEMBLY
(Starboard-Black) SN# USA-0G031927/BEL-9803667 & Up -
23403-8892A6 CLAMP BRACKET ASSEMBLY
(Starboard-Gray) SN# USA-0G031927/BEL-9803667 & UpCLAMP BRACKET ASSEMBLY
(Starboard-Gray) SN# USA-0G031927/BEL-9803667 & Up -
1/23404-8894A11 CLAMP BRACKET ASSEMBLY
(Port/Starboard-Black) SN# USA-0G031926/BEL-9803666 & BelowCLAMP BRACKET ASSEMBLY
(Port/Starboard-Black) SN# USA-0G031926/BEL-9803666 & Below -
1/23404-8894A11 CLAMP BRACKET ASSEMBLY
(Port/Starboard-Gray) SN# USA-0G031926/BEL-9803666 & BelowCLAMP BRACKET ASSEMBLY
(Port/Starboard-Gray) SN# USA-0G031926/BEL-9803666 & Below -
310-92767A3 THUMB SCREW ASSEMBLY, (16 mm)THUMB SCREW ASSEMBLY, (16 mm)
-
412-818884 WASHERWASHER
-
510-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
623-8M0084719 SPACERSPACER
-
710-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
837-12869 DECAL, Tilt PositionDECAL, Tilt Position
-
9814427 SHUTTLESHUTTLE
-
1042078 TILT TUBETILT TUBE
-
1154-8M0085928 CLIPCLIP
-
1211-93164 NUT, (.875)NUT, (.875)
-
1312-71421 WASHER, NylonWASHER, Nylon
-
1442390A1 LEVER ASSEMBLY, Tilt ReturnLEVER ASSEMBLY, Tilt Return
-
1590901 STRAP, PORT SIDESTRAP, PORT SIDE
-
1610-42498 SCREW, (M6 x 1.0)SCREW, (M6 x 1.0)
-
1713-31030 WAVE WASHERWAVE WASHER
-
1810-43216 BOLT, (.250-20 x 3.50)BOLT, (.250-20 x 3.50)
-
1912-67983 WASHERWASHER
-
2011-8267118 NUT, (.250-20)NUT, (.250-20)
