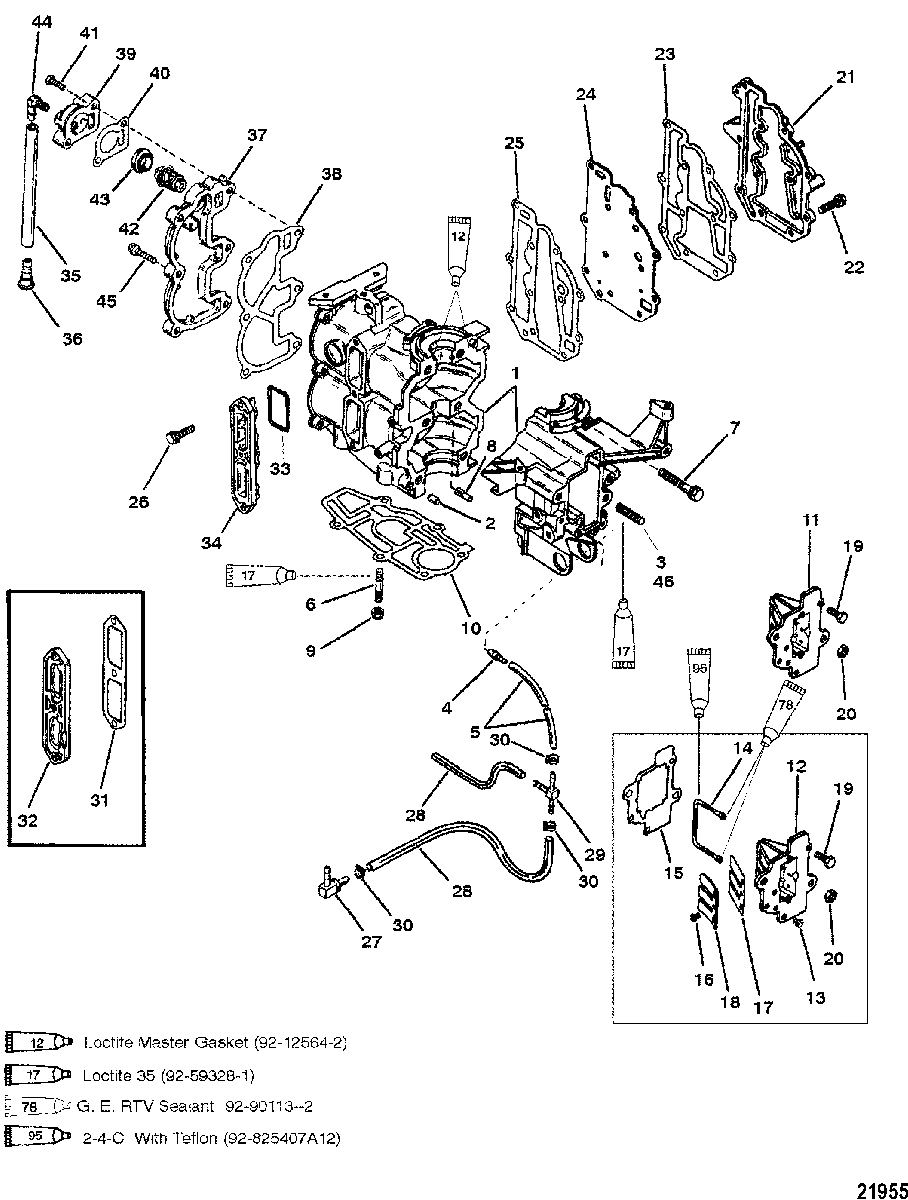

Cylinder Block and Covers для Mariner - 15 MARATHON 9927000 THRU 0P016999

№

Артикул

Название
1

881-9727T2 CYLINDER BLOCK
SN# 9831799 & Below

CYLINDER BLOCK
SN# 9831799 & Below

0 ₽
1

881-9727T12 CYLINDER BLOCK
SN# usa-0G112450/BEL-9831800 & Up

CYLINDER BLOCK
SN# usa-0G112450/BEL-9831800 & Up

64 000 ₽
2

17-85171 PIN, Dowel

PIN, Dowel

280 ₽
3

16-424632 STUD, (M8 x 37.1)

STUD, (M8 x 37.1)

880 ₽
4

21-426982 CHECK VALVE

CHECK VALVE

1 340 ₽
5

32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches)

TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches)

4 230 ₽
6

16-8161949 STUD

STUD

810 ₽
7

10-421251 SCREW, (M8 x 55)

SCREW, (M8 x 55)

340 ₽
8

17-17866 PIN, Groove

PIN, Groove

270 ₽
9

11-401386 NUT, (M6)

NUT, (M6)

330 ₽
10

27-191861 GASKET, Powerhead

GASKET, Powerhead

1 590 ₽
11

828435A3 REED BLOCK
SN# USA-0G438000/BEL-9927000 & Up

REED BLOCK
SN# USA-0G438000/BEL-9927000 & Up

13 570 ₽
11

828435A3 REED BLOCK
(Rubber Coated (1) Piece Design) SN# USA-0G437999/BEL-9926999 & Below

REED BLOCK
(Rubber Coated (1) Piece Design) SN# USA-0G437999/BEL-9926999 & Below

13 570 ₽
12

828435A3 REED BLOCK ASSEMBLY
(Replaced by (1) Piece Design Reed Block)

REED BLOCK ASSEMBLY
(Replaced by (1) Piece Design Reed Block)

13 570 ₽
13

21-42657A3 CHECK VALVE
(Replaced by (1) Piece Design Reed Block)

CHECK VALVE
(Replaced by (1) Piece Design Reed Block)

460 ₽
14

26-42137 SEAL
(Replaced by (1) Piece Design Reed Block)

SEAL
(Replaced by (1) Piece Design Reed Block)

210 ₽
15

27-195982 GASKET
(Replaced by (1) Piece Design Reed Block)

GASKET
(Replaced by (1) Piece Design Reed Block)

660 ₽
16

10-4005764 SCREW, (M3.5 x 8)
(Replaced by (1) Piece Design Reed Block)

SCREW, (M3.5 x 8)
(Replaced by (1) Piece Design Reed Block)

0 ₽
17

34-825141 REED
(Replaced by (1) Piece Design Reed Block)

REED
(Replaced by (1) Piece Design Reed Block)

720 ₽
18

828435A3 STOP, Reed
(Replaced by (1) Piece Design Reed Block)

STOP, Reed
(Replaced by (1) Piece Design Reed Block)

13 570 ₽
19

10-4000171 SCREW, (M6 x 16)

SCREW, (M6 x 16)

100 ₽
20

11-400213 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

180 ₽
21

8M0048005 COVER

COVER

6 030 ₽
22

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
23

27-19185 GASKET

GASKET

590 ₽
24

42365 PLATE, Baffle

PLATE, Baffle

3 410 ₽
25

27-19184 GASKET

GASKET

590 ₽
26

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
27

22-56759 FITTING, Barbed

FITTING, Barbed

710 ₽
28

32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5.25 and 7 Inches)

TUBING, (20.00 Feet Bulk) (Cut to 5.25 and 7 Inches)

4 230 ₽
29

22-59169003 FITTING

FITTING

870 ₽
30

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
31

27-192031 GASKET
SN# 9831799 & Below

GASKET
SN# 9831799 & Below

430 ₽
32

19107F1 COVER, Intake
SN# 9831799 & Below

COVER, Intake
SN# 9831799 & Below

5 120 ₽
33

25-891935 O-RING
SN# USA-0G112450/BEL-9831800 & Up

O-RING
SN# USA-0G112450/BEL-9831800 & Up

190 ₽
34

8M0036812 COVER, Intake
SN# USA-0G112450/BEL-9831800 & Up

COVER, Intake
SN# USA-0G112450/BEL-9831800 & Up

1 330 ₽
35

32-8M0108355 HOSE, (57.00 Inches Bulk)

HOSE, (57.00 Inches Bulk)

5 260 ₽
36

22-94848 FITTING, BOTTOM COWL

FITTING, BOTTOM COWL

320 ₽
37

1033-8906A02 COVER ASSEMBLY

COVER ASSEMBLY

23 220 ₽
38

27-19207002 GASKET

GASKET

1 270 ₽
39

8M0039352 COVER

COVER

18 660 ₽
40

27-19205002 GASKET

GASKET

390 ₽
41

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
42

14586 THERMOSTAT (120 DEGREES)

THERMOSTAT (120 DEGREES)

6 280 ₽
43

27-62386001 GASKET

GASKET

350 ₽
44

22-291112 CONNECTOR (STRAIGHT)

CONNECTOR (STRAIGHT)

630 ₽
45

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
46

16-429173 STUD
(NORWAY MODELS)

STUD
(NORWAY MODELS)

740 ₽
-

27-42364A92 GASKET SET, Engine

GASKET SET, Engine

6 510 ₽
-

19072T88 POWERHEAD ASSEMBLY, Complete
SN# 9831799 & Below

POWERHEAD ASSEMBLY, Complete
SN# 9831799 & Below

210 080 ₽
-

19072T97 POWERHEAD ASSEMBLY
SN# USA-0G112450/BEL-9831800 & Up

POWERHEAD ASSEMBLY
SN# USA-0G112450/BEL-9831800 & Up

404 050 ₽
