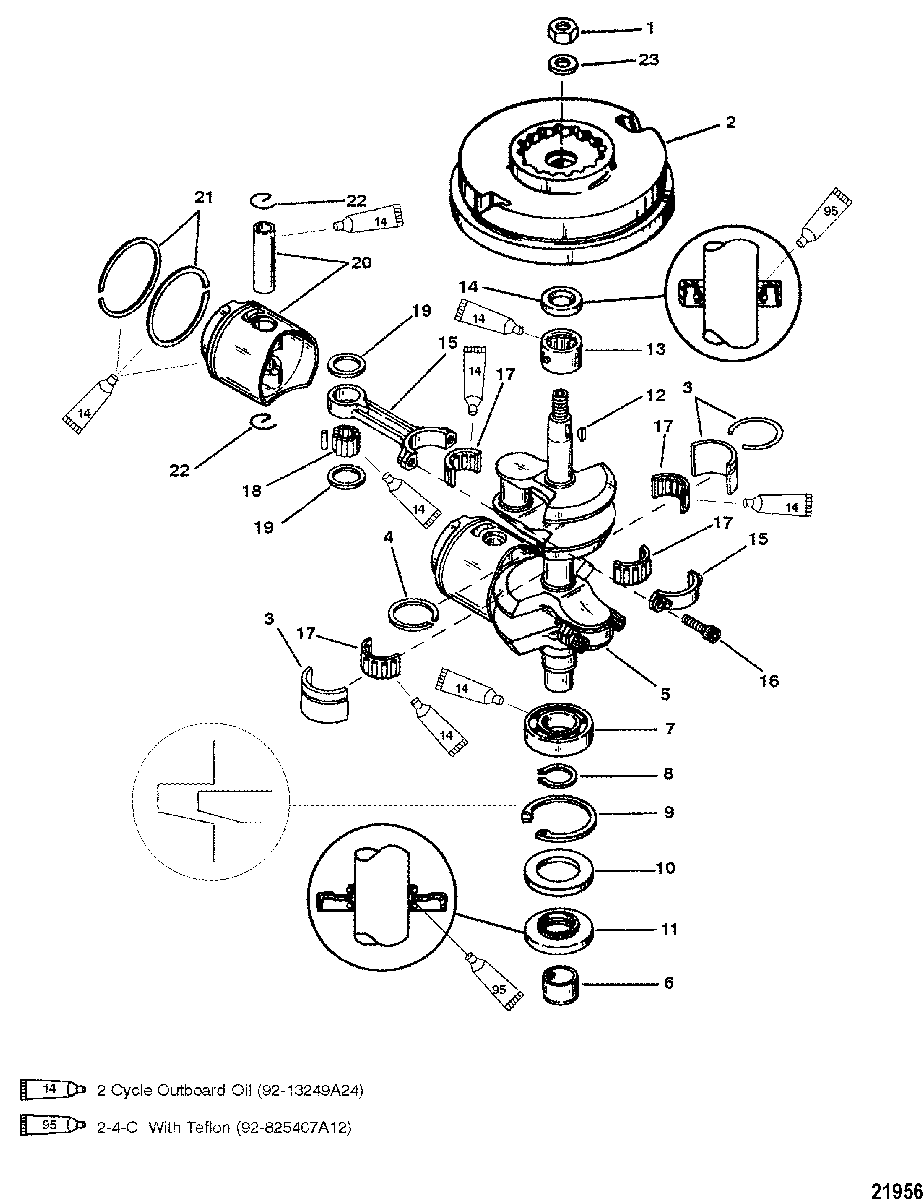

Crankshaft, Pistons and Flywheel для Mariner - 15 MARATHON 9927000 THRU 0P016999

№

Артикул

Название
1

11-818591 NUT, (M14)

NUT, (M14)

370 ₽
2

260-859231T19 FLYWHEEL ASSEMBLY

FLYWHEEL ASSEMBLY

25 550 ₽
3

17794A1 BEARING

BEARING

5 050 ₽
4

26-818901 SEAL

SEAL

690 ₽
5

400-8M0083309 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

112 530 ₽
6

818630A1 SLEEVE

SLEEVE

1 170 ₽
7

30-41341 BEARING, Ball, Lower

BEARING, Ball, Lower

3 740 ₽
8

53-20940 RING, Snap (SMALL) (USE WHERE APPLICABLE)

RING, Snap (SMALL) (USE WHERE APPLICABLE)

60 ₽
9

53-42132 RING, Retaining

RING, Retaining

210 ₽
10

12-13031 WASHER

WASHER

170 ₽
11

26-125661 SEAL, Oil - Lower, LOWER

SEAL, Oil - Lower, LOWER

3 600 ₽
12

28-20094 KEY, Woodruff

KEY, Woodruff

140 ₽
13

31-878158 BEARING, Roller

BEARING, Roller

3 780 ₽
14

26-125671 SEAL, Oil - Upper, UPPER

SEAL, Oil - Upper, UPPER

3 600 ₽
15

637-8477A2 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

22 440 ₽
16

10-823460 SCREW, (M5 x 16)

SCREW, (M5 x 16)

140 ₽
17

31-42076A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

4 150 ₽
18

29-42186 BEARING, Needle

BEARING, Needle

40 ₽
19

12-8M0012297 BEARING, Thrust

BEARING, Thrust

490 ₽
20

784-9747T2 PISTON ASSEMBLY
(STANDARD)

PISTON ASSEMBLY
(STANDARD)

7 630 ₽
20

784-9747A4 PISTON ASSEMBLY
(.015 O.S.)

PISTON ASSEMBLY
(.015 O.S.)

10 350 ₽
21

39-18212A4 RING SET, Piston
(STANDARD)

RING SET, Piston
(STANDARD)

4 130 ₽
21

39-18212A1 RING SET, Piston
(.015 O.S.)

RING SET, Piston
(.015 O.S.)

7 120 ₽
22

40-422021 LOCK RING

LOCK RING

140 ₽
23

12-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)

WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)

120 ₽
-

19072T88 POWERHEAD ASSEMBLY, Complete
SN# 9831799 & Below

POWERHEAD ASSEMBLY, Complete
SN# 9831799 & Below

210 080 ₽
-

19072T97 POWERHEAD ASSEMBLY
SN# USA-0G112450/BEL-9831800 & Up

POWERHEAD ASSEMBLY
SN# USA-0G112450/BEL-9831800 & Up

404 050 ₽
