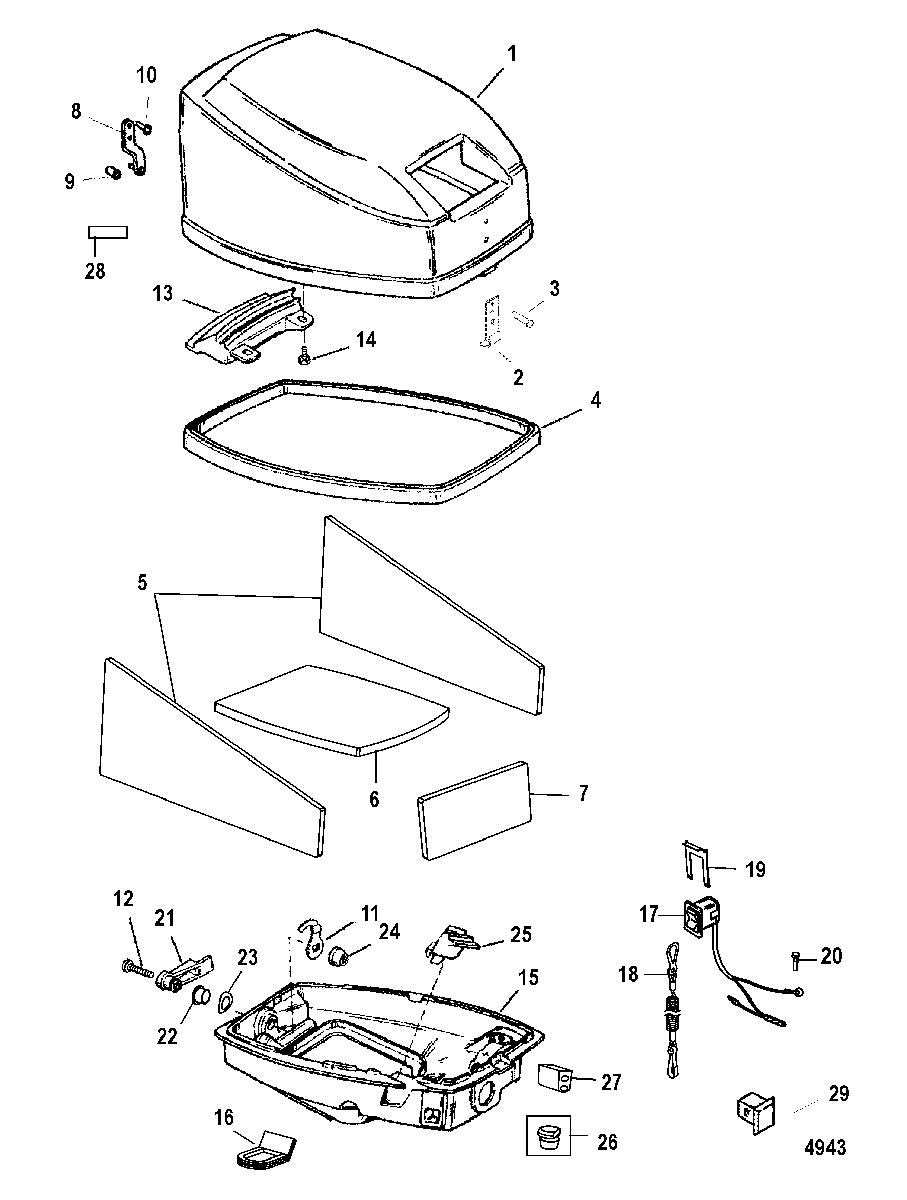

Cowls для Mariner - 15 0P017000 THRU 0P325499
-
№АртикулНазвание
-
12191-9420T10 TOP COWL ASSEMBLY
(Black)TOP COWL ASSEMBLY
(Black) -
12191-8M0094069 TOP COWL ASSEMBLY
(Silver)TOP COWL ASSEMBLY
(Silver) -
2NSS NOT SOLD SEPARATE (Latch)NOT SOLD SEPARATE (Latch)
-
3NSS NOT SOLD SEPARATE (Rivet)NOT SOLD SEPARATE (Rivet)
-
48M0043151 SEALSEAL
-
513691A02 SOUND BLANKET KITSOUND BLANKET KIT
-
6NSS NOT SOLD SEPARATE (Sound Blanket-Top)NOT SOLD SEPARATE (Sound Blanket-Top)
-
7NSS NOT SOLD SEPARATE (Sound Blanket-Front)NOT SOLD SEPARATE (Sound Blanket-Front)
-
8817104A3 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
9NSS NOT SOLD SEPARATE (Roller)NOT SOLD SEPARATE (Roller)
-
10NSS NOT SOLD SEPARATE (Rivet)NOT SOLD SEPARATE (Rivet)
-
11180402 LATCH HOOKLATCH HOOK
-
1210-852530 SCREW, (.250-20 x 1.50)SCREW, (.250-20 x 1.50)
-
1312873T SHIELDSHIELD
-
1410-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
152192-9204A1 BOTTOM COWL
(Black)BOTTOM COWL
(Black) -
1615061001 PLUGPLUG
-
1787-826677A3 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
188M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
198M0032846 RETAINER, BrassRETAINER, Brass
-
2010-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2144461A1 LEVER, Cowl LatchLEVER, Cowl Latch
-
2223-76470 BUSHINGBUSHING
-
2313-69708 WAVE WASHERWAVE WASHER
-
2411394 SPACERSPACER
-
2512154 PLUG
(Manual Handle)PLUG
(Manual Handle) -
25121532 GROMMET, Bottom Cowl
(Electric Handle/Sail Power)GROMMET, Bottom Cowl
(Electric Handle/Sail Power) -
2625-19564001 GROMMET
(Remote Control)GROMMET
(Remote Control) -
2714440 PLUG
(Remote Control)PLUG
(Remote Control) -
2837-856985A3 DECAL, EPA Label Information
(6/8)(1999)DECAL, EPA Label Information
(6/8)(1999) -
2837-856985A4 DECAL, EPA Label Information
(9.9/15)(1999)DECAL, EPA Label Information
(9.9/15)(1999) -
2837-804659A00 DECAL, EPA Label Information
(6/8)(2000)DECAL, EPA Label Information
(6/8)(2000) -
2837-804662A00 DECAL, EPA Label Information
(9.9/15)(2000)DECAL, EPA Label Information
(9.9/15)(2000) -
2837-804659A01 DECAL, EPA Label Information
(6/8)(2001)DECAL, EPA Label Information
(6/8)(2001) -
2837-804662A01 DECAL, EPA Label Information
(9.9/15)(2001)DECAL, EPA Label Information
(9.9/15)(2001) -
2837-804659A02 DECAL, EPA Label Information
(6/8)(2002)DECAL, EPA Label Information
(6/8)(2002) -
2837-804662A02 DECAL, EPA Label Information
(9.9/15)(2002)DECAL, EPA Label Information
(9.9/15)(2002) -
2837-804659A03 DECAL, EPA Label Information
(6/8)(2003)DECAL, EPA Label Information
(6/8)(2003) -
2837-804662A03 DECAL, EPA Label Information
(9.9/15)(2003)DECAL, EPA Label Information
(9.9/15)(2003) -
2837-804659A04 DECAL, EPA Label Information
(6/8)(2004)DECAL, EPA Label Information
(6/8)(2004) -
2837-804662A04 DECAL, EPA Label Information
(9.9/15)(2004)DECAL, EPA Label Information
(9.9/15)(2004) -
2990-134254 DECAL, Starting Procedures (Service Item)DECAL, Starting Procedures (Service Item)
-
3019-17230 PLUGPLUG
