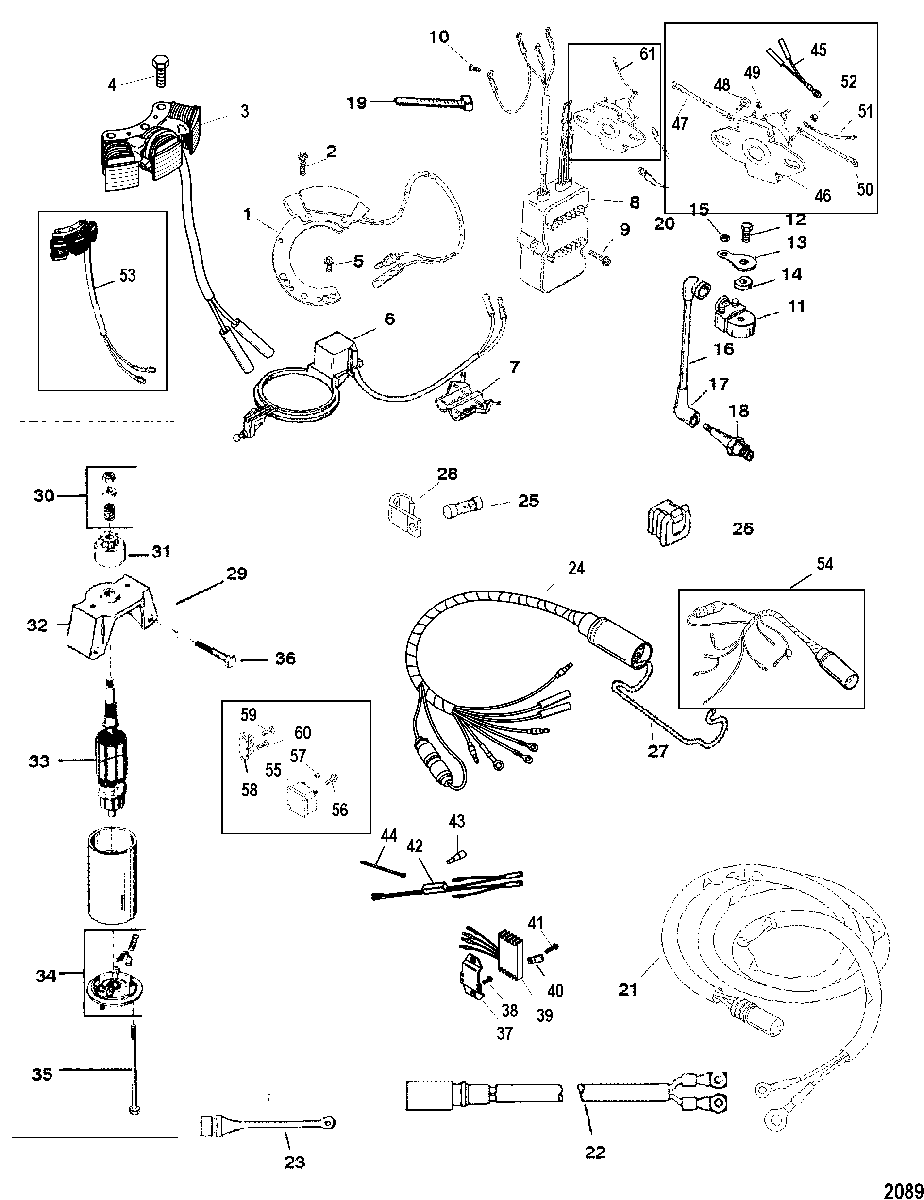

Electrical Components для Mariner - 15 0P017000 THRU 0P325499

№

Артикул

Название
1

855721T8 STATOR ASSEMBLY

STATOR ASSEMBLY

9 710 ₽
2

10-4013930 SCREW, (M5 x 30)

SCREW, (M5 x 30)

190 ₽
3

86704T11 STATOR AUXILIARY
(Electric/Alternator Models)(Design II)

STATOR AUXILIARY
(Electric/Alternator Models)(Design II)

18 570 ₽
4

10-4013930 SCREW, (M5 x 30)
(Electric/Alternator Models)

SCREW, (M5 x 30)
(Electric/Alternator Models)

190 ₽
5

10-4013910 SCREW, (M5 x 10) (Manual)

SCREW, (M5 x 10) (Manual)

130 ₽
6

98450A10 TRIGGER ASSEMBLY

TRIGGER ASSEMBLY

13 280 ₽
7

11100 CLIP

CLIP

210 ₽
8

855713A4 SWITCHBOX ASSEMBLY

SWITCHBOX ASSEMBLY

31 460 ₽
9

10-40019111 SCREW, (M5 x 35)

SCREW, (M5 x 35)

100 ₽
10

10-62568 SCREW, (#10-16 x .375)

SCREW, (#10-16 x .375)

70 ₽
11

339-832757A4 COIL KIT

COIL KIT

7 450 ₽
12

10-40112 SCREW, (M6 x 45)

SCREW, (M6 x 45)

210 ₽
13

88173 TAB WASHER

TAB WASHER

130 ₽
14

23-88171 BUSHING

BUSHING

170 ₽
15

11-45076 NUT, (#10-32) Brass

NUT, (#10-32) Brass

120 ₽
16

84-813715A2 CABLE SET, High Tension (5 and 8.25 Inch)

CABLE SET, High Tension (5 and 8.25 Inch)

1 590 ₽
17

85-63709A1 BOOT/TERMINAL KIT

BOOT/TERMINAL KIT

550 ₽
18

33-816737Q SPARK PLUG (NGK#BP8H-N-10)
(6/8)

SPARK PLUG (NGK#BP8H-N-10)
(6/8)

510 ₽
18

33-816837Q SPARK PLUG (NGK#BPZ-8H-N-10)
(6/8)

SPARK PLUG (NGK#BPZ-8H-N-10)
(6/8)

1 810 ₽
18

33-8M0114746 SPARK PLUG (NGK#BP8HS-15)
(9.9/15)

SPARK PLUG (NGK#BP8HS-15)
(9.9/15)

550 ₽
18

33-14814568 SPARK PLUG (NGK#BPZ8HS-15)
(9.9/15)

SPARK PLUG (NGK#BPZ8HS-15)
(9.9/15)

1 550 ₽
19

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
19

69355 TIE STRAP, (5.50 Inches)

TIE STRAP, (5.50 Inches)

30 ₽
20

84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black

CABLE ASSEMBLY, (4.00 Inches) Black

580 ₽
21

84-65017A10 HARNESS ASSEMBLY, Battery End (62 Inch - Black/Red)
(Sailpower/Sailmate)

HARNESS ASSEMBLY, Battery End (62 Inch - Black/Red)
(Sailpower/Sailmate)

4 210 ₽
22

84-74725A2 HARNESS ASSEMBLY (20 Inch - Black/Red)
(Sailpower/Sailmate)

HARNESS ASSEMBLY (20 Inch - Black/Red)
(Sailpower/Sailmate)

3 900 ₽
23

71663 PLUG
(Sailpower/Sailmate)

PLUG
(Sailpower/Sailmate)

440 ₽
24

84-12334A4 HARNESS ASSEMBLY, Engine Wiring
(Remote Control)(Design II)

HARNESS ASSEMBLY, Engine Wiring
(Remote Control)(Design II)

8 340 ₽
25

88-79091 FUSE, 20 Ampere
(Remote Control)

FUSE, 20 Ampere
(Remote Control)

360 ₽
26

12152 RETAINER
(Remote Control)

RETAINER
(Remote Control)

580 ₽
27

92753 RETAINER
(Remote Control)

RETAINER
(Remote Control)

450 ₽
28

54-55098 J CLIP
(Remote Control)

J CLIP
(Remote Control)

330 ₽
29

50-8M0033984 STARTER MOTOR ASSEMBLY

STARTER MOTOR ASSEMBLY

29 960 ₽
30

96561 DRIVE KIT

DRIVE KIT

2 160 ₽
31

96562 DRIVE

DRIVE

11 590 ₽
32

96563T END CAP

END CAP

5 980 ₽
33

96565 ARMATURE

ARMATURE

14 300 ₽
34

96564T END CAP

END CAP

8 450 ₽
35

10-96566 THRU BOLT

THRU BOLT

1 090 ₽
36

10-421251 SCREW, (M8 x 55)

SCREW, (M8 x 55)

340 ₽
37

883073 PLATE, Mounting
(Electric)(Design II)

PLATE, Mounting
(Electric)(Design II)

2 980 ₽
38

10-878608 SCREW, (#10-16 x .500)
(Electric)(Design II)

SCREW, (#10-16 x .500)
(Electric)(Design II)

120 ₽
39

853358T1 RECTIFIER
(Electric)(Design II)

RECTIFIER
(Electric)(Design II)

12 920 ₽
40

54-54457 J CLIP

J CLIP

280 ₽
41

10-82129130 SCREW, (M6 x 30)
(Electric)(Design II)

SCREW, (M6 x 30)
(Electric)(Design II)

290 ₽
42

17461T11 TACHOMETER ADAPTOR MODULE

TACHOMETER ADAPTOR MODULE

6 050 ₽
43

13541 PLUG, Male

PLUG, Male

230 ₽
44

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
45

84-11149A54 HARNESS ASSEMBLY, Adaptor
(Electric)(Design II)

HARNESS ASSEMBLY, Adaptor
(Electric)(Design II)

730 ₽
46

89-850189T SOLENOID, Starter
(Electric)

SOLENOID, Starter
(Electric)

4 900 ₽
47

84-88439A28 CABLE ASSEMBLY, Battery - Black (Negative)
(Electric)

CABLE ASSEMBLY, Battery - Black (Negative)
(Electric)

3 120 ₽
48

10-4000328 SCREW, (M6 x 16)
(Electric)

SCREW, (M6 x 16)
(Electric)

270 ₽
49

11-45076 NUT, (#10-32) Brass
(Electric)

NUT, (#10-32) Brass
(Electric)

120 ₽
50

84-88439A27 CABLE ASSEMBLY, Red - Battery (Positive)
(Electric)

CABLE ASSEMBLY, Red - Battery (Positive)
(Electric)

3 950 ₽
51

84-88809A5 WIRE ASSEMBLY (Yellow)
(Electric)

WIRE ASSEMBLY (Yellow)
(Electric)

760 ₽
52

11-64015 NUT, (.250-20)
(Electric)

NUT, (.250-20)
(Electric)

150 ₽
53

86704A10 STATOR, Auxiliary
(Electric/Alternator Models)(Design I)

STATOR, Auxiliary
(Electric/Alternator Models)(Design I)

10 070 ₽
54

84-12334A2 HARNESS ASSEMBLY, Engine Wiring
(Remote Control)(Design I)

HARNESS ASSEMBLY, Engine Wiring
(Remote Control)(Design I)

18 300 ₽
55

8M0058226 RECTIFIER
(Electric)(Design I)

RECTIFIER
(Electric)(Design I)

8 500 ₽
56

10-48409 SCREW, (#10-16 x .625) Stainless Steel
(Electric)(Design I)

SCREW, (#10-16 x .625) Stainless Steel
(Electric)(Design I)

140 ₽
57

11-45076 NUT, (#10-32) Brass
(Electric)(Design I)

NUT, (#10-32) Brass
(Electric)(Design I)

120 ₽
58

86-638131 TERMINAL BLOCK
(Design I)

TERMINAL BLOCK
(Design I)

0 ₽
59

10-48409 SCREW, (#10-16 x .625) Stainless Steel
(Design I)

SCREW, (#10-16 x .625) Stainless Steel
(Design I)

140 ₽
60

10-62568 SCREW, (#10-16 x .375)
(Design I)

SCREW, (#10-16 x .375)
(Design I)

70 ₽
61

84-79139A20 CABLE ASSEMBLY (Red)
(15 Electric Handle)(Design I)

CABLE ASSEMBLY (Red)
(15 Electric Handle)(Design I)

830 ₽
62

13540 CAP, Female

CAP, Female

260 ₽
