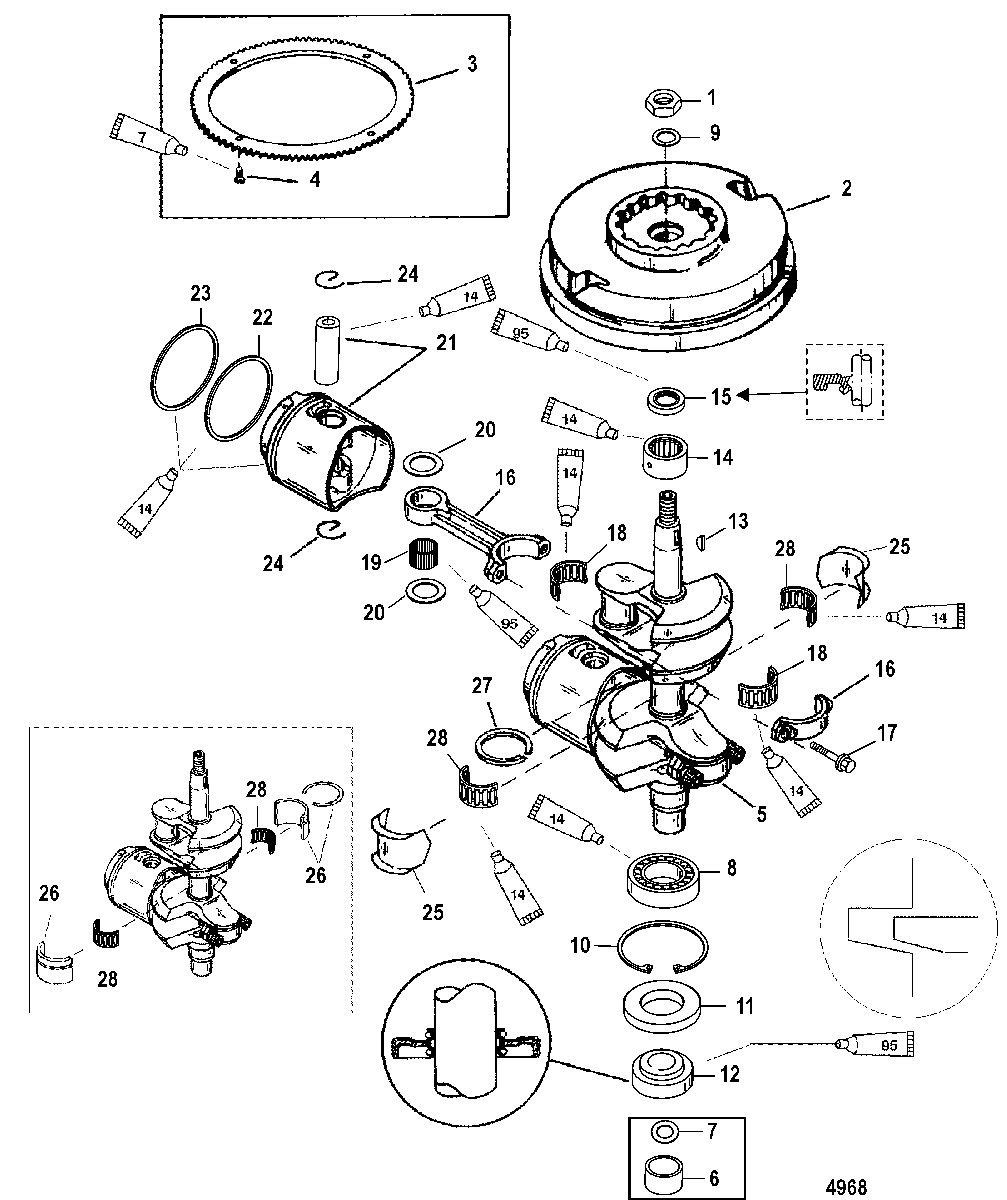

Crankshaft, Pistons and Flywheel для Mariner - 15 0P017000 THRU 0P325499

№

Артикул

Название
1

11-818591 NUT, (M14)

NUT, (M14)

370 ₽
2

260-859231T18 FLYWHEEL ASSEMBLY

FLYWHEEL ASSEMBLY

27 250 ₽
3

43-99301 RING GEAR
(Electric)

RING GEAR
(Electric)

23 440 ₽
4

10-88190313 SCREW, (M5 x 13)
(Electric)

SCREW, (M5 x 13)
(Electric)

140 ₽
5

400-8M0083309 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

112 530 ₽
6

818630A1 SLEEVE

SLEEVE

1 170 ₽
7

NSS NOT SOLD SEPARATE (O Ring)

NOT SOLD SEPARATE (O Ring)

0 ₽
8

30-41341 BEARING, Ball

BEARING, Ball

3 740 ₽
9

12-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)

WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)

120 ₽
10

53-42132 RING, Retaining

RING, Retaining

210 ₽
11

12-13031 WASHER

WASHER

170 ₽
12

26-125661 SEAL, Oil - Lower

SEAL, Oil - Lower

3 600 ₽
13

28-20094 KEY, Woodruff

KEY, Woodruff

140 ₽
14

31-878158 BEARING, Roller

BEARING, Roller

3 780 ₽
15

26-125671 SEAL, Oil - Upper

SEAL, Oil - Upper

3 600 ₽
16

637-8477A2 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

22 440 ₽
17

10-823460 SCREW, (M5 x 16)

SCREW, (M5 x 16)

140 ₽
18

31-42076A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

4 150 ₽
19

29-42186 BEARING, Needle

BEARING, Needle

40 ₽
20

12-8M0012297 BEARING, Thrust

BEARING, Thrust

490 ₽
21

773-9756T2 PISTON ASSEMBLY
(6/8)

PISTON ASSEMBLY
(6/8)

20 810 ₽
21

784-9747T2 PISTON ASSEMBLY
(9.9/15)(Standard)

PISTON ASSEMBLY
(9.9/15)(Standard)

7 630 ₽
21

784-9747A4 PISTON ASSEMBLY
(9.9/15)(.015)(Over Size)

PISTON ASSEMBLY
(9.9/15)(.015)(Over Size)

10 350 ₽
22

39-18514A4 RING SET, Piston
(6/8)

RING SET, Piston
(6/8)

14 240 ₽
22

39-18212A4 RING SET, Piston
(9.9/15)(Standard)

RING SET, Piston
(9.9/15)(Standard)

4 130 ₽
22

39-18212A1 RING SET, Piston
(9.9/15)(.015)(Over Size)

RING SET, Piston
(9.9/15)(.015)(Over Size)

7 120 ₽
23

NSS NOT SOLD SEPARATE (Piston Ring-Top)
(6/8)

NOT SOLD SEPARATE (Piston Ring-Top)
(6/8)

0 ₽
23

NSS NOT SOLD SEPARATE (Piston Ring-Top)
(9.9/15)(Standard)

NOT SOLD SEPARATE (Piston Ring-Top)
(9.9/15)(Standard)

0 ₽
24

40-422021 LOCK RING

LOCK RING

140 ₽
25

41373A1 BEARING KIT, Center Main
(6/8)

BEARING KIT, Center Main
(6/8)

5 040 ₽
26

17794A1 BEARING
(9.9/15)

BEARING
(9.9/15)

5 050 ₽
27

26-818901 SEAL

SEAL

690 ₽
28

31-42076A1 BEARING ASSEMBLY, Roller
(9.9/15)

BEARING ASSEMBLY, Roller
(9.9/15)

4 150 ₽
-

12893T97 POWERHEAD ASSEMBLY
(6)

POWERHEAD ASSEMBLY
(6)

214 250 ₽
-

811686T97 POWERHEAD ASSEMBLY
(8)

POWERHEAD ASSEMBLY
(8)

145 480 ₽
-

19072T97 POWERHEAD ASSEMBLY
(9.9/15)

POWERHEAD ASSEMBLY
(9.9/15)

404 050 ₽
