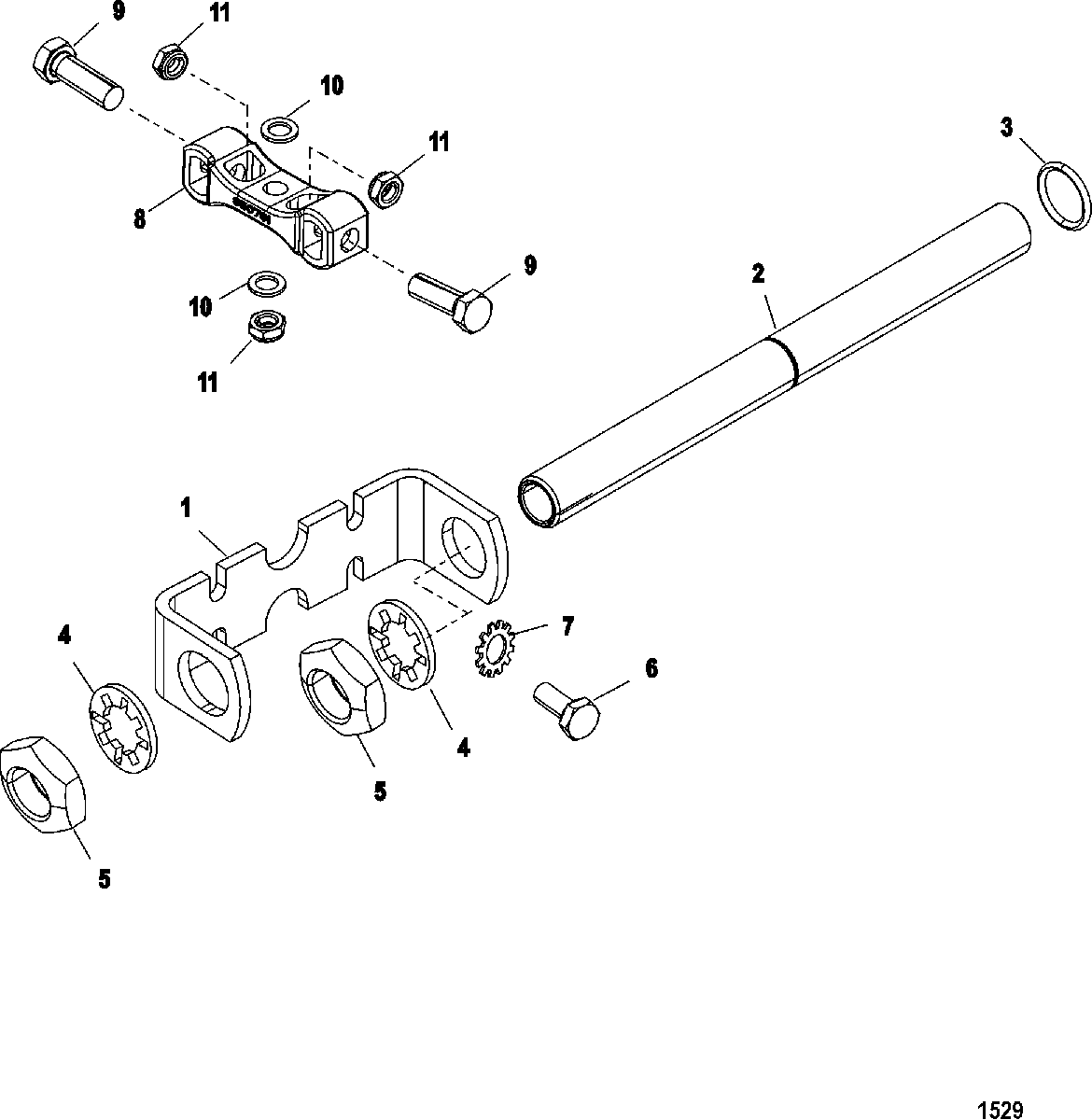

Dual Cable Attaching Kit для Mariner - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
-92876A8 ATTACHING KIT, SteeringATTACHING KIT, Steering
-
141055A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2715651 TUBE, Steering CableTUBE, Steering Cable
-
325-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
413-821203 LOCKWASHERLOCKWASHER
-
511-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
610-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
713-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
8850791T COUPLERCOUPLER
-
910-73732 SCREW, (.375-24 x 1.120)SCREW, (.375-24 x 1.120)
-
1012-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1111-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
