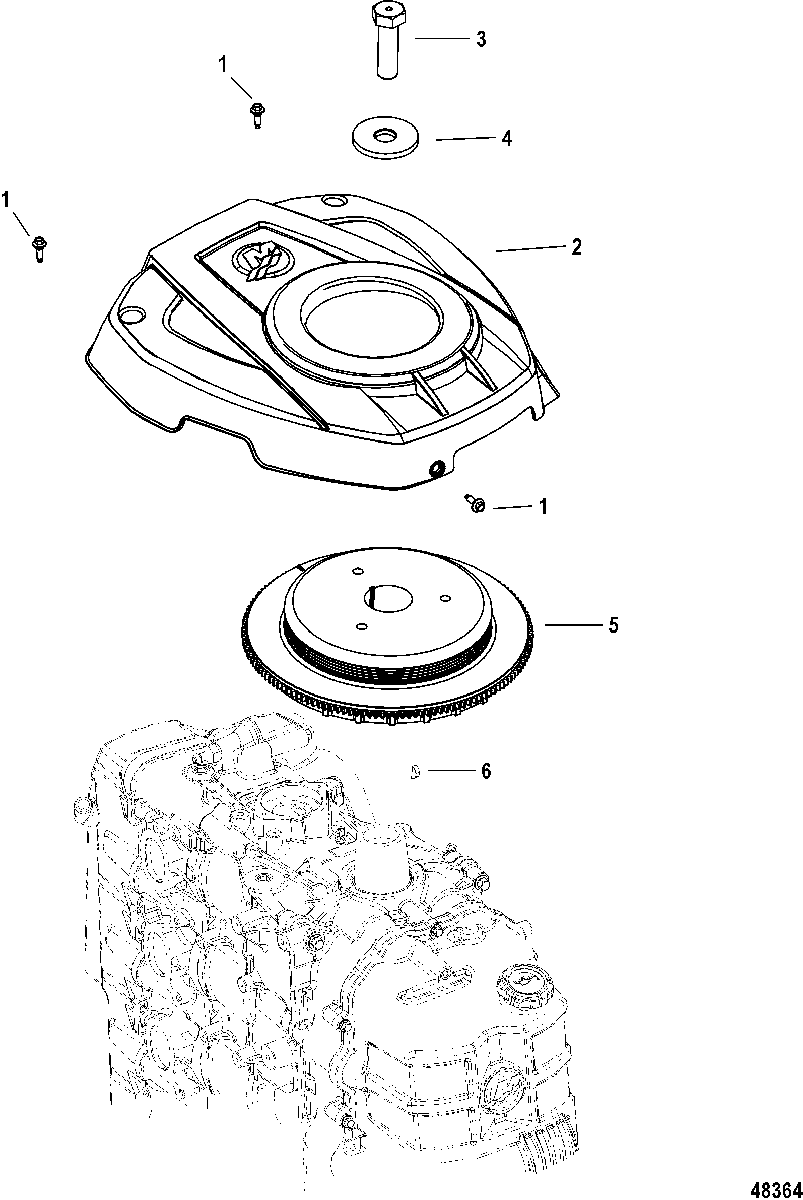

Flywheel and Cover для Mariner - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
110-8M0012661 SCREWSCREW
-
28M0057690 COVER, FlywheelCOVER, Flywheel
-
310-880515 BOLT, (M20 x 68)BOLT, (M20 x 68)
-
412-8M0090010 WASHER, 66 X 21 X 6.35 MMWASHER, 66 X 21 X 6.35 MM
-
5200-8M0057668 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
628-91800 KEY, WoodruffKEY, Woodruff
