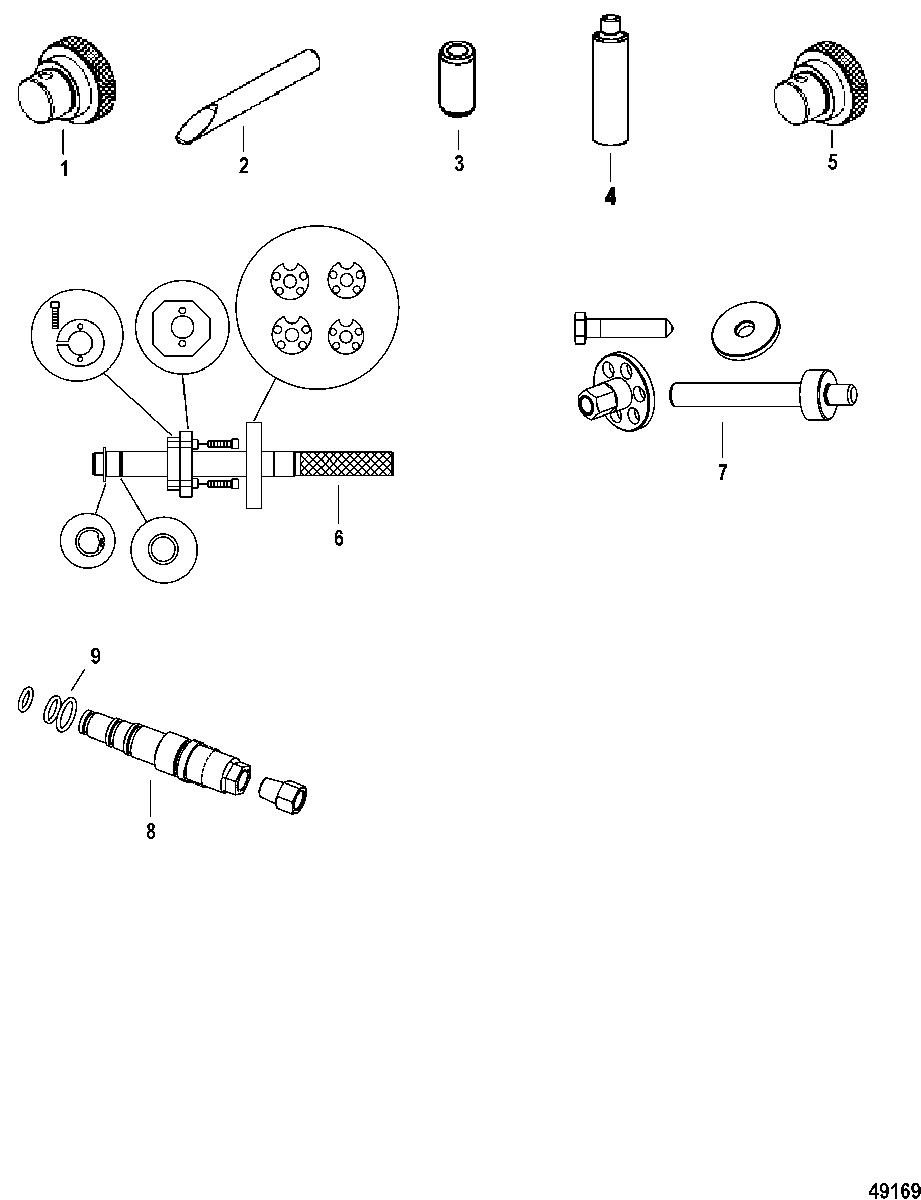

Tools для Mariner - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
191-8M0039811 MANDREL, Right hand rotationMANDREL, Right hand rotation
-
291-8M0045643 BEVELED CROSS PIN TOOLBEVELED CROSS PIN TOOL
-
-91-8M0057704 PIN STOP/ACTUATOR TOOLPIN STOP/ACTUATOR TOOL
-
391-8M0045644 PIN STOP INSTALLATION TOOLPIN STOP INSTALLATION TOOL
-
491-8M0045645 ACTUATOR ASSEMBLY TOOLACTUATOR ASSEMBLY TOOL
-
591-8M0060057 MANDREL, Left hand rotationMANDREL, Left hand rotation
-
691-8M0089163 PINION HEIGHT TOOL KITPINION HEIGHT TOOL KIT
-
-91-8M0089165 PINION HEIGHT TOOL UPGRADE KITPINION HEIGHT TOOL UPGRADE KIT
-
-NSS NOT SOLD SEPARATE, Arbor Locating DiskNOT SOLD SEPARATE, Arbor Locating Disk
-
-NSS NOT SOLD SEPARATE, Pinion Locating SleeveNOT SOLD SEPARATE, Pinion Locating Sleeve
-
-NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
791-8M0057767 TOOL KIT,BEARING CUP/ADPTTOOL KIT,BEARING CUP/ADPT
-
-91-8M0057768 BEARING CUP/ADPT TOOL UPGRADE KITBEARING CUP/ADPT TOOL UPGRADE KIT
-
-NSS NOT SOLD SEPARATE, Retainer Installer ToolNOT SOLD SEPARATE, Retainer Installer Tool
-
-NSS NOT SOLD SEPARATE, Installer PilotNOT SOLD SEPARATE, Installer Pilot
-
891-8M0054662 TRIM PRESSURE TOOLTRIM PRESSURE TOOL
-
891-8M0061797 TRIM PRESSURE TOOL, BottomTRIM PRESSURE TOOL, Bottom
-
925-8M0062937 O-RING SET, Complete for both toolsO-RING SET, Complete for both tools
-
1091-8M0062360 TOOL, Drive Bearing RemovalTOOL, Drive Bearing Removal
-
1191-8M0083568 TOOL KIT, Trim Pin BearingTOOL KIT, Trim Pin Bearing
