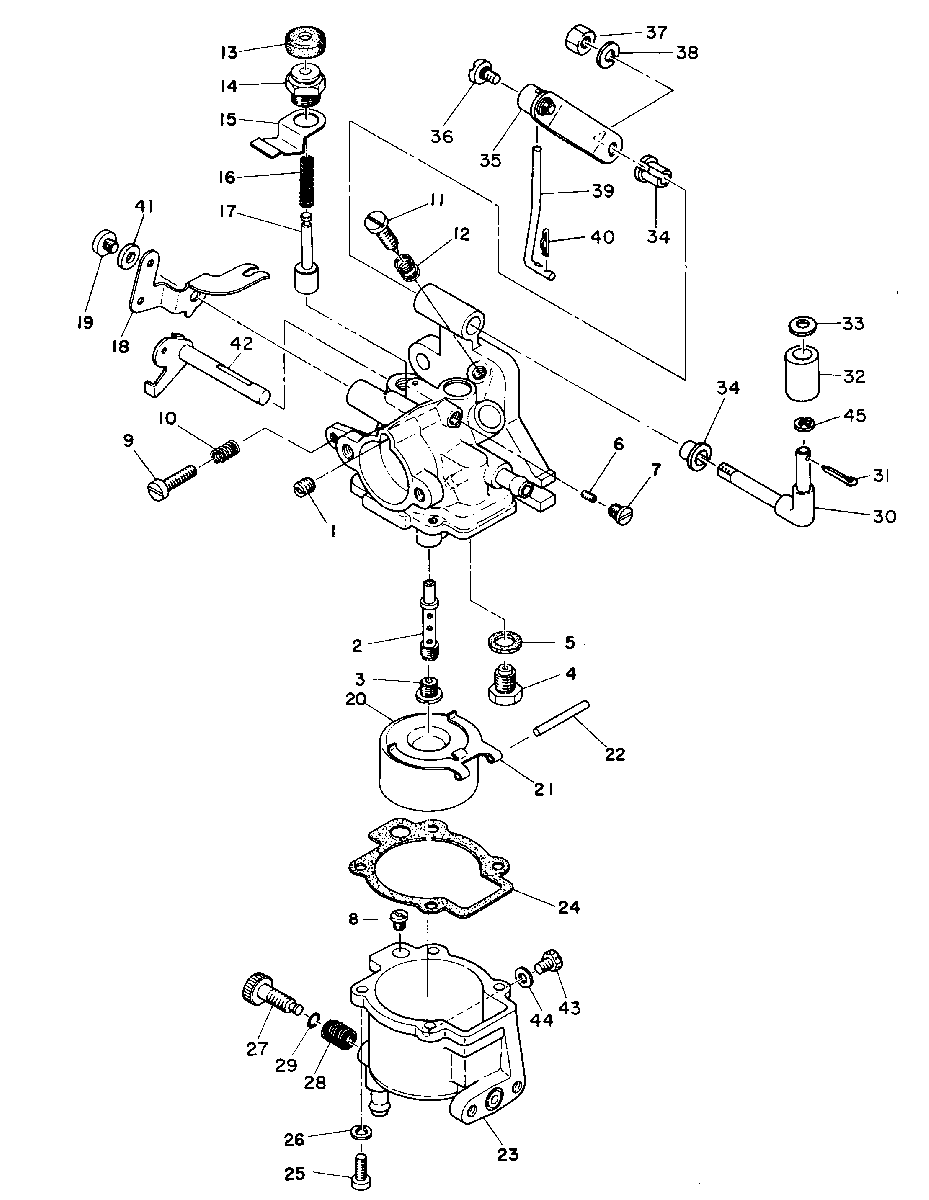

CARBURETOR AND THROTTLE LINKAGE для Mariner - 15A 651-000285 AND BELOW
-
№АртикулНазвание
-
0-11383-6764M CARBURETOR ASS'Y
SERIAL 00000000-00013755CARBURETOR ASS'Y
SERIAL 00000000-00013755 -
0-11383-6948M CARBURETOR ASS'Y
SERIAL 00013756-09999999CARBURETOR ASS'Y
SERIAL 00013756-09999999 -
180585M AIR JET, LOW SPEEDAIR JET, LOW SPEED
-
280941M NOZZLE, MAINNOZZLE, MAIN
-
380580M JET, MAIN (#125)JET, MAIN (#125)
-
480204M VALVE SEATVALVE SEAT
-
527-80205M GASKET, VALVE SEATGASKET, VALVE SEAT
-
695550M JET, LOW SPEED (#54)JET, LOW SPEED (#54)
-
710-80191M SCREW, GUIDESCREW, GUIDE
-
883089M JET STARTERJET STARTER
-
910-80738M SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1024-80193M SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
1110-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1224-80575M SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
1380196M COVER, CHOKE PLUNGER CAPCOVER, CHOKE PLUNGER CAP
-
1480197M CAP, CHOKE PLUNGERCAP, CHOKE PLUNGER
-
1580199M PLATE, CHOKE LEVERPLATE, CHOKE LEVER
-
1624-80194M SPRING, CHOKE PLUNGERSPRING, CHOKE PLUNGER
-
1780195M PLUNGER, CHOKEPLUNGER, CHOKE
-
1880198M LEVER, CHOKELEVER, CHOKE
-
1910-83523M SET SCREWSET SCREW
-
2080450M FLOATFLOAT
-
2180202M ARM FLOATARM FLOAT
-
2217-80451M PIN, FLOATPIN, FLOAT
-
2380739M BOWL, FLOAT
SERIAL 00000000-00009770BOWL, FLOAT
SERIAL 00000000-00009770 -
2380739M BOWL, FLOAT
SERIAL 00009771-00013755BOWL, FLOAT
SERIAL 00009771-00013755 -
2383114M BOWL, FLOAT
SERIAL 00013756-09999999BOWL, FLOAT
SERIAL 00013756-09999999 -
2427-80740M GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
2510-83509M SCREW, BOWL ATTACHINGSCREW, BOWL ATTACHING
-
2613-82206M LOCK WASHER, BOWL SCREWLOCK WASHER, BOWL SCREW
-
2722-82643M VALVE, DRAIN
SERIAL 00000000-00009770VALVE, DRAIN
SERIAL 00000000-00009770 -
2710-80349M VALVE, DRAIN
SERIAL 00009771-00013755VALVE, DRAIN
SERIAL 00009771-00013755 -
2824-82641M SPRING, DRAIN VALVE
SERIAL 00000000-00009770SPRING, DRAIN VALVE
SERIAL 00000000-00009770 -
2824-80736M SPRING, DRAIN VALVE
SERIAL 00009771-00013755SPRING, DRAIN VALVE
SERIAL 00009771-00013755 -
2925-80350M O-RING
SERIAL 00009771-00013755O-RING
SERIAL 00009771-00013755 -
3080623M SHAFT, SHEAVE
SERIAL 00000000-00012755SHAFT, SHEAVE
SERIAL 00000000-00012755 -
3118-16189 PIN, THROTTLE SHAFT
SERIAL 00000000-00012755PIN, THROTTLE SHAFT
SERIAL 00000000-00012755 -
3223-81965M COLLAR, THROTTLE SHAFTCOLLAR, THROTTLE SHAFT
-
3312-82209M WASHER, TROTTLE SHAFTWASHER, TROTTLE SHAFT
-
3423-81941M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
3580622M LEVER, THROTTLELEVER, THROTTLE
-
3610-83523M SCREWSCREW
-
3711-83763M NUTNUT
-
3813-82186M LOCK WASHER, THROTTLE LEVER NUTLOCK WASHER, THROTTLE LEVER NUT
-
3980625M RODROD
-
4018-80764M PINPIN
-
4183115M COLLAR
SERIAL 00012756-09999999COLLAR
SERIAL 00012756-09999999 -
4283116M SHAFT, THROTTLESHAFT, THROTTLE
-
4322-80735M VALVE, DRAIN
SERIAL 00000000-00013755VALVE, DRAIN
SERIAL 00000000-00013755 -
4427-13999M GASKET, DRAIN VALVE
SERIAL 00000000-00013755GASKET, DRAIN VALVE
SERIAL 00000000-00013755 -
4553-82328M CLIP
SERIAL 00012756-09999999CLIP
SERIAL 00012756-09999999
