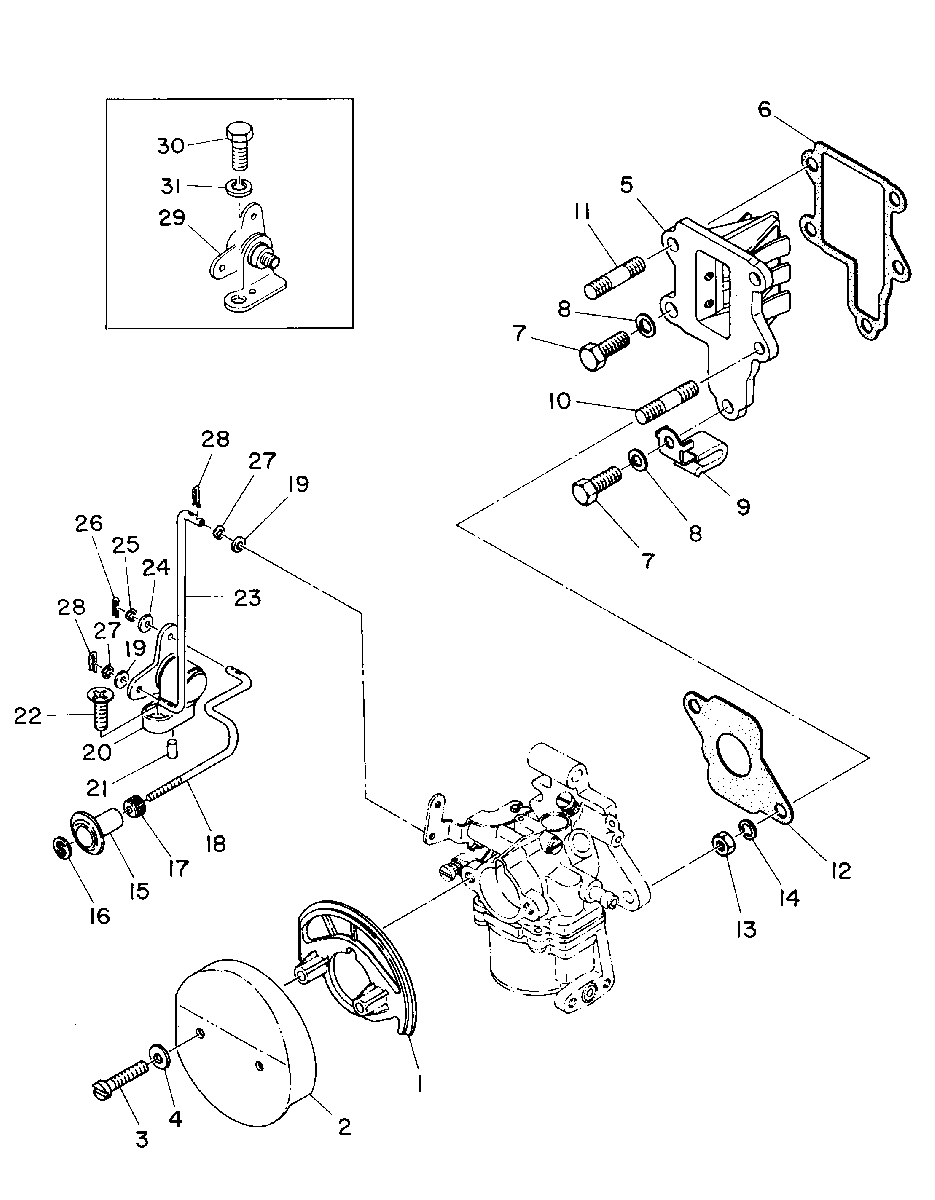

INTAKE MANIFOLD AND CHOKE для Mariner - 15A 651-000285 AND BELOW
-
№АртикулНазвание
-
180741M BASE, AIR INTAKE COVERBASE, AIR INTAKE COVER
-
280742M COVER, AIR INTAKECOVER, AIR INTAKE
-
310-83108M SCREW, COVER ATTACHINGSCREW, COVER ATTACHING
-
580940M REED VALVEREED VALVE
-
627-80733M GASKET, REED VALVEGASKET, REED VALVE
-
710-82423M BOLT, REED VALVE ATTACHINGBOLT, REED VALVE ATTACHING
-
813-82212M LOCK WASHER, REED VALVE BOLTLOCK WASHER, REED VALVE BOLT
-
954-82043M CLAMP WIRECLAMP WIRE
-
1016-81729M STUD, REED VALVE ATTACHINGSTUD, REED VALVE ATTACHING
-
1116-81727M STUD, REED VALVE ATTACHINGSTUD, REED VALVE ATTACHING
-
1227-80734M GASKET, CARBURETOR TO REED VALVEGASKET, CARBURETOR TO REED VALVE
-
1311-82390M NUT, REED VALVE STUDNUT, REED VALVE STUD
-
1412-82214M WASHER, REED VALVE STUDWASHER, REED VALVE STUD
-
1580149M KNOB, CHOKEKNOB, CHOKE
-
1680128M INDICATOR, CHOKEINDICATOR, CHOKE
-
1723-80053M BUSHING, CHOKE KNOBBUSHING, CHOKE KNOB
-
1880766M LINK ROD, CHOKELINK ROD, CHOKE
-
1912-82933M WASHERWASHER
-
2080762M CHOKE LINKAGE
SERIAL 00000000-00012755CHOKE LINKAGE
SERIAL 00000000-00012755 -
2117-82363M PIN, ROLL-CHOKE LINKAGEPIN, ROLL-CHOKE LINKAGE
-
2210-82166M SCREW, CHOKE LINKAGE ATTACHING
SERIAL 00000000-00012755SCREW, CHOKE LINKAGE ATTACHING
SERIAL 00000000-00012755 -
2380765M LINK ROD, CHOKE LEVERLINK ROD, CHOKE LEVER
-
2412-82847M WASHER, CHOKE RODWASHER, CHOKE ROD
-
2513-81864M LOCK WASHER, CHOKE RODLOCK WASHER, CHOKE ROD
-
2618-82051M PIN, CHOKE RODPIN, CHOKE ROD
-
2713-81863M LOCK WASHER, CHOKE LEVERLOCK WASHER, CHOKE LEVER
-
2818-82050M PIN, CHOKE LEVERPIN, CHOKE LEVER
-
2983110M CHOKE LINKAGE
SERIAL 00012756-09999999CHOKE LINKAGE
SERIAL 00012756-09999999 -
3010-84088M BOLT
SERIAL 00012756-09999999BOLT
SERIAL 00012756-09999999 -
3113-82212M WASHER
SERIAL 00012756-09999999WASHER
SERIAL 00012756-09999999
