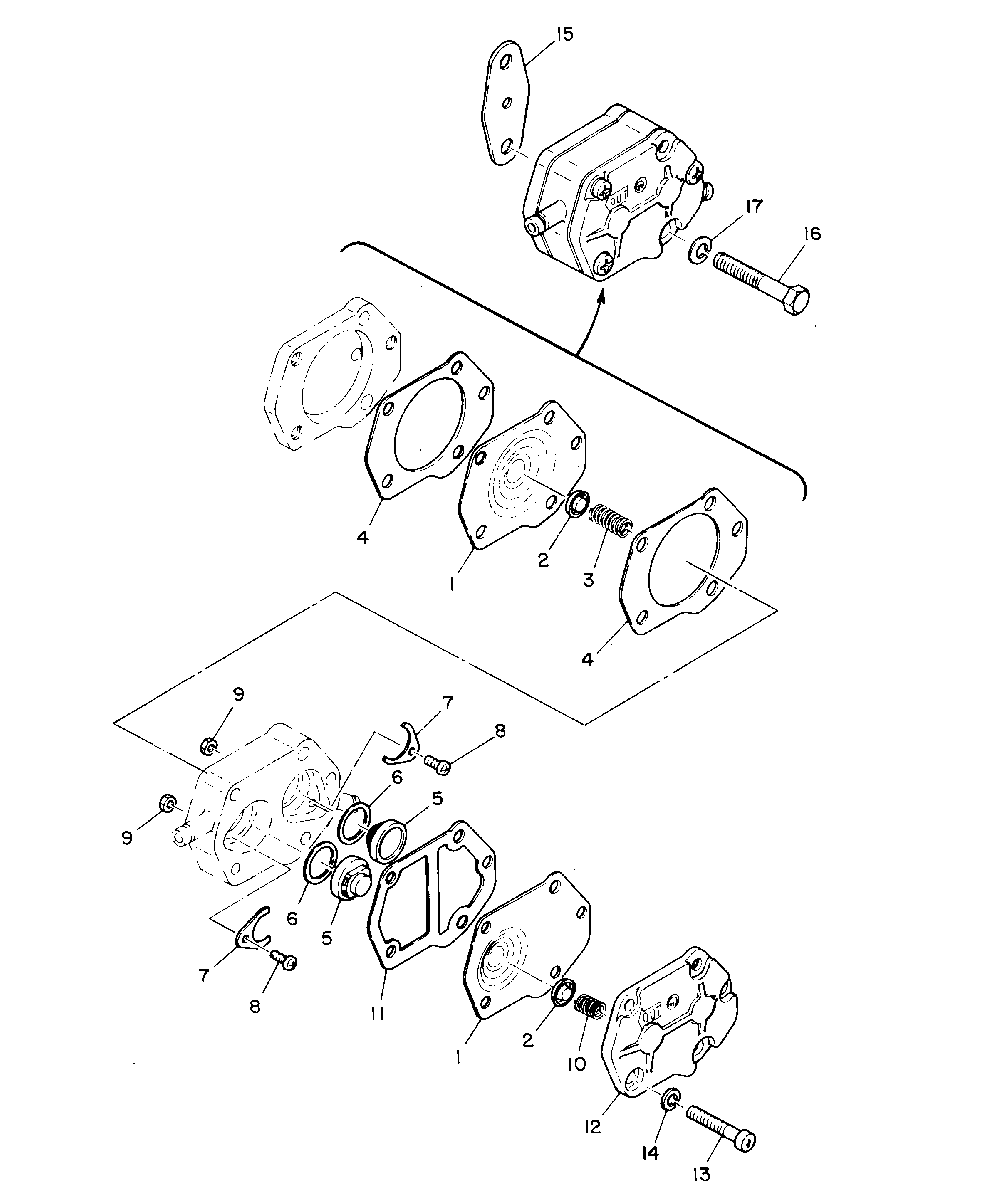

FUEL PUMP для Mariner - 15A 651-000285 AND BELOW
-
№АртикулНазвание
-
0-143113T FUEL PUMP ASS'YFUEL PUMP ASS'Y
-
180606M DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
280611M PLATE, SPRING GUIDEPLATE, SPRING GUIDE
-
324-80610M SPRING, FUEL PUMP DIAPHRAGMSPRING, FUEL PUMP DIAPHRAGM
-
427-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
521-80608M CHECK VALVE, FUEL PUMPCHECK VALVE, FUEL PUMP
-
627-80612M GASKET, CHECK VALVEGASKET, CHECK VALVE
-
780609M RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-82511M SCREW, RETAINER ATTACHINGSCREW, RETAINER ATTACHING
-
911-82537M NUT, RETAINER SCREWNUT, RETAINER SCREW
-
1024-80615M SPRING, FUEL PUMP DIAPHRAGMSPRING, FUEL PUMP DIAPHRAGM
-
1127-80614 GASKET, BODY TO COVERGASKET, BODY TO COVER
-
1280607M COVER, FUEL PUMPCOVER, FUEL PUMP
-
1310-82522M SCREW, COVER ATTACHINGSCREW, COVER ATTACHING
-
1413-82186M LOCK WASHER, COVER SCREWLOCK WASHER, COVER SCREW
-
1527-80757 GASKET, FUEL PUMP TO CRANKCASEGASKET, FUEL PUMP TO CRANKCASE
-
1610-827043M BOLT, FUEL PUMP ATTACHINGBOLT, FUEL PUMP ATTACHING
-
1713-82212M LOCK WASHER, PUMP BOLTLOCK WASHER, PUMP BOLT
