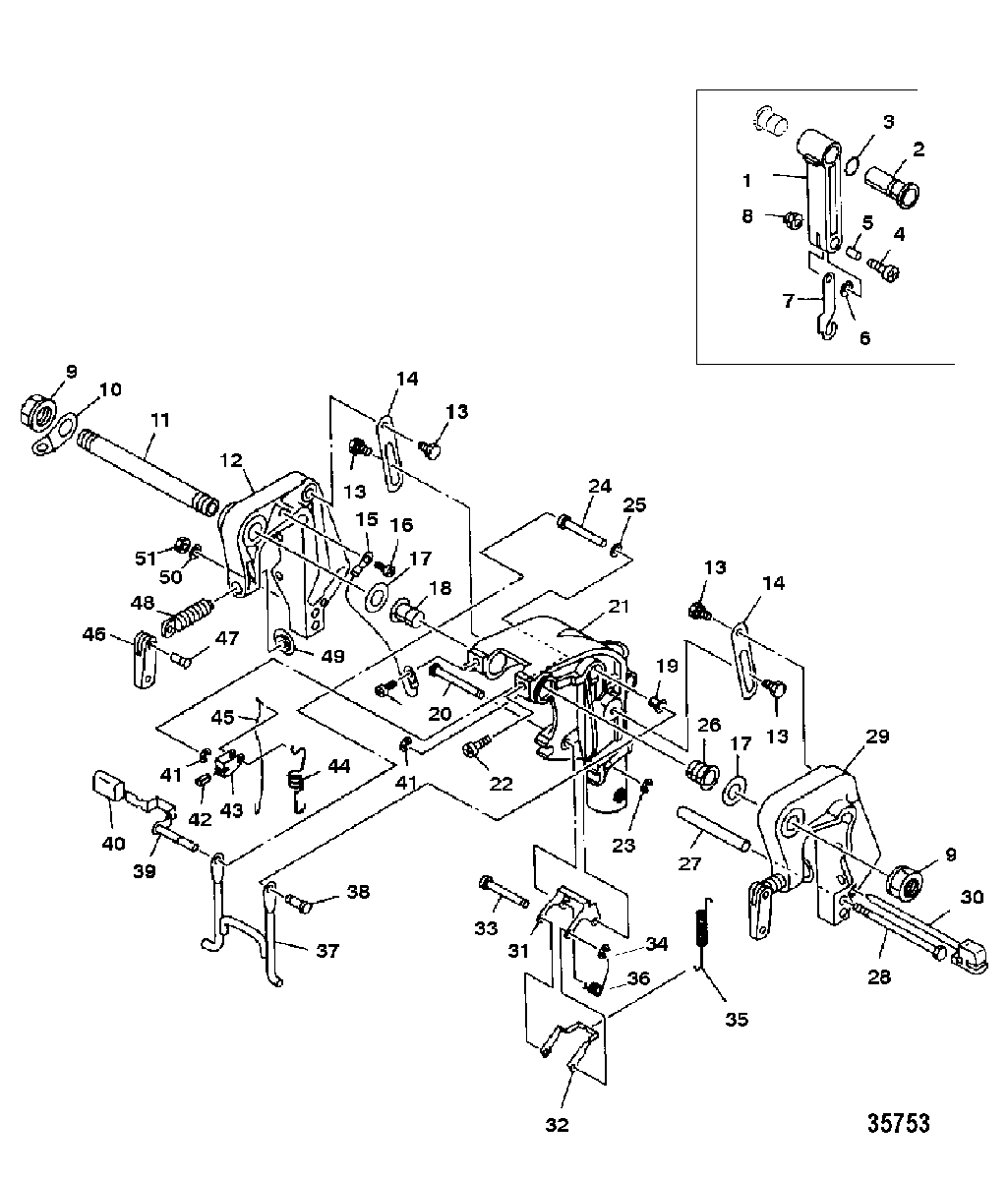

Clamp and Swivel Bracket для Mariner - 15K 65G-602581 & Up
-
№АртикулНазвание
-
1852815 CARRYING HANDLECARRYING HANDLE
-
223-19112M BUSHINGBUSHING
-
325-825478 O-RINGO-RING
-
410-8527874 SCREWSCREW
-
523-8528141 COLLARCOLLAR
-
613-81867M WASHERWASHER
-
7804385 HOOKHOOK
-
811-11565M NUTNUT
-
911-879172252 NUTNUT
-
1019111M PLATEPLATE
-
1116-852813 STUDSTUD
-
121484-827120A2 CLAMP BRACKET
(STARBOARD)CLAMP BRACKET
(STARBOARD) -
1310-8527766 BOLTBOLT
-
14852823 LEVER, Tilt StopLEVER, Tilt Stop
-
1584-804383 CABLECABLE
-
1610-19172M SCREWSCREW
-
1712-8528034 WASHERWASHER
-
1823-852814 BUSHINGBUSHING
-
1923-8528142 BUSHINGBUSHING
-
2017-8112713 SHAFT, Reverse LockSHAFT, Reverse Lock
-
211485-852818A2 SWIVEL BRACKETSWIVEL BRACKET
-
2210-804384 SCREWSCREW
-
2353-82330M RING, SnapRING, Snap
-
2423-804388 COLLARCOLLAR
-
2512-804387 WASHERWASHER
-
2623-852814 BUSHINGBUSHING
-
2723-94568M COLLARCOLLAR
-
2810-84062M BOLTBOLT
-
291484-827120A2 CLAMP BRACKET
(PORT)CLAMP BRACKET
(PORT) -
3017-852817 TILT RODTILT ROD
-
31804391 TILT LOCK PLATETILT LOCK PLATE
-
32804389 TILT LOCK PLATETILT LOCK PLATE
-
3317-804392 SHAFT, Tilt LockSHAFT, Tilt Lock
-
3453-82330M RING, SnapRING, Snap
-
3524-804394 SPRINGSPRING
-
3624-804390 SPRINGSPRING
-
378528201 BRACKETBRACKET
-
3817-8112711 SHAFTSHAFT
-
398M0062304 LEVER, TiltLEVER, Tilt
-
4011932M COVERCOVER
-
4153-82330M RING, SnapRING, Snap
-
4217-82146M PINPIN
-
438528191 LEVER, TiltLEVER, Tilt
-
4424-8527785 SPRINGSPRING
-
45804393 TILT LOCK RODTILT LOCK ROD
-
4691784M HANDLEHANDLE
-
4717-852812 PINPIN
-
4810-81756M SCREWSCREW
-
4912-80638M PADPAD
-
5012-82214M WASHERWASHER
-
5111-82390M NUT, (M6)NUT, (M6)
