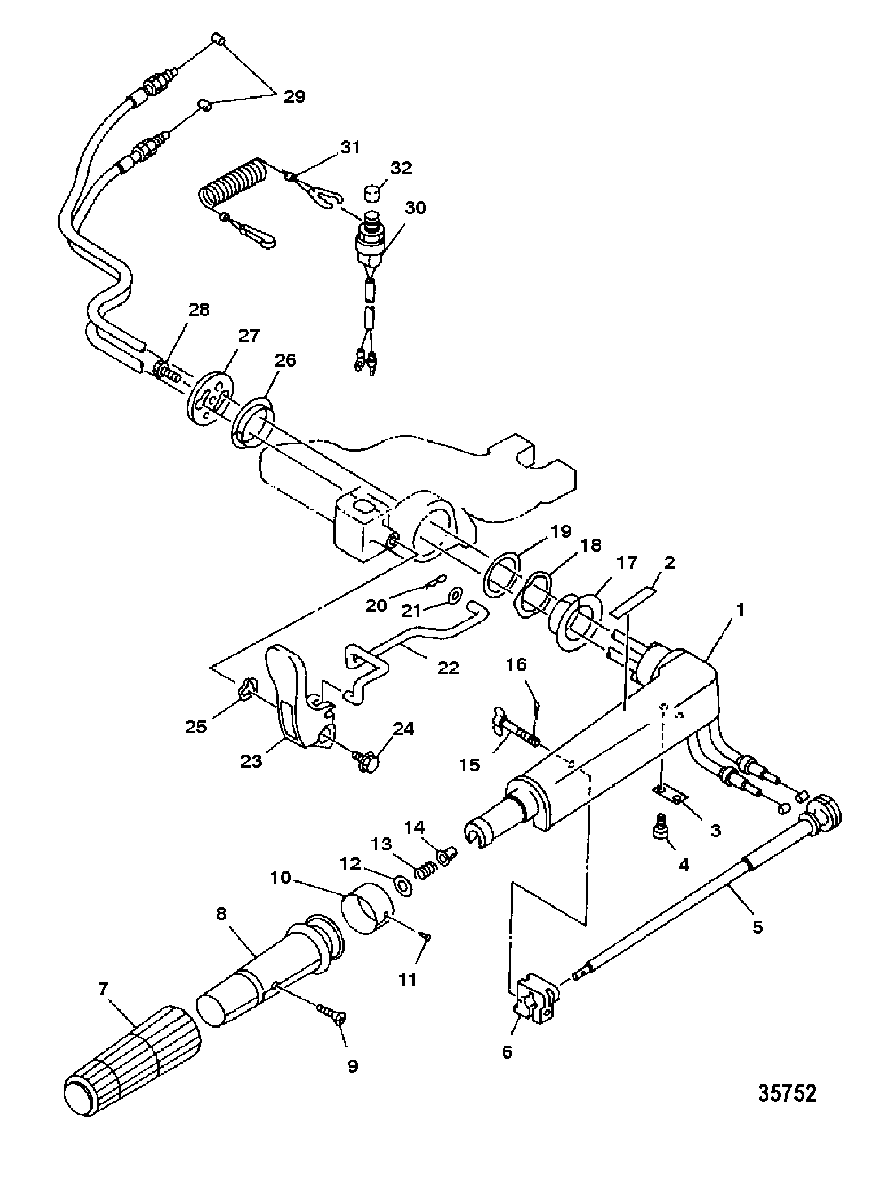

Steering Handle для Mariner - 15K 65G-602581 & Up
-
№АртикулНазвание
-
18104491 HANDLE, SteeringHANDLE, Steering
-
237-852834 DECAL, ShiftDECAL, Shift
-
318848M BRACKETBRACKET
-
410-14232M SCREWSCREW
-
511558M LEVERLEVER
-
611556M PIECEPIECE
-
78M0080456 HANDLE RUBBERHANDLE RUBBER
-
881585M GRIPGRIP
-
910-811916M SCREWSCREW
-
10852832 INDICATOR, ThrottleINDICATOR, Throttle
-
1117-81907M RIVETRIVET
-
1212-82220M WASHERWASHER
-
1324-82095M SPRINGSPRING
-
1423-81945M BUSHINGBUSHING
-
1510-17363M BOLTBOLT
-
1618-82125M COTTER PINCOTTER PIN
-
1723-8528146 BUSHINGBUSHING
-
1813-852831 WAVE WASHERWAVE WASHER
-
1912-8528035 WASHERWASHER
-
2018-82053M PIN, HairPIN, Hair
-
2112-81844M WASHERWASHER
-
22852835 SHIFT ROD LINKSHIFT ROD LINK
-
23804395 GEAR SHIFT HANDLEGEAR SHIFT HANDLE
-
2410-85277611 BOLTBOLT
-
2513-8528311 WAVE WASHERWAVE WASHER
-
2623-8528147 BUSHINGBUSHING
-
2711554M COVERCOVER
-
2810-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
298269851 CABLE ASSEMBLY, ThrottleCABLE ASSEMBLY, Throttle
-
3087-97757M SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
3197756M STOPPERSTOPPER
-
3219-852837 CAPCAP
