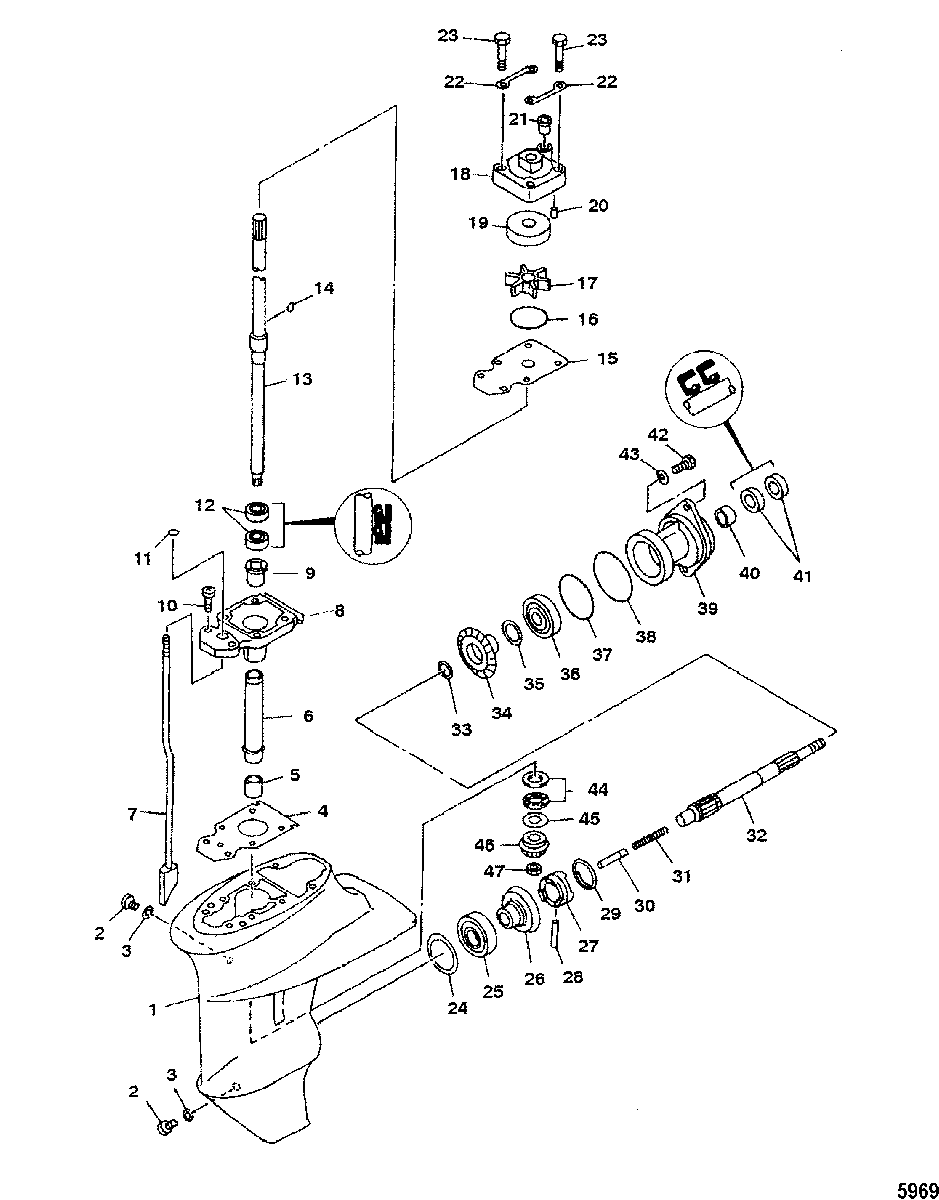

Gear Housing Assembly для Mariner - 15K 65G-602581 & Up
-
№АртикулНазвание
-
-1651-811278A2 GEAR HOUSING ASSEMBLY
(SHORT)GEAR HOUSING ASSEMBLY
(SHORT) -
-1651-811279A11 GEAR HOUSING ASSEMBLY
(LONG)GEAR HOUSING ASSEMBLY
(LONG) -
11651-8119912 GEAR HOUSING, BasicGEAR HOUSING, Basic
-
222-81924M PLUGPLUG
-
327-81987 GASKETGASKET
-
427-8527836 GASKETGASKET
-
531-17673M BEARINGBEARING
-
623-852850 SLEEVESLEEVE
-
7852857 SHIFT CAM
(SHORT)SHIFT CAM
(SHORT) -
78528571 SHIFT CAM
(LONG)SHIFT CAM
(LONG) -
8852856 HOUSINGHOUSING
-
923-82590M BUSHING (UPPER)BUSHING (UPPER)
-
1010-8527878 SCREWSCREW
-
1125-827049M O-RINGO-RING
-
1226-82229M SEAL, OilSEAL, Oil
-
1345-8043991 DRIVESHAFT
(SHORT)DRIVESHAFT
(SHORT) -
1345-80439911 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1428-81603M KEYKEY
-
15852854 OUTER PLATEOUTER PLATE
-
1625-8527963 O-RINGO-RING
-
1747-8528531 IMPELLERIMPELLER
-
1846-852851A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
19852852 INSERTINSERT
-
2017-41275M PIN, DowelPIN, Dowel
-
2126-80532M RUBBERRUBBER
-
22852855 PLATEPLATE
-
2310-85277614 BOLTBOLT
-
2415-18954M SHIM
(.10MM)SHIM
(.10MM) -
2415-18955M SHIM
(.12MM)SHIM
(.12MM) -
2415-18956M SHIM
(.15MM)SHIM
(.15MM) -
2415-18957M SHIM
(.18MM)SHIM
(.18MM) -
2415-18958M SHIM
(.30MM)SHIM
(.30MM) -
2415-18959M SHIM
(.40MM)SHIM
(.40MM) -
2415-18960M SHIM
(.50MM)SHIM
(.50MM) -
2531-82321T BEARINGBEARING
-
2643-99043T GEAR, ForwardGEAR, Forward
-
2752-84274M CLUTCHCLUTCH
-
2817-81899M PIN, CrossPIN, Cross
-
2953-80678M RINGRING
-
3080923M PLUNGERPLUNGER
-
3124-84064M SPRINGSPRING
-
3244-84078M PROPELLER SHAFTPROPELLER SHAFT
-
3312-94627M WASHERWASHER
-
3443-99044T GEAR, ReverseGEAR, Reverse
-
3515-19148005 SHIM
(0.1MM)SHIM
(0.1MM) -
3515-80259M SHIM
(0.3MM)SHIM
(0.3MM) -
3515-879172251 SHIM
(0.5MM)SHIM
(0.5MM) -
3630-8528001 BEARINGBEARING
-
3725-84089M O-RINGO-RING
-
3825-827156M O-RINGO-RING
-
39804398 CARRIER, BearingCARRIER, Bearing
-
4030-84086M BEARING, NeedleBEARING, Needle
-
4126-8540171 SEAL, OilSEAL, Oil
-
4210-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
4312-82214M WASHERWASHER
-
4431-99030M BEARINGBEARING
-
4515-827126M SHIM
(1.13)SHIM
(1.13) -
4515-827127M SHIM
(1.20)SHIM
(1.20) -
4643-804499 GEAR, PinionGEAR, Pinion
-
4711-99042M NUTNUT
-
-46-852851A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-27-852867A1 GASKET SET, Lower UnitGASKET SET, Lower Unit
