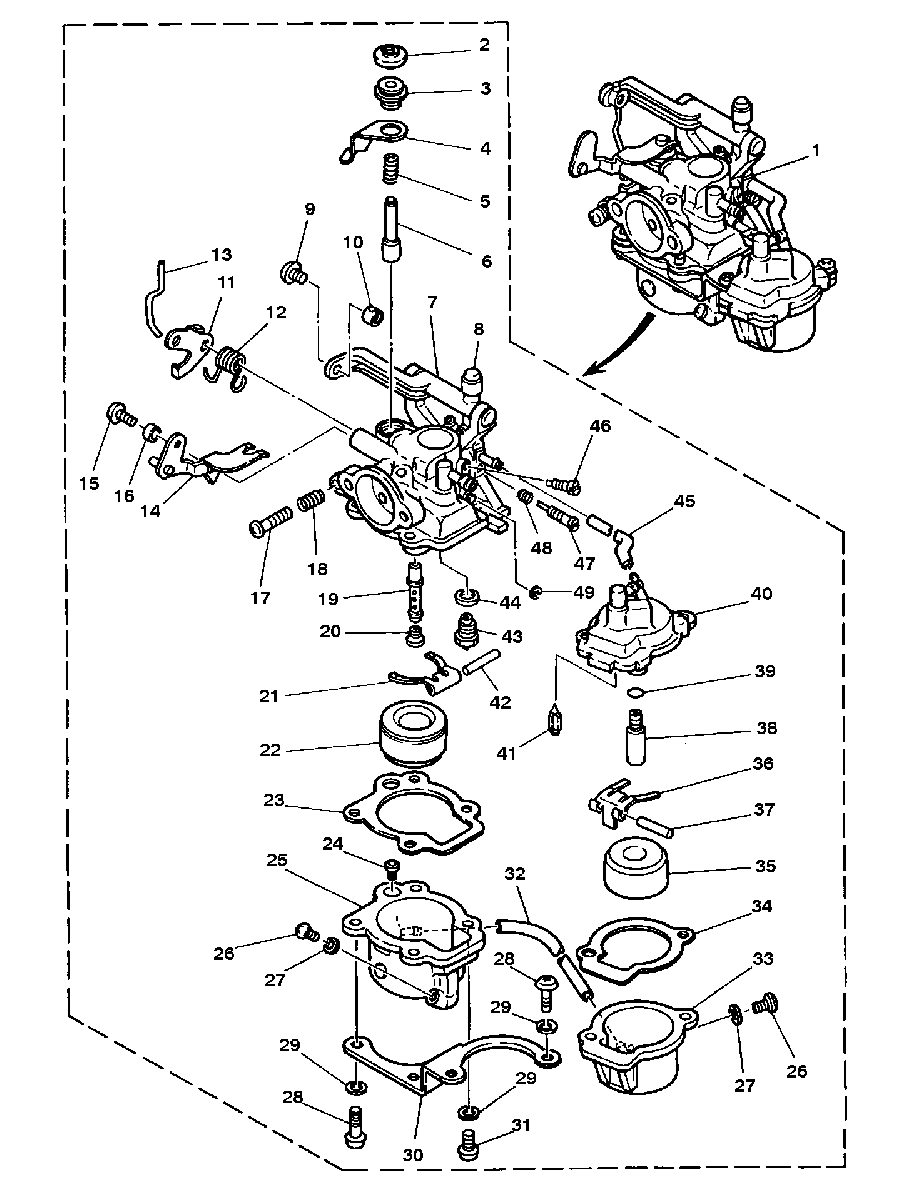

CARBURETOR для Mariner - 15K 6M7-400101 AND UP
-
№АртикулНазвание
-
11383-811242M CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
280196M COVERCOVER
-
380197M CAPCAP
-
480199M PLATEPLATE
-
524-80194M SPRINGSPRING
-
680195M PLUNGERPLUNGER
-
794740M SHAFTSHAFT
-
823-80227M BUSHINGBUSHING
-
910-80091M SCREWSCREW
-
1083300M ENDEND
-
1194741M THROTTLE LEVERTHROTTLE LEVER
-
1224-80574M SPRINGSPRING
-
1394742M LINK RODLINK ROD
-
14811245M LEVERLEVER
-
1510-83112M SCREWSCREW
-
1683115M COLLARCOLLAR
-
1710-827147M SCREWSCREW
-
1824-80193M SPRINGSPRING
-
19811243M MAIN NOZZLEMAIN NOZZLE
-
20811244M MAIN JET (#98)MAIN JET (#98)
-
2180203M ARMARM
-
2280450M FLOATFLOAT
-
2327-80740M GASKETGASKET
-
24811246M STARTER JET (#50)STARTER JET (#50)
-
2594735M BODYBODY
-
2610-811248M SCREWSCREW
-
2727-13999M GASKETGASKET
-
2810-91738M SCREWSCREW
-
2913-82206M LOCKWASHERLOCKWASHER
-
3094747M PLATEPLATE
-
3110-82515M SCREWSCREW
-
3232-94746M HOSEHOSE
-
3394744M BODYBODY
-
3427-94691M GASKETGASKET
-
3594696M FLOATFLOAT
-
3694697M ARMARM
-
3717-811249M FLOAT PINFLOAT PIN
-
38811251M PILOT JET (#66)PILOT JET (#66)
-
3925-94695M O-RINGO-RING
-
4094745M COVERCOVER
-
4195430M VALVE SEATVALVE SEAT
-
4217-80451M FLOAT PINFLOAT PIN
-
4311930M VALVE SEATVALVE SEAT
-
4427-80205M GASKETGASKET
-
4532-97591M HOSEHOSE
-
4695580M PILOT JETPILOT JET
-
4710-80573M SCREWSCREW
-
4824-8095791 SPRINGSPRING
-
4953-94722M RETAINING RINGRETAINING RING
-
-811252M CARB REPAIR KITCARB REPAIR KIT
-
-27-811233M POWERHEAD GASKET SETPOWERHEAD GASKET SET
Все узлы модели:
- C.D.I. MAGNETO
- • CARBURETOR
- CLAMP AND SWIVEL BRACKET
- CLAMP AND SWIVEL BRACKET
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- FUEL PUMP/FUEL LINES
- FUEL TANK AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD AND CHOKE
- LOWER GEAR HOUSING
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- STEERING HANDLE
- THROTTLE LINKAGE
