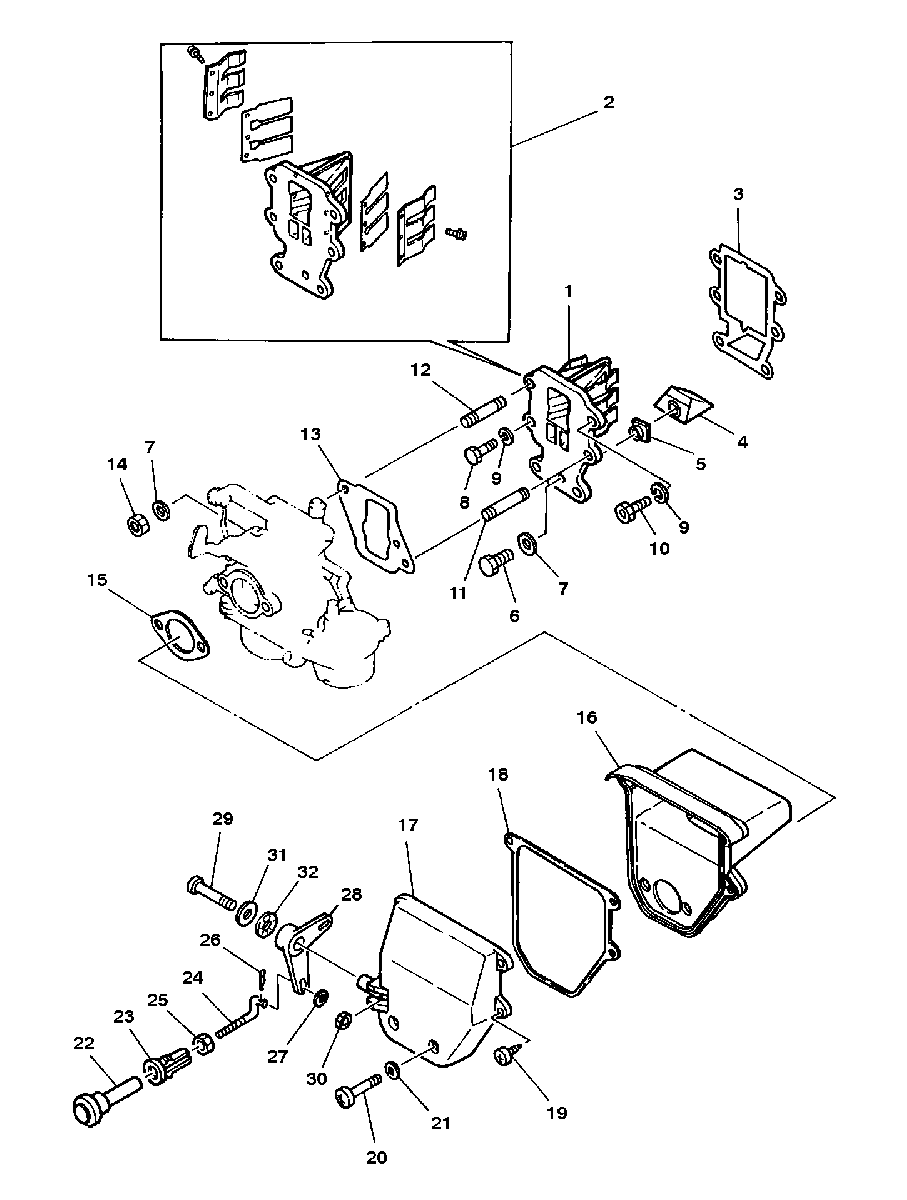

INTAKE MANIFOLD AND CHOKE для Mariner - 15K 6M7-400101 AND UP
-
№АртикулНазвание
-
134-811234M REED VALVE ASSEMBLYREED VALVE ASSEMBLY
-
234-811235M REED SETREED SET
-
327-83941M GASKETGASKET
-
441256M SPACERSPACER
-
511-15327M NUTNUT
-
610-91772M BOLTBOLT
-
712-82214M WASHERWASHER
-
810-826957M BOLTBOLT
-
913-82212M LOCKWASHERLOCKWASHER
-
1010-94766M BOLTBOLT
-
1116-80232M STUDSTUD
-
1216-81731M STUDSTUD
-
1327-83245M GASKETGASKET
-
1411-82390M NUTNUT
-
1527-811239M GASKETGASKET
-
16811236M COVER (INNER)COVER (INNER)
-
17811237M COVER (OUTER)COVER (OUTER)
-
1827-811238M GASKETGASKET
-
1910-96610M SCREWSCREW
-
2010-82522M SCREWSCREW
-
2112-82211M WASHERWASHER
-
2283287M CHOKE KNOBCHOKE KNOB
-
2325-80231M GROMMETGROMMET
-
24811240M CHOKE RODCHOKE ROD
-
2511-80245M NUTNUT
-
2618-82050M COTTER PINCOTTER PIN
-
2712-82847M WASHERWASHER
-
28811241M CHOKE LEVERCHOKE LEVER
-
2910-8527876 SCREWSCREW
-
3011-82389M NUTNUT
-
3112-94524M WASHERWASHER
-
3213-81868M WAVE WASHERWAVE WASHER
-
-811252M CARB REPAIR KITCARB REPAIR KIT
-
-27-811233M POWERHEAD GASKET SETPOWERHEAD GASKET SET
