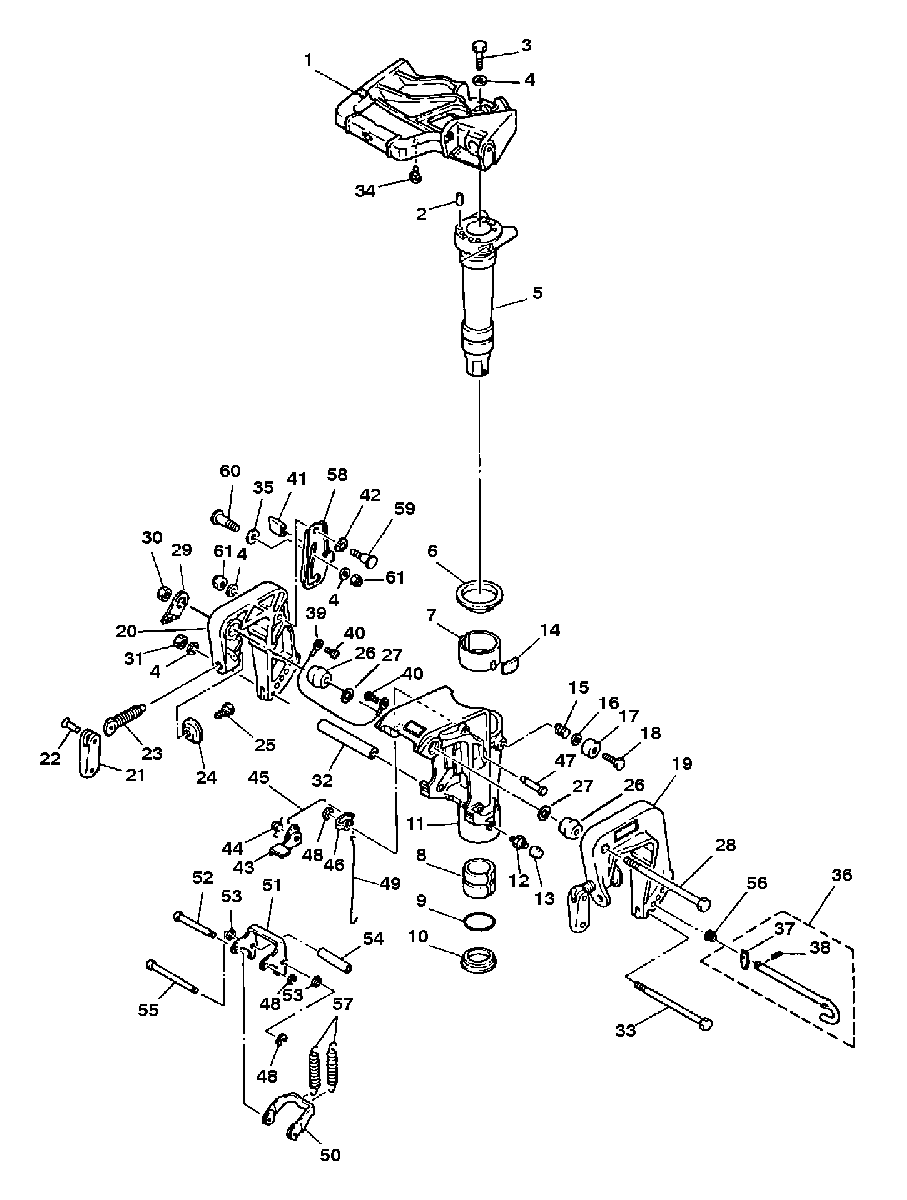

CLAMP AND SWIVEL BRACKET для Mariner - 15K 6M7-400101 AND UP
-
№АртикулНазвание
-
1827175M STEERING BRACKET
(M-100131 ML-402041 AND UP)STEERING BRACKET
(M-100131 ML-402041 AND UP) -
1827175M STEERING BRACKET
(M-100130 ML-402040 AND BELOW)STEERING BRACKET
(M-100130 ML-402040 AND BELOW) -
217-82364M DOWEL PINDOWEL PIN
-
310-82405M BOLTBOLT
-
412-82214M WASHERWASHER
-
583980M SHAFTSHAFT
-
612-84278M WASHERWASHER
-
723-83981M BUSHINGBUSHING
-
823-84279M BUSHINGBUSHING
-
925-84054M O-RINGO-RING
-
1023-84280M BUSHINGBUSHING
-
111485-827436M SWIVEL BRACKET
(M-100131 ML-402041 AND UP)SWIVEL BRACKET
(M-100131 ML-402041 AND UP) -
111485-811019M SWIVEL BRACKET
(M-100130 ML-402040 AND BELOW)SWIVEL BRACKET
(M-100130 ML-402040 AND BELOW) -
1222-82369M GREASE FITTINGGREASE FITTING
-
1381439M CAP (USE WHERE APPLICABLE)CAP (USE WHERE APPLICABLE)
-
1480633M FRICTION PLATEFRICTION PLATE
-
1524-83488M SPRINGSPRING
-
1612-82217M WASHERWASHER
-
1726-83490M SEALSEAL
-
1810-43106M BOLTBOLT
-
191484-827120M PORT BRACKET
(M-100131 ML-402041 AND UP)PORT BRACKET
(M-100131 ML-402041 AND UP) -
191484-9793M PORT BRACKET
(M-100130 ML-402040 AND BELOW)PORT BRACKET
(M-100130 ML-402040 AND BELOW) -
201484-827437M STBD. BRACKET
(M-100131 ML-402041 AND UP)STBD. BRACKET
(M-100131 ML-402041 AND UP) -
201484-811020M STBD. BRACKET
(M-100130 ML-402040 AND BELOW)STBD. BRACKET
(M-100130 ML-402040 AND BELOW) -
2111868M HANDLEHANDLE
-
2217-81889M PINPIN
-
2310-43098M SCREWSCREW
-
2412-43099M PADPAD
-
2510-43097M BOLTBOLT
-
2680230M FRICTION PIECE
(M-100130 ML-402040 AND BELOW)FRICTION PIECE
(M-100130 ML-402040 AND BELOW) -
2623-827122M BUSHING
M-100131 ML-402041 AND UPBUSHING
M-100131 ML-402041 AND UP -
2712-827123M WASHER
M-100131 ML-402041 AND UPWASHER
M-100131 ML-402041 AND UP -
2810-18943M BOLTBOLT
-
29811270M PLATEPLATE
-
3011-81785M NUTNUT
-
3111-82390M NUTNUT
-
3223-94568M COLLARCOLLAR
-
3310-84062M BOLTBOLT
-
3480033M HOLDERHOLDER
-
3512-98997M WASHERWASHER
