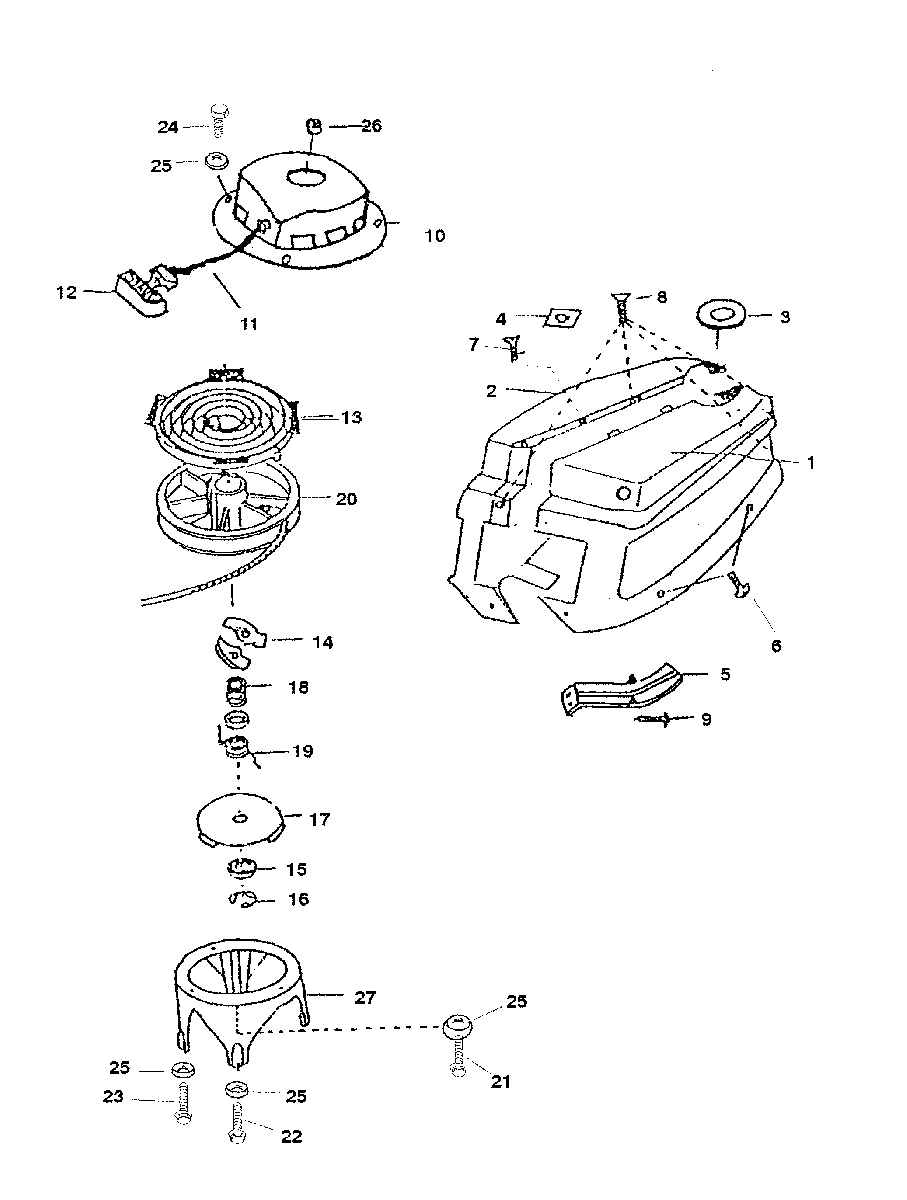

COWLING/RECOIL STARTER для Mariner - 2 H.P. THRUSTER (EXPORT) 0G413201 AND UP
-
№АртикулНазвание
-
12189-832500 COWLING (STARBOARD)COWLING (STARBOARD)
-
22189-832498 COWLING (PORT)COWLING (PORT)
-
325-832499 RUBBER PLATERUBBER PLATE
-
411-832501 NUTNUT
-
5832502 DOORDOOR
-
610-832362 SCREW (M6 X 10)(STARBOARD)SCREW (M6 X 10)(STARBOARD)
-
710-832370 BOLT (M5 X 20)BOLT (M5 X 20)
-
810-832371 BOLT (M6 X 12)BOLT (M6 X 12)
-
910-832392 SCREW-SELF-TAPPING (M5 X 15)SCREW-SELF-TAPPING (M5 X 15)
-
10832483 RECOIL STARTER ASSEMBLYRECOIL STARTER ASSEMBLY
-
1150-832486 ROPEROPE
-
12832487 HANDLEHANDLE
-
1324-832488 RECOIL SPRINGRECOIL SPRING
-
14832489 RATCHETRATCHET
-
1512-832490 WASHERWASHER
-
1653-832491 E-RINGE-RING
-
17832492 FRICTION PLATEFRICTION PLATE
-
1824-832493 FRICTION SPRINGFRICTION SPRING
-
1924-832484 RETURN SPRINGRETURN SPRING
-
20832485 STARTER PULLEYSTARTER PULLEY
-
2110-832355 BOLTBOLT
-
2210-832351 BOLTBOLT
-
2310-832353 BOLTBOLT
-
2410-832350 BOLTBOLT
-
2513-832381 LOCKWASHERLOCKWASHER
-
26832504 COWL PACKINGCOWL PACKING
-
27832494 MOUNT-RECOIL STARTERMOUNT-RECOIL STARTER
