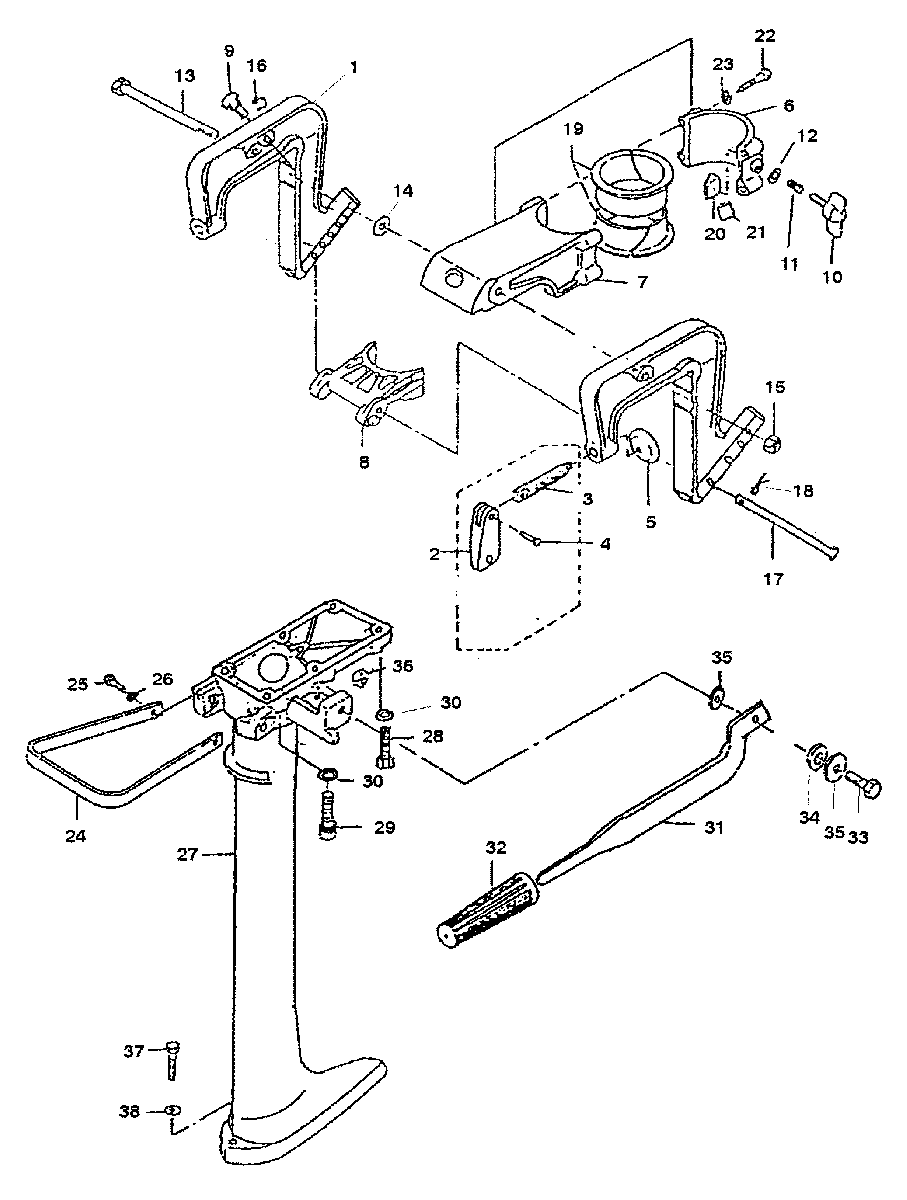

MIDSECTION для Mariner - 2 H.P. THRUSTER (EXPORT) 0G413201 AND UP
-
№АртикулНазвание
-
13406-832444 TRANSOM BRACKETTRANSOM BRACKET
-
210-832445 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
310-832446 BOLTBOLT
-
410-832447 PINPIN
-
510-832448 PLATEPLATE
-
63407-832449 SWIVEL BRACKETSWIVEL BRACKET
-
73407-832450 SWIVEL BRACKETSWIVEL BRACKET
-
8832451 REVERSE LOCKREVERSE LOCK
-
917-832452 LOCK PINLOCK PIN
-
1010-832453 BOLTBOLT
-
1124-832454 SPRINGSPRING
-
1212-832378 WASHERWASHER
-
1310-832357 BOLTBOLT
-
1413-832383 LOCKWASHERLOCKWASHER
-
1511-832375 NUTNUT
-
1653-832455 SNAP RINGSNAP RING
-
1710-832456 TILT PINTILT PIN
-
1818-832457 COTTER PINCOTTER PIN
-
1923-832458 SLEEVE (PLASTIC)SLEEVE (PLASTIC)
-
2023-832459 TENSION (PLASTIC)TENSION (PLASTIC)
-
21832460 PLATEPLATE
-
2210-832511 BOLT (M6 X 30)BOLT (M6 X 30)
-
2210-832356 BOLT (1/4 X 1-1/4)BOLT (1/4 X 1-1/4)
-
2313-832382 LOCKWASHERLOCKWASHER
-
24832461 CARRYING HANDLECARRYING HANDLE
-
2510-832352 BOLTBOLT
-
2613-832382 LOCKWASHERLOCKWASHER
-
271599-832462 DRIVESHAFT HOUSINGDRIVESHAFT HOUSING
-
2810-832352 BOLT (1/4 X 3/4)BOLT (1/4 X 3/4)
-
2910-832354 BOLT (1/4 X 1)BOLT (1/4 X 1)
-
3013-832382 LOCKWASHERLOCKWASHER
-
31832495 STEERING HANDLESTEERING HANDLE
-
32832496 GRIPGRIP
-
3310-832358 BOLT (M8 X 40)BOLT (M8 X 40)
-
3413-832383 LOCKWASHERLOCKWASHER
-
3512-832497 WASHERWASHER
-
3611-832375 NUTNUT
-
3710-832364 SCREW (1/4 X 1)SCREW (1/4 X 1)
-
3813-832382 LOCKWASHERLOCKWASHER
