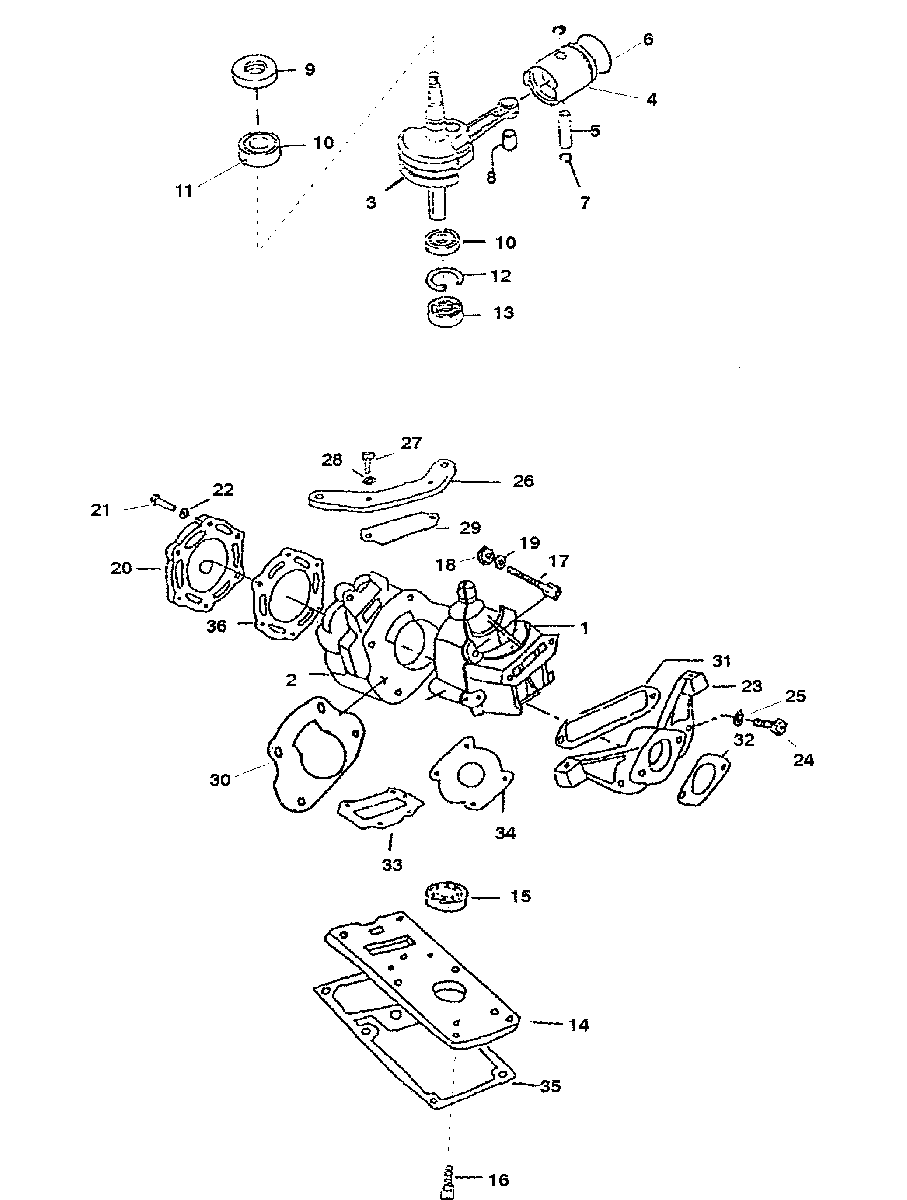

POWERHEAD/GASKET KIT для Mariner - 2 H.P. THRUSTER (EXPORT) 0G413201 AND UP
-
№АртикулНазвание
-
1878-832393 CRANKCASECRANKCASE
-
2979-832394 CYLINDER BLOCKCYLINDER BLOCK
-
3463-832395 CRANKSHAFTCRANKSHAFT
-
4779-832396 PISTONPISTON
-
541-832397 WRIST PINWRIST PIN
-
639-832398 PISTON RINGPISTON RING
-
741-832399 WRIST PIN CLIPSWRIST PIN CLIPS
-
831-832400 BEARINGBEARING
-
926-832388 OIL SEALOIL SEAL
-
1030-832508 BEARINGBEARING
-
1117-832509 BEARING STOPPERBEARING STOPPER
-
12832390 SNAP RINGSNAP RING
-
1326-832388 OIL SEAL (17 X 35 X 8)OIL SEAL (17 X 35 X 8)
-
14832402 STEM ADAPTORSTEM ADAPTOR
-
1526-832386 OIL SEAL (12 X 22 X 7)OIL SEAL (12 X 22 X 7)
-
1610-832366 BOLT (M5 X 16)BOLT (M5 X 16)
-
1710-832368 BOLT (M6 X 60)BOLT (M6 X 60)
-
1811-832374 NUTNUT
-
1913-832384 LOCKWASHERLOCKWASHER
-
20979-832403 CYLINDER HEADCYLINDER HEAD
-
2110-832352 BOLT (M6 X 20)BOLT (M6 X 20)
-
2213-832382 LOCKWASHERLOCKWASHER
-
23832404 INTAKE MANIFOLDINTAKE MANIFOLD
-
2410-832353 BOLT (M6 X 25)BOLT (M6 X 25)
-
2513-832381 LOCKWASHERLOCKWASHER
-
26832405 BRACKETBRACKET
-
2710-832365 BOLT (M5 X 12)BOLT (M5 X 12)
-
2813-832379 LOCKWASHERLOCKWASHER
-
-27-832406 GASKET KITGASKET KIT
-
2990-8M0143356 GASKET-BRACKETGASKET-BRACKET
-
3090-8M0143356 GASKET-CYLINDER BLOCKGASKET-CYLINDER BLOCK
-
3190-8M0143356 GASKET-INTAKE MANIFOLDGASKET-INTAKE MANIFOLD
-
3290-8M0143356 GASKET-CARBURETORGASKET-CARBURETOR
-
3390-8M0143356 GASKET-EXHAUSTGASKET-EXHAUST
-
3490-8M0143356 GASKET-CRANKCASEGASKET-CRANKCASE
-
3590-8M0143356 GASKET-UPPER STEMGASKET-UPPER STEM
-
3627-832407 GASKET-CYLINDER HEADGASKET-CYLINDER HEAD
