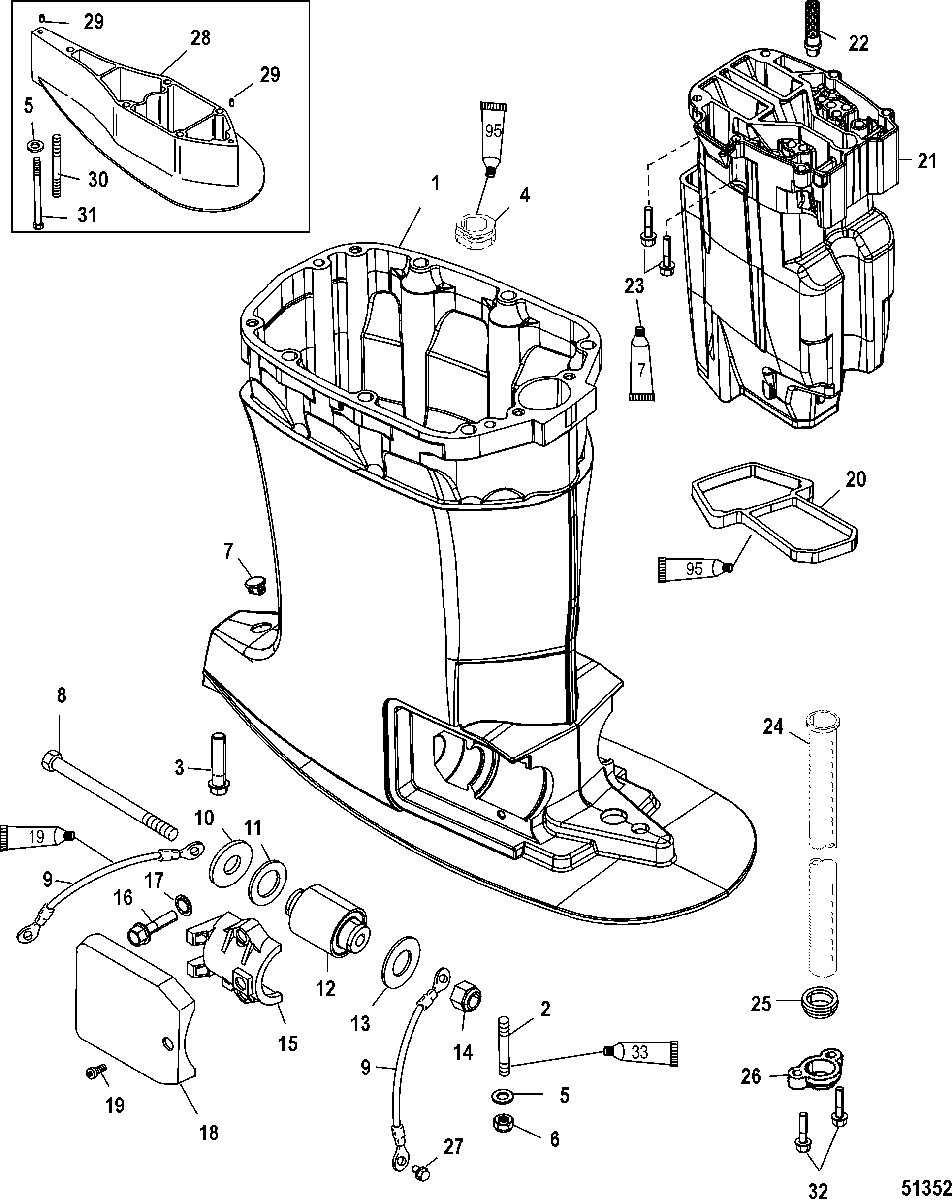

Driveshaft Housing and Exhaust Tube для Mariner - 200 (3.0L EFI) 0T801000 THRU 1B417701
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(Long) SN# 1B226999 & BelowHOUSING ASSEMBLY, Driveshaft
(Long) SN# 1B226999 & Below -
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(Long) SN# 1B227000 & UpHOUSING ASSEMBLY, Driveshaft
(Long) SN# 1B227000 & Up -
13519-832938A06 HOUSING ASSEMBLY, Driveshaft
(X-Long/XX-Long)HOUSING ASSEMBLY, Driveshaft
(X-Long/XX-Long) -
216-8M0070951 STUD, (M12 x 52)
(Long/X-Long)STUD, (M12 x 52)
(Long/X-Long) -
310-8M0102995 SCREW, (M12 x 35 MM)
(Long/X-Long)SCREW, (M12 x 35 MM)
(Long/X-Long) -
425-8331231 GROMMETGROMMET
-
512-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
611-896895 NUT, (M12 x 1.75)NUT, (M12 x 1.75)
-
719-64649 PLUGPLUG
-
810-898834 SCREW, (M14 x 178)
SN# 1B226999 & BelowSCREW, (M14 x 178)
SN# 1B226999 & Below -
810-898834 BOLT, (M14 x 178)
SN# 1B227000 & UpBOLT, (M14 x 178)
SN# 1B227000 & Up -
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1112-8154331 WASHER, (1.25 x 2.00 x .19)WASHER, (1.25 x 2.00 x .19)
-
128137711 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUTNUT
-
15879150A90 CLAMPCLAMP
-
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
18879150A90 COVER, BlackCOVER, Black
-
1910-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
208329321 SEALSEAL
-
21833116A4 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
2235-8M0026113 STRAINERSTRAINER
-
2310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2432-8M0042785 TUBE, Water
(Long)TUBE, Water
(Long) -
2432-8M0042786 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
2432-8M0042787 TUBE, Water
(XX-Long)TUBE, Water
(XX-Long) -
25832940001 SEAL
SN# 0T970000 & BelowSEAL
SN# 0T970000 & Below -
25832940001 SEAL
SN# 0T980000 & UpSEAL
SN# 0T980000 & Up -
268329391 CLAMPCLAMP
-
2710-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
288M0105088 SPACER
(XX-Long)SPACER
(XX-Long) -
2917-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-Long)PIN, Dowel - Without Hole (.375 x .625)
(XX-Long) -
3016-8M0008047 STUD, (M12 x 179)
(XX-Long)STUD, (M12 x 179)
(XX-Long) -
3110-857137 SCREW, (M12 x 160)
(XX-Long)SCREW, (M12 x 160)
(XX-Long) -
3210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
