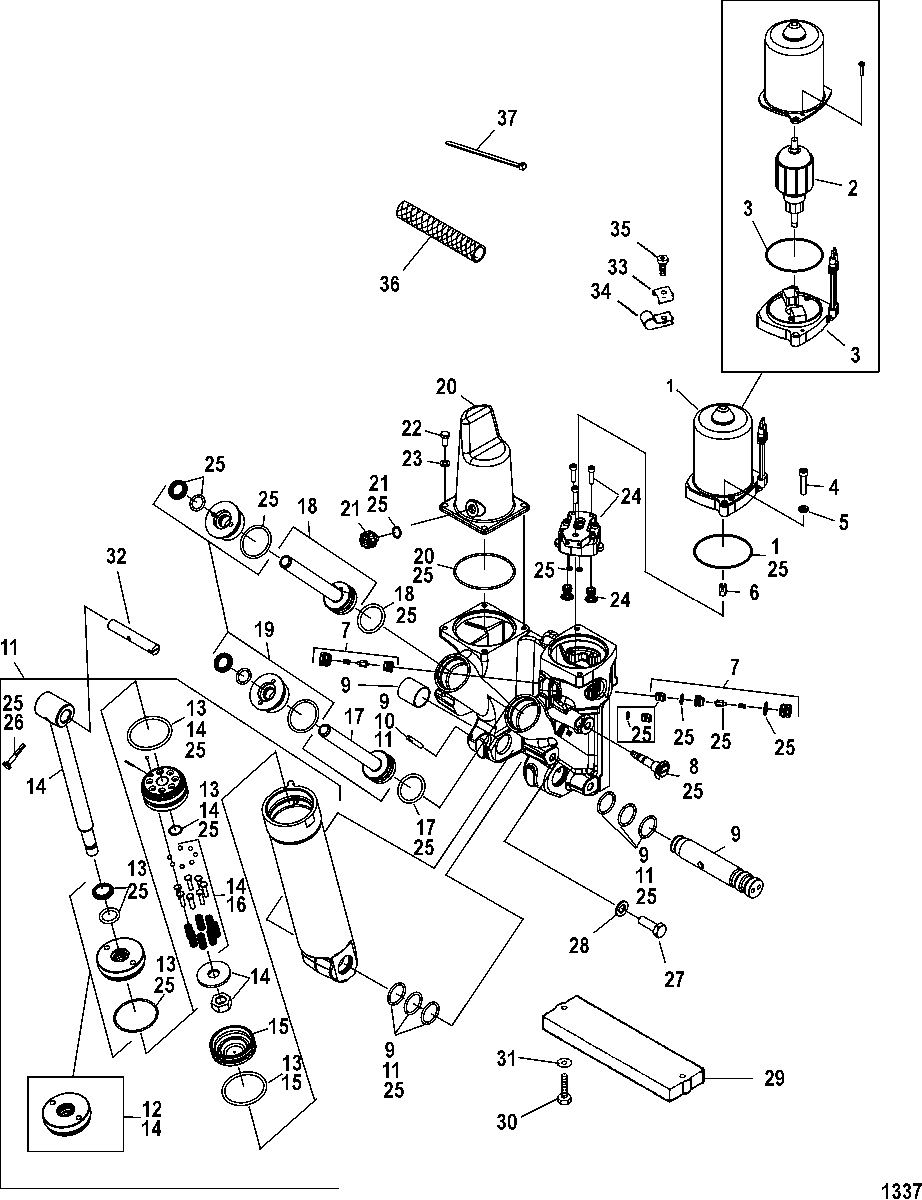

Power Trim Components для Mariner - 200 (3.0L EFI) 0T801000 THRU 1B417701
-
№АртикулНазвание
-
-855998A11 POWER TRIM, Complete
SN# 1B226999 & BelowPOWER TRIM, Complete
SN# 1B226999 & Below -
-855998A11 POWER TRIM ASSEMBLY, Complete
SN# 1B227000 & UpPOWER TRIM ASSEMBLY, Complete
SN# 1B227000 & Up -
18M0031551 TRIM MOTORTRIM MOTOR
-
2NSS NOT SOLD SEPARATE, ArmatureNOT SOLD SEPARATE, Armature
-
3NSS NOT SOLD SEPARATE, End FrameNOT SOLD SEPARATE, End Frame
-
410-82494830 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
513-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
68M0090403 DRIVESHAFTDRIVESHAFT
-
7878410A1 PO CHECK KITPO CHECK KIT
-
8893929A01 MANUAL RELEASE ASSEMBLY
(Includes Reference #26)MANUAL RELEASE ASSEMBLY
(Includes Reference #26) -
9878241A03 SHAFT KITSHAFT KIT
-
1017-878267 PINPIN
-
11898479A03 TILT CYLINDER ASSEMBLY
SN# 1B226999 & BelowTILT CYLINDER ASSEMBLY
SN# 1B226999 & Below -
11898479A03 TILT CYLINDER ASSEMBLY
SN# 1B227000 & UpTILT CYLINDER ASSEMBLY
SN# 1B227000 & Up -
128M0090322 GUIDE KIT
(Includes Reference #26)GUIDE KIT
(Includes Reference #26) -
13878409A1 O-RING KIT
(Includes Reference #26)O-RING KIT
(Includes Reference #26) -
148M0090322 SHOCK ROD KIT
(Includes Reference #26)SHOCK ROD KIT
(Includes Reference #26) -
15878242A02 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
168M0090322 REPAIR KIT, Check Valve
(Includes Reference #26)REPAIR KIT, Check Valve
(Includes Reference #26) -
17878414T01 PISTON ASSEMBLYPISTON ASSEMBLY
-
18878413A1 PISTON ASSEMBLYPISTON ASSEMBLY
-
191100-8M0021648 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
20878264A1 RESERVOIR KITRESERVOIR KIT
-
2119-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
2210-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2312-4002315 WASHERWASHER
-
24892251A01 PUMP KITPUMP KIT
-
25878408A1 REPAIR KIT, Power TrimREPAIR KIT, Power Trim
-
2617-821539 PIN, TrilobePIN, Trilobe
-
2710-858771 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2812-4002319 WASHERWASHER
-
2997-818298Q1 ANODE KITANODE KIT
-
3010-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3299625002 SHAFT
SN# 0T979999 & BelowSHAFT
SN# 0T979999 & Below -
3299625002 SHAFT
SN# 0T980000 & UpSHAFT
SN# 0T980000 & Up -
338M0084613 C WASHERC WASHER
-
3454-26550 CLAMPCLAMP
-
3510-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
3632-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)
-
3754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
