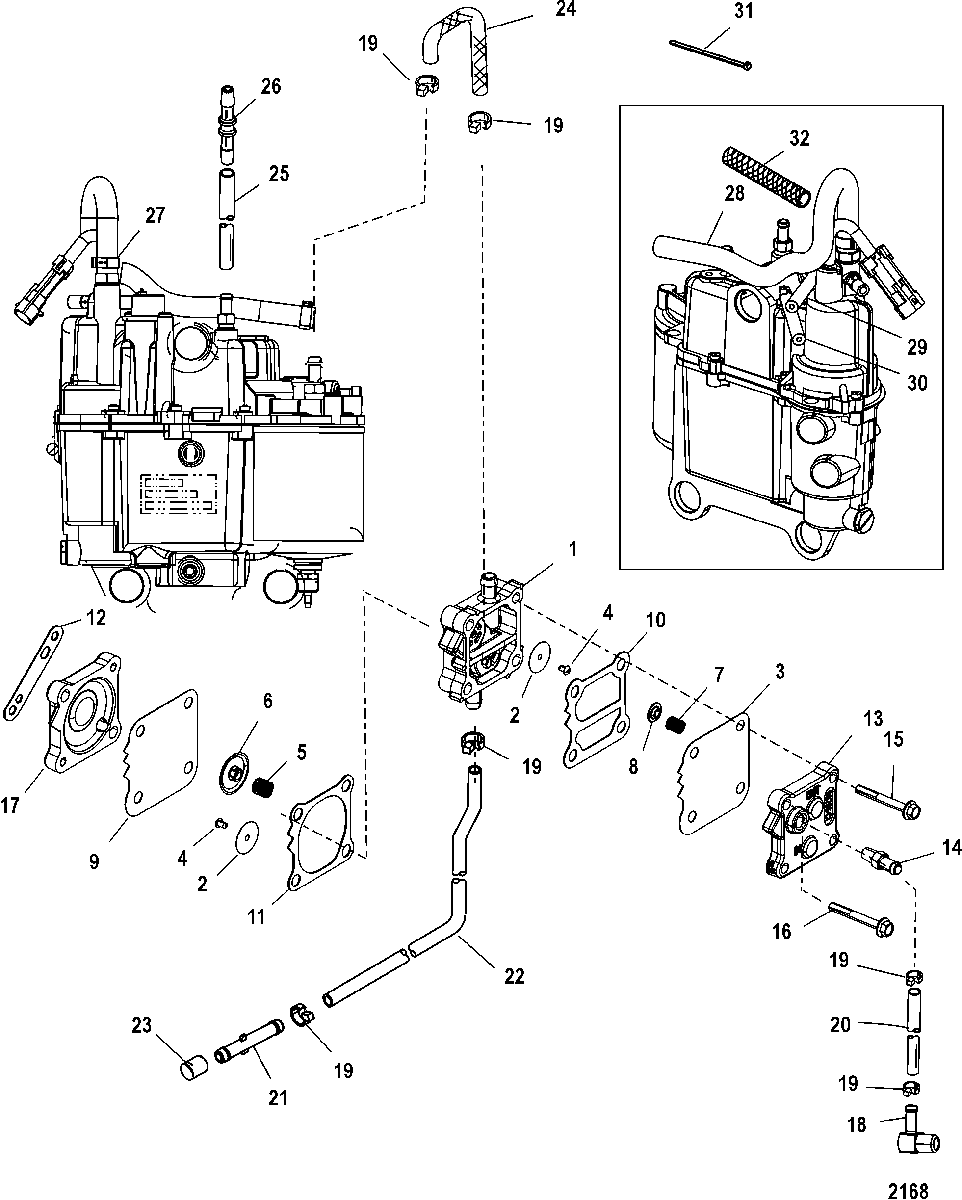

Fuel Pump для Mariner - 200 (3.0L EFI) 0T801000 THRU 1B417701
-
№АртикулНазвание
-
-14360A78 PUMP KIT, FuelPUMP KIT, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
-21-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
2NSS NOT SOLD SEPARATE, Disc Check ValveNOT SOLD SEPARATE, Disc Check Valve
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
11NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
1227-987691 GASKETGASKET
-
13987752 PLATEPLATE
-
1422-16604 FITTING, Straight (.125-27)FITTING, Straight (.125-27)
-
1510-82104540 SCREW, (M5 x 40), Fuel PumpSCREW, (M5 x 40), Fuel Pump
-
1610-82130050 SCREW, (M6 x 50), Pump to CrankcaseSCREW, (M6 x 50), Pump to Crankcase
-
17144303 BASEBASE
-
1822-856842 ELBOW, To CrankcaseELBOW, To Crankcase
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2032-8M0064783 HOSE, Pulse LineHOSE, Pulse Line
-
2122-822769 CONNECTORCONNECTOR
-
2232-8M0064778 HOSEHOSE
-
23NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
2432-8M0064780 HOSE/SLEEVEHOSE/SLEEVE
-
2532-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 16 Inches)HOSE, (57.00 Inches Bulk) (Cut to 16 Inches)
-
2622-858955 CONNECTORCONNECTOR
-
2754-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
2832-8839461 HOSEHOSE
-
2932-8M0054213 TUBING, (34.00 Inches Bulk) (Cut to 15 Inches) To Elbow on PlenumTUBING, (34.00 Inches Bulk) (Cut to 15 Inches) To Elbow on Plenum
-
3032-8M0054213 TUBING, (34.00 Inches Bulk) (Cut to 28 Inches) To Oil PumpTUBING, (34.00 Inches Bulk) (Cut to 28 Inches) To Oil Pump
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3232-883965 CONDUITCONDUIT
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-883892A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-883893A07 POWERHEAD ASSEMBLY
(3L WORK)POWERHEAD ASSEMBLY
(3L WORK) -
-883894A07 POWERHEAD ASSEMBLY
(250)POWERHEAD ASSEMBLY
(250) -
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
