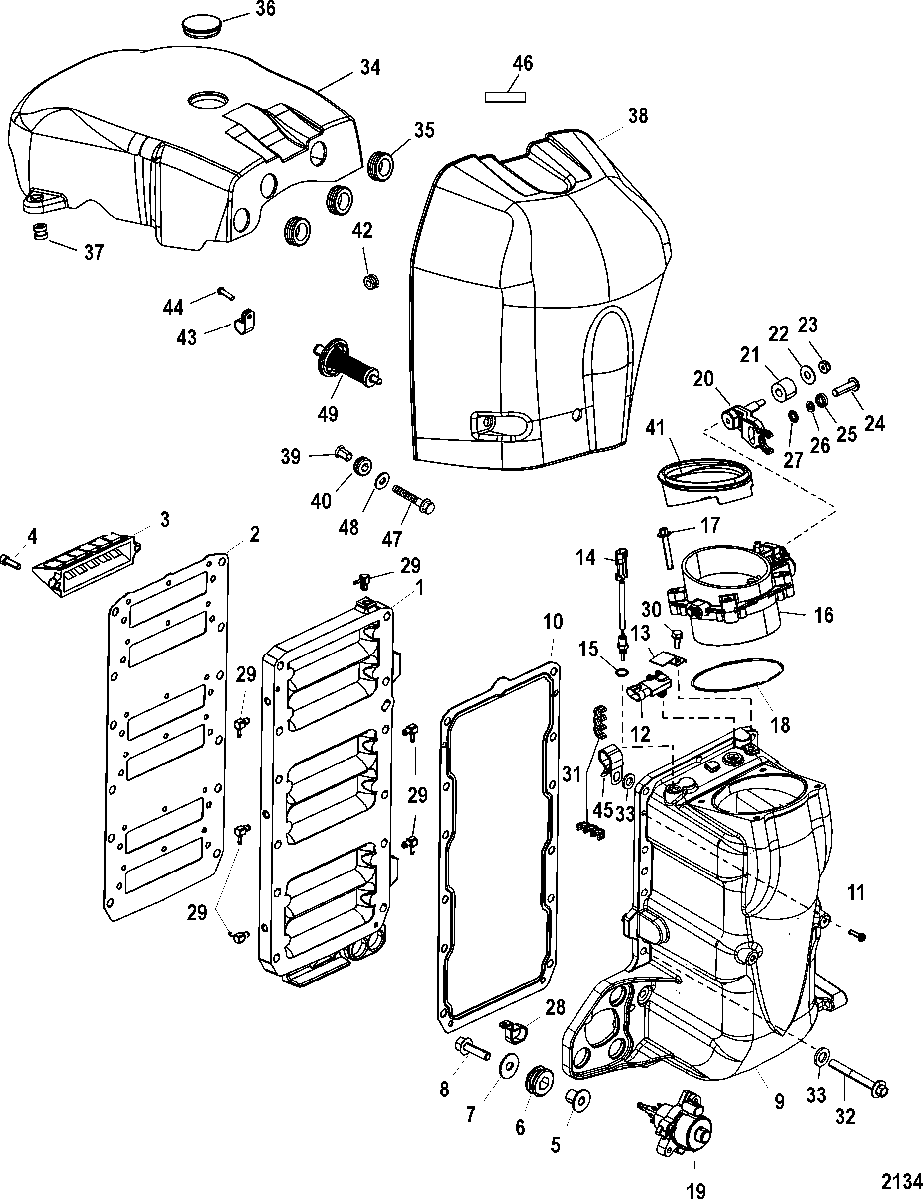

Air Handler для Mariner - 200 (DFI) 3.0L 0T801000 THRU 1B417701

№

Артикул

Название
-

885594T05 AIR HANDLER ASSEMBLY

AIR HANDLER ASSEMBLY

349 290 ₽
1

858541T3 PLATE

PLATE

15 640 ₽
2

27-804680 GASKET

GASKET

3 560 ₽
3

828623T6 REED BLOCK ASSEMBLY

REED BLOCK ASSEMBLY

16 670 ₽
4

10-8555252 SCREW, (M6)

SCREW, (M6)

200 ₽
5

23-855364 BUSHING

BUSHING

460 ₽
6

25-855362001 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

230 ₽
6

25-855362001 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

230 ₽
7

12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel

WASHER, (.344 x 1.00 x .063) Stainless Steel

50 ₽
8

10-81893430 SCREW, (M8 x 30)

SCREW, (M8 x 30)

670 ₽
9

858539T4 PLENUM KIT, Air
SN# 0T979999 & Below

PLENUM KIT, Air
SN# 0T979999 & Below

19 090 ₽
9

858708T1 PLENUM KIT, Air
SN# 0T980000 & Up

PLENUM KIT, Air
SN# 0T980000 & Up

16 970 ₽
10

27-804679004 GASKET
SN# 0T979999 & Below

GASKET
SN# 0T979999 & Below

10 480 ₽
10

27-804679004 GASKET
SN# 0T980000 & Up

GASKET
SN# 0T980000 & Up

10 480 ₽
11

10-883942 SCREW, (M4 x 16)

SCREW, (M4 x 16)

270 ₽
12

854445 SENSOR, MAP

SENSOR, MAP

10 800 ₽
13

884522 BRACKET, MAP Sensor

BRACKET, MAP Sensor

1 020 ₽
14

885342002 SENSOR ASSEMBLY

SENSOR ASSEMBLY

3 370 ₽
15

25-896699 O-RING, (.351 x .072)

O-RING, (.351 x .072)

830 ₽
16

883949T03 THROTTLE BODY KIT

THROTTLE BODY KIT

36 890 ₽
17

10-82130040 SCREW, (M6 x 40)

SCREW, (M6 x 40)

520 ₽
18

25-855426 O-RING

O-RING

2 870 ₽
19

8M0128080 PUMP ASSEMBLY, Oil

PUMP ASSEMBLY, Oil

75 780 ₽
20

858851A03 LEVER ASSEMBLY, Throttle

LEVER ASSEMBLY, Throttle

2 860 ₽
21

8M0072162 ROLLER

ROLLER

1 260 ₽
22

12-56681 WASHER, (.203 x .500 x .032)

WASHER, (.203 x .500 x .032)

140 ₽
23

11-826709104 NUT, (#8-32) Stainless Steel

NUT, (#8-32) Stainless Steel

150 ₽
24

10-889354 SCREW, Special

SCREW, Special

790 ₽
25

8M0095734 WASHER, Cupped

WASHER, Cupped

570 ₽
26

8M0095734 WASHER, Spool

WASHER, Spool

570 ₽
27

13-69432 LOCKWASHER, External (#10)

LOCKWASHER, External (#10)

100 ₽
28

54-804842 CLAMP

CLAMP

1 030 ₽
29

21-858870 CHECK VALVE

CHECK VALVE

3 980 ₽
30

10-1993716 SCREW, (M6 x 16)

SCREW, (M6 x 16)

180 ₽
31

859230T RETAINER

RETAINER

380 ₽
32

10-82130040 SCREW, (M6 x 40)

SCREW, (M6 x 40)

520 ₽
33

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
34

880083T1 COVER ASSEMBLY

COVER ASSEMBLY

12 220 ₽
35

25-13467 GROMMET, (.88 Inside Diameter)

GROMMET, (.88 Inside Diameter)

430 ₽
36

19-89219001 PLUG
SN# 0T979999 & Below

PLUG
SN# 0T979999 & Below

350 ₽
36

19-89219001 PLUG
SN# 0T980000 & Up

PLUG
SN# 0T980000 & Up

350 ₽
37

25-821555001 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

280 ₽
37

25-821555001 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

280 ₽
38

881909T3 ATTENUATOR ASSEMBLY

ATTENUATOR ASSEMBLY

27 540 ₽
39

23-856954 BUSHING

BUSHING

440 ₽
40

25-834985 GROMMET

GROMMET

200 ₽
41

882767 SEAL

SEAL

1 510 ₽
42

25-20116 GROMMET

GROMMET

280 ₽
43

54-23567 CLIP

CLIP

350 ₽
44

10-69570 SCREW, (#10-16 x .750)

SCREW, (#10-16 x .750)

150 ₽
45

54-858902 CLAMP

CLAMP

400 ₽
46

37-881865 DECAL, Caution-Start in Gear
(Start In Gear)

DECAL, Caution-Start in Gear
(Start In Gear)

670 ₽
47

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)

270 ₽
48

12-65567 WASHER, (.265 x .750 x .048) Stainless Steel

WASHER, (.265 x .750 x .048) Stainless Steel

200 ₽
49

35-880084T01 FILTER ASSEMBLY

FILTER ASSEMBLY

4 770 ₽
-

27-832934A00 GASKET SET, Powerhead

GASKET SET, Powerhead

14 760 ₽
-

854198A07 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

952 300 ₽
-

877869A07 POWERHEAD ASSEMBLY
(225)

POWERHEAD ASSEMBLY
(225)

935 860 ₽
