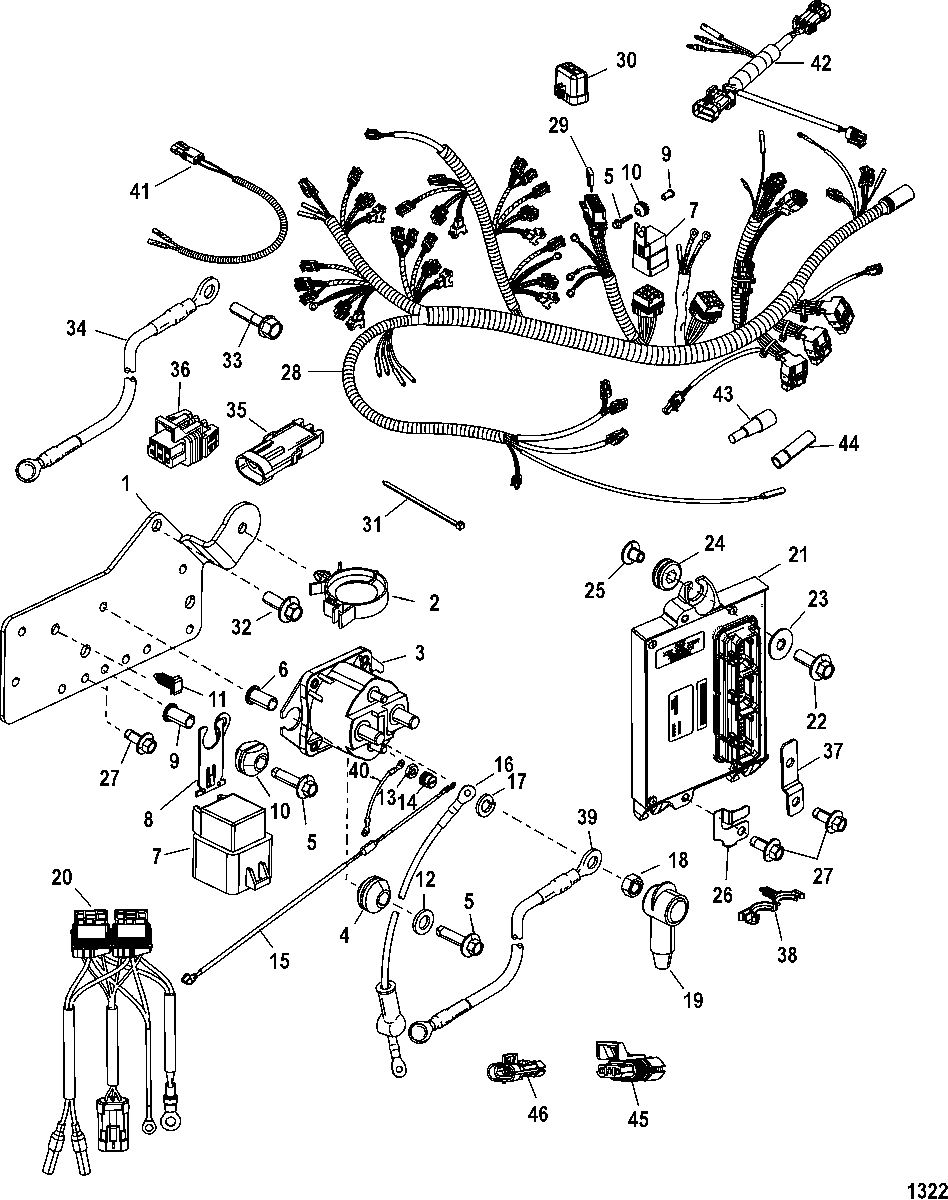

Solenoid Plate(Serial Number 1B226999 & Below) для Mariner - 200 (DFI) 3.0L 0T801000 THRU 1B417701
-
№АртикулНазвание
-
1858366T2 PLATEPLATE
-
254-858755 CLIP, (1.00)CLIP, (1.00)
-
389-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
425-822179 GROMMETGROMMET
-
510-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
623-818968 BUSHINGBUSHING
-
7882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
8828102 BRACKETBRACKET
-
923-818968 BUSHINGBUSHING
-
1025-818967 GROMMETGROMMET
-
1154-828991T CLIPCLIP
-
1212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1411-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
1584-878231A6 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
1684-882829A1 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
1713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1811-68292 NUT, (.312-18)NUT, (.312-18)
-
1985-8500671 BOOT, Insulator - RedBOOT, Insulator - Red
-
2084-819514T18 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2189790621T PCM, Propulsion Control Module
(200) SN# 0T979999 & BelowPCM, Propulsion Control Module
(200) SN# 0T979999 & Below -
2189790621T PCM, Propulsion Control Module
(200) SN# 0T980000 & UpPCM, Propulsion Control Module
(200) SN# 0T980000 & Up -
2189790622T PCM, Propulsion Control Module
(225) SN# 0T979999 & BelowPCM, Propulsion Control Module
(225) SN# 0T979999 & Below -
2189790622T PCM, Propulsion Control Module
(225) SN# 0T980000 & UpPCM, Propulsion Control Module
(225) SN# 0T980000 & Up -
2210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2425-834985 GROMMETGROMMET
-
2523-856954 BUSHINGBUSHING
-
268590881 CLIPCLIP
-
2710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2884-878082T8 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
2988-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
2988-832969T05 FUSE, Mini - Tan - 5 Ampere
(5 AMP)FUSE, Mini - Tan - 5 Ampere
(5 AMP) -
30858754 COVER, FuseCOVER, Fuse
-
-879346A49 HARNESS ASSEMBLY (DIRECT INJECTOR)HARNESS ASSEMBLY (DIRECT INJECTOR)
-
-879346A50 HARNESS ASSEMBLY (FUEL INJECTOR)HARNESS ASSEMBLY (FUEL INJECTOR)
-
-84-881262A2 HARNESS ASSEMBLY, Alternator, AlternatorHARNESS ASSEMBLY, Alternator, Alternator
-
-879346A41 HARNESS ASSEMBLY (TPS)HARNESS ASSEMBLY (TPS)
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
3310-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
3484-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
35832948A1 CONNECTOR ASSEMBLY
(TRACKER)CONNECTOR ASSEMBLY
(TRACKER) -
36881065A1 CONNECTOR, 6 Pin PlugCONNECTOR, 6 Pin Plug
-
37858953 BRACKETBRACKET
-
3854-859376 CLIPCLIP
-
3984-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
4084-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
4184-859316T1 HARNESS ASSEMBLY, Diagnostic AdaptorHARNESS ASSEMBLY, Diagnostic Adaptor
-
4284-859244T1 HARNESS ASSEMBLY, Digital AdaptorHARNESS ASSEMBLY, Digital Adaptor
-
4313541 PLUG, MalePLUG, Male
-
4413540 CAP, Female
(TRACKER)CAP, Female
(TRACKER) -
45881175A1 CAP ASSEMBLY, Connector
(COUNTER ROTATION)CAP ASSEMBLY, Connector
(COUNTER ROTATION) -
46881176A1 CAP ASSEMBLY, Connector
(COUNTER ROTATION)CAP ASSEMBLY, Connector
(COUNTER ROTATION)
