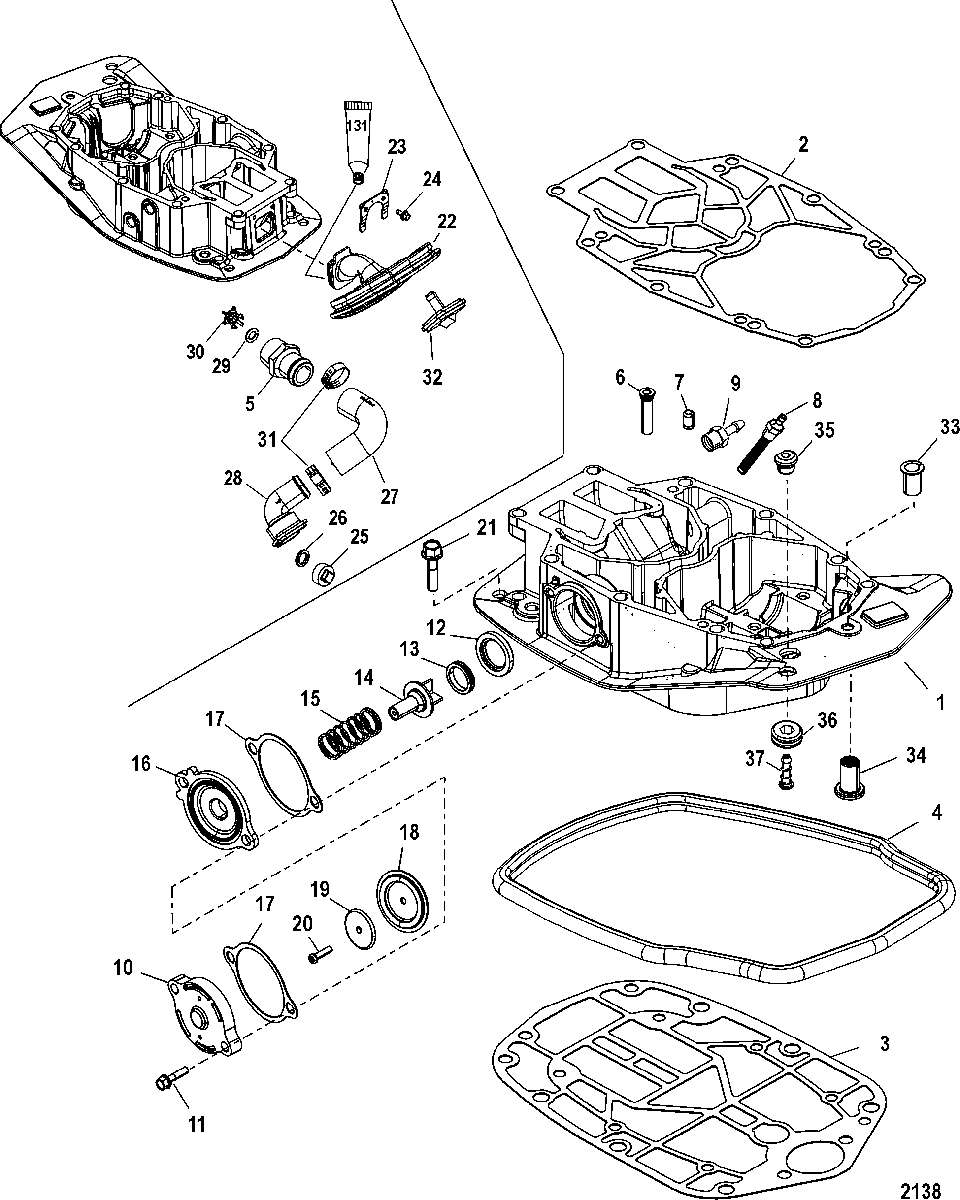

Exhaust Plate для Mariner - 200 (DFI) 3.0L 0T801000 THRU 1B417701
-
№АртикулНазвание
-
1832935A17 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (Lower)GASKET (Lower)
-
48M0043157 SEALSEAL
-
522-8320761 FITTING, Check ValveFITTING, Check Valve
-
621-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
717-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
835-8348084 STRAINERSTRAINER
-
922-887603 FITTINGFITTING
-
1065663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
12814190 CARRIERCARRIER
-
1325-814191 GROMMETGROMMET
-
14814189 POPPETPOPPET
-
1524-64878 SPRINGSPRING
-
1665664A1 PLATE ASSEMBLY, Relief ValvePLATE ASSEMBLY, Relief Valve
-
1727-88907003 GASKETGASKET
-
18648771 DIAPHRAGMDIAPHRAGM
-
1912-76451 WASHERWASHER
-
2010-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
22850306A04 BOOT KIT, Idle ExhaustBOOT KIT, Idle Exhaust
-
36888910 PLATEPLATE
-
2410-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2519-821908 PLUGPLUG
-
2612-821915 WASHERWASHER
-
2732-859626A1 FLUSH HOSE KIT (INLET)FLUSH HOSE KIT (INLET)
-
2822-8596001 FITTINGFITTING
-
2925-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
308219631 CHECK VALVECHECK VALVE
-
3154-850896 CLAMP, (28.6)CLAMP, (28.6)
-
3222-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
3323-48237 BUSHINGBUSHING
-
3443585 COUPLINGCOUPLING
-
3525-12602002 GROMMET
SN# 0T979999 & BelowGROMMET
SN# 0T979999 & Below -
3525-12602002 GROMMET
SN# 0T980000 & UpGROMMET
SN# 0T980000 & Up -
3625-822002 GROMMETGROMMET
-
3722-94848 FITTINGFITTING
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-854198A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-877869A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
