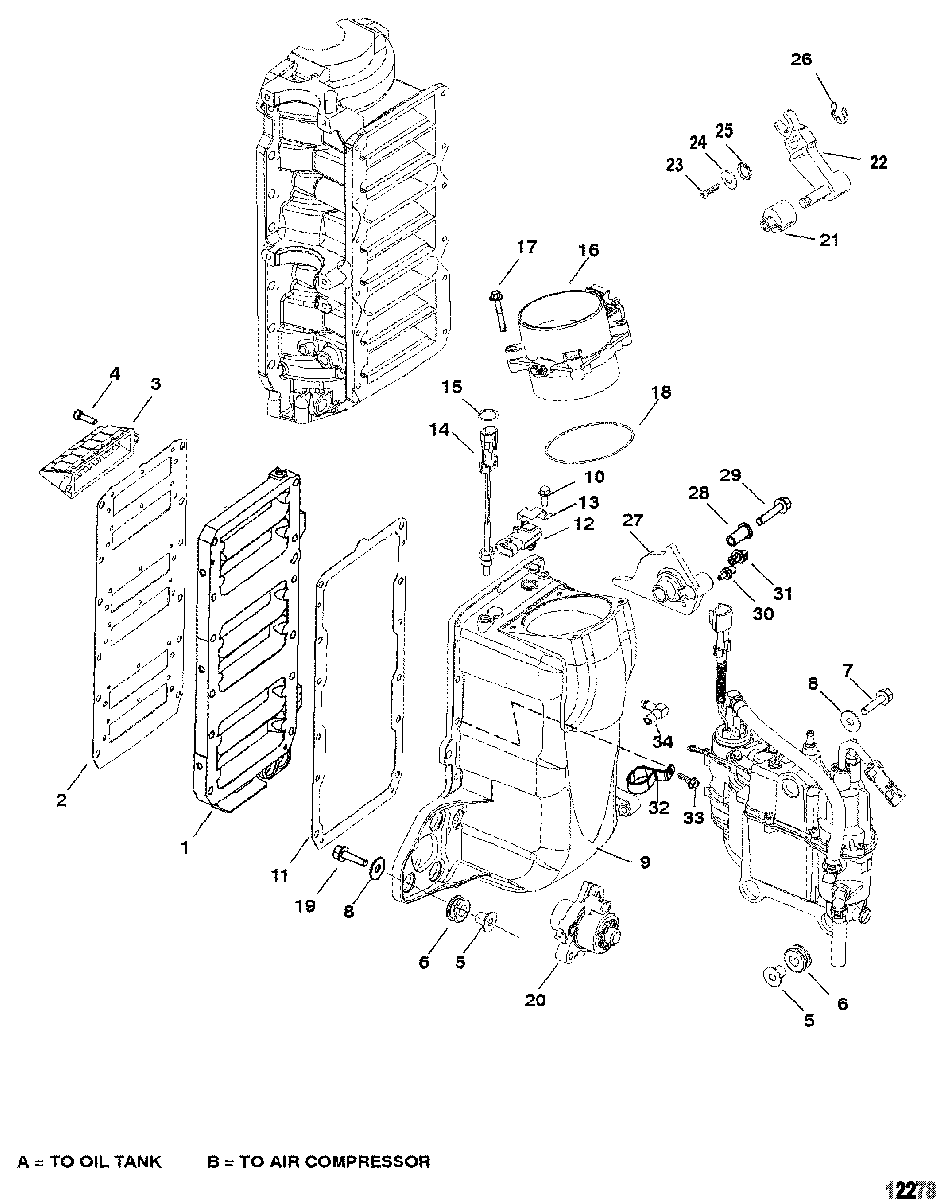

Air Handler Components для Mariner - 200 (DFI) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
-858539T1 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1858541T1 ADAPTOR PLATEADAPTOR PLATE
-
227-804680 GASKETGASKET
-
3828623T6 REED BLOCKREED BLOCK
-
410-8555252 SCREW, (M6)SCREW, (M6)
-
523-855364 BUSHINGBUSHING
-
625-855362001 GROMMETGROMMET
-
710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
812-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
9855631A2 PLENUM KIT, AirPLENUM KIT, Air
-
1010-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1127-804679004 GASKETGASKET
-
12854445 SENSOR, MAPSENSOR, MAP
-
13884522 BRACKETBRACKET
-
14889575 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1525-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
16841194T04 THROTTLE BODY KITTHROTTLE BODY KIT
-
1710-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1825-855426 O-RINGO-RING
-
1910-81893430 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
208M0128080 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
2167748 ROLLERROLLER
-
22858851A03 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
2310-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2412-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2513-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
2653-8237951 RING, RetainingRING, Retaining
-
27858353A2 CAM ASSEMBLYCAM ASSEMBLY
-
2823-856895 BUSHINGBUSHING
-
2910-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
308235694 BALL, ThreadedBALL, Threaded
-
3123-932481 BUSHINGBUSHING
-
3254-804842 CLAMPCLAMP
-
3310-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3422-856827 FITTINGFITTING
-
-854198R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number) -
-877869R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C/C2 Or 900-858483C1/C2)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C/C2 Or 900-858483C1/C2) -
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
