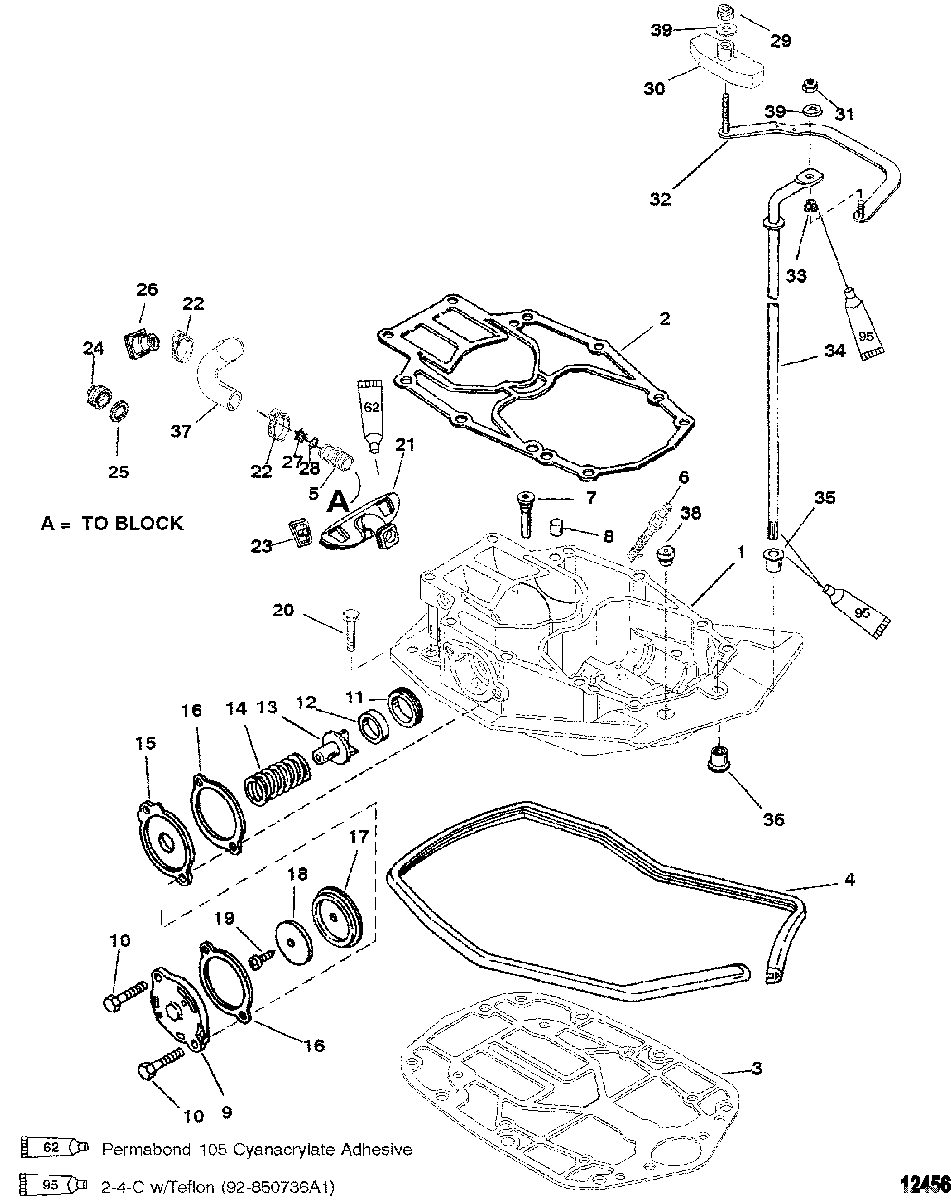

Exhaust Plate для Mariner - 200 (DFI) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
1832935A17 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET, LowerGASKET, Lower
-
48M0043157 SEALSEAL
-
522-8320761 FITTING, Check ValveFITTING, Check Valve
-
635-8348084 STRAINERSTRAINER
-
721-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
817-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
965663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1010-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
11814190 CARRIERCARRIER
-
1225-814191 GROMMETGROMMET
-
13814189 POPPETPOPPET
-
1424-64878 SPRINGSPRING
-
1565664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1627-88907003 GASKETGASKET
-
17648771 DIAPHRAGMDIAPHRAGM
-
1812-76451 WASHERWASHER
-
1910-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2010-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
21850306A04 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2254-850896 CLAMP, (28.6)CLAMP, (28.6)
-
2322-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2419-821908 PLUGPLUG
-
2512-821915 WASHERWASHER
-
2622-821952 FITTINGFITTING
-
278219631 CHECK VALVECHECK VALVE
-
2825-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
2911-401386 NUT, (M6)NUT, (M6)
-
308539682 SLIDESLIDE
-
3111-401386 NUT, (M6)NUT, (M6)
-
32883142A03 SHIFT LINKSHIFT LINK
-
3323-42994 BUSHINGBUSHING
-
348M0036408 SHIFT SHAFT, Upper
(Long)SHIFT SHAFT, Upper
(Long) -
348M0046246 SHIFT SHAFT, Upper
(X-Long)SHIFT SHAFT, Upper
(X-Long) -
348240703 SHIFT SHAFT, Upper
(XX-Long)SHIFT SHAFT, Upper
(XX-Long) -
3523-48237 BUSHINGBUSHING
-
3643585 COUPLINGCOUPLING
-
3732-859626A1 HOSE, InletHOSE, Inlet
-
3825-12602002 GROMMETGROMMET
-
3912-35459 WASHERWASHER
-
-854198R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number) -
-877869R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2) -
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
