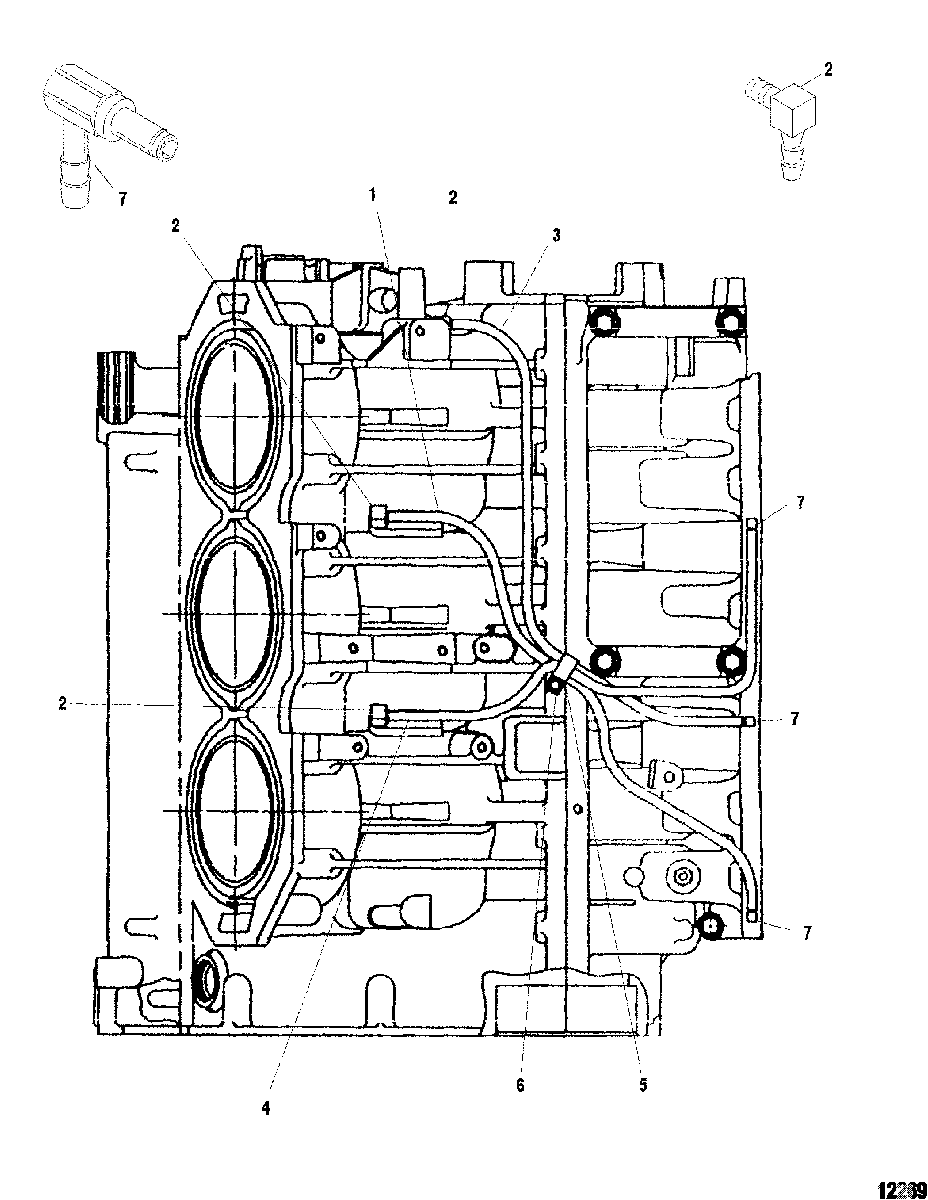

Starboard Center Main Oiling System для Mariner - 200 (DFI) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
132-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 15.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 15.00 Inch Length)
-
221-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 16.50 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 16.50 Inch Length)
-
432-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 15.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 15.00 Inch Length)
-
554-23567 CLIPCLIP
-
610-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
722-151333 ELBOWELBOW
-
-854198R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number) -
-877869R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
