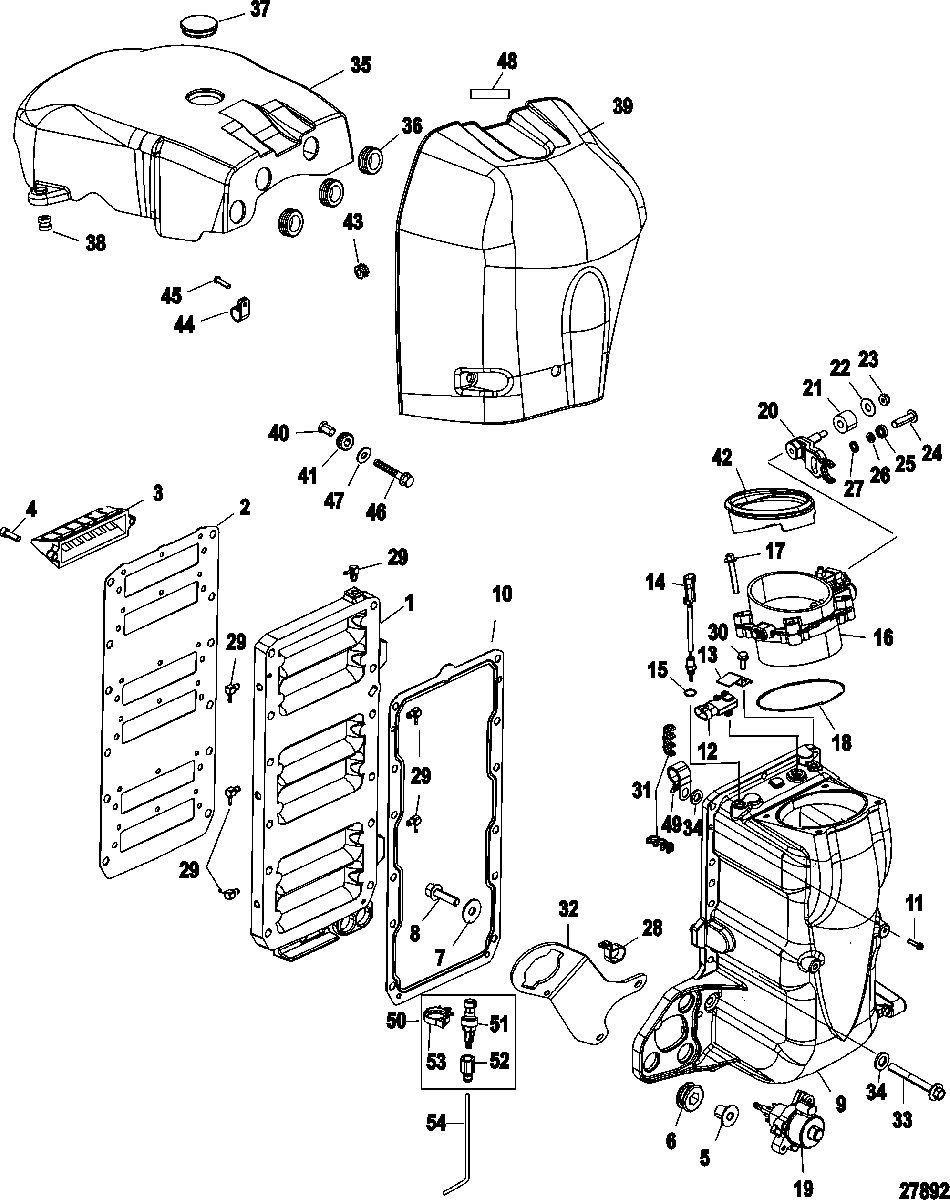

Air Handler 200/225/200 Pro XS для Mariner - 225 (DFI) 3.0L 1B504989 & Up
-
№АртикулНазвание
-
-885594T05 AIR HANDLER ASSEBMLY, CompleteAIR HANDLER ASSEBMLY, Complete
-
1858541T3 PLATEPLATE
-
227-804680 GASKETGASKET
-
3828623T6 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
410-8555252 SCREW, (M6)SCREW, (M6)
-
523-855364 BUSHINGBUSHING
-
625-855362001 GROMMETGROMMET
-
712-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
9858708T1 PLENUM KIT, AirPLENUM KIT, Air
-
1027-804679004 GASKETGASKET
-
1110-883942 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
12854445 SENSOR, MAPSENSOR, MAP
-
13884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
14885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1525-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
16883949T03 THROTTLE BODY KITTHROTTLE BODY KIT
-
1710-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1825-855426 O-RINGO-RING
-
198M0128080 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
20858851A03 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
218M0072162 ROLLERROLLER
-
2212-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2311-826709104 NUT, (#8-32) Stainless SteelNUT, (#8-32) Stainless Steel
-
2410-8M0027821 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
2512-8M0027819 WASHER, CuppedWASHER, Cupped
-
2612-8M0027820 WASHER, SpoolWASHER, Spool
-
2713-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
2854-804842 CLAMPCLAMP
-
2921-858870 CHECK VALVECHECK VALVE
-
3010-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
31859230T RETAINERRETAINER
-
328M0001447 BRACKETBRACKET
-
3310-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
35880083T1 COVER ASSEMBLYCOVER ASSEMBLY
-
3625-13467 GROMMET, (.88 Inside Diameter)GROMMET, (.88 Inside Diameter)
-
3719-89219001 PLUGPLUG
-
3825-821555001 GROMMETGROMMET
-
39881909T3 ATTENUATOR ASSEMBLYATTENUATOR ASSEMBLY
-
4023-856954 BUSHINGBUSHING
-
4125-834985 GROMMETGROMMET
-
42882767 SEALSEAL
-
4325-20116 GROMMETGROMMET
-
4454-23567 CLIPCLIP
-
4510-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
4610-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
4712-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
4837-881865 DECAL, Caution-Start in GearDECAL, Caution-Start in Gear
-
4954-858902 CLAMPCLAMP
-
50881879T25 SENSOR ASSEMBLY, PitotSENSOR ASSEMBLY, Pitot
-
51881879T11 SENSOR, Pressure (0 - 100 PSI)SENSOR, Pressure (0 - 100 PSI)
-
5222-892403 FITTINGFITTING
-
5354-883066 CLIP, (.865)CLIP, (.865)
-
5432-85944975 TUBING, (72.00 Inches Bulk), Cut to 52 InchesTUBING, (72.00 Inches Bulk), Cut to 52 Inches
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-854198A07 POWERHEAD ASSEMBLY
200/200 Pro XSPOWERHEAD ASSEMBLY
200/200 Pro XS -
-877869A07 POWERHEAD ASSEMBLY
225POWERHEAD ASSEMBLY
225
