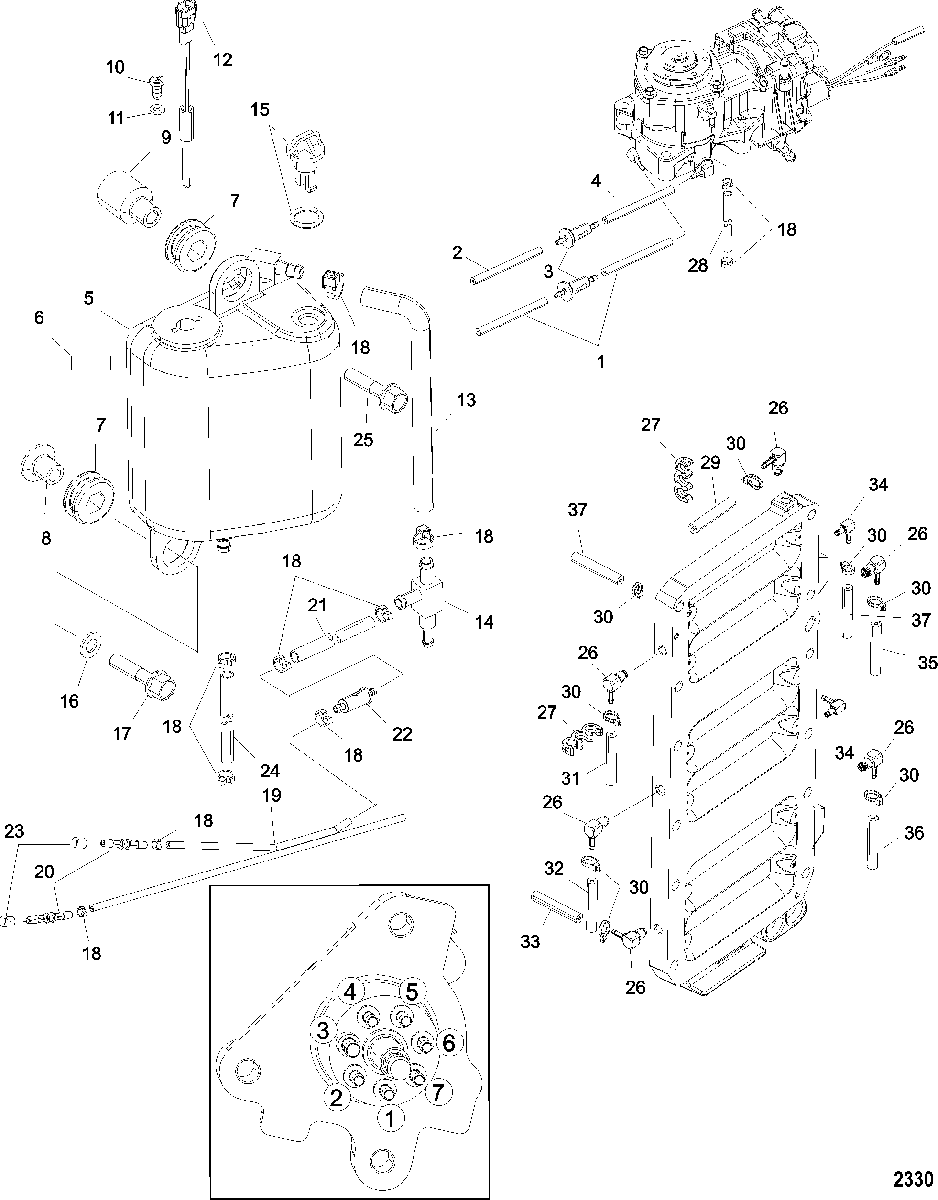

Oiling System 250 для Mariner - 225 (DFI) 3.0L 1B504989 & Up
-
№АртикулНазвание
-
132-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 11.50 InchesTUBING, (38.00 Inches Bulk), Cut to 11.50 Inches
-
232-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 5 InchesTUBING, (38.00 Inches Bulk), Cut to 5 Inches
-
335-8M0042285 FILTER, FuelFILTER, Fuel
-
432-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 9 InchesTUBING, (38.00 Inches Bulk), Cut to 9 Inches
-
51200-8M0064075 TANK, OilTANK, Oil
-
6NSS NOT SOLD SEPARATE, Decal-ReservoirNOT SOLD SEPARATE, Decal-Reservoir
-
725-855362001 GROMMETGROMMET
-
823-855364 BUSHINGBUSHING
-
923-883050 SPACERSPACER
-
1010-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
1112-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
1287-856156T04 SWITCHSWITCH
-
1332-885553 HOSEHOSE
-
1422-424254 FITTINGFITTING
-
1519-887609 PLUGPLUG
-
1612-4002318 WASHERWASHER
-
1710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1932-8752891 HOSEHOSE
-
2022-858955 CONNECTORCONNECTOR
-
2132-875283 HOSE, (2.00 Inches)HOSE, (2.00 Inches)
-
2235-875284T01 FILTER, Oil - In LineFILTER, Oil - In Line
-
23NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
2432-892830053 HOSE, (24.00 Inches Braided), Cut to 22 InchesHOSE, (24.00 Inches Braided), Cut to 22 Inches
-
2510-81893460 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
2621-858870 CHECK VALVECHECK VALVE
-
27859230T RETAINERRETAINER
-
2832-8M0054213 HOSE, (40.00 Inches Bulk), Cut to 34 InchesHOSE, (40.00 Inches Bulk), Cut to 34 Inches
-
2932-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 19.50 InchesTUBING, (38.00 Inches Bulk), Cut to 19.50 Inches
-
3056762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
3132-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 11 InchesTUBING, (38.00 Inches Bulk), Cut to 11 Inches
-
3232-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 6 InchesTUBING, (38.00 Inches Bulk), Cut to 6 Inches
-
3332-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 4 InchesTUBING, (38.00 Inches Bulk), Cut to 4 Inches
-
3422-883988 ELBOWELBOW
-
3532-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 22 InchesTUBING, (38.00 Inches Bulk), Cut to 22 Inches
-
3632-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 16.50 InchesTUBING, (38.00 Inches Bulk), Cut to 16.50 Inches
-
3732-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 7 InchesTUBING, (38.00 Inches Bulk), Cut to 7 Inches
