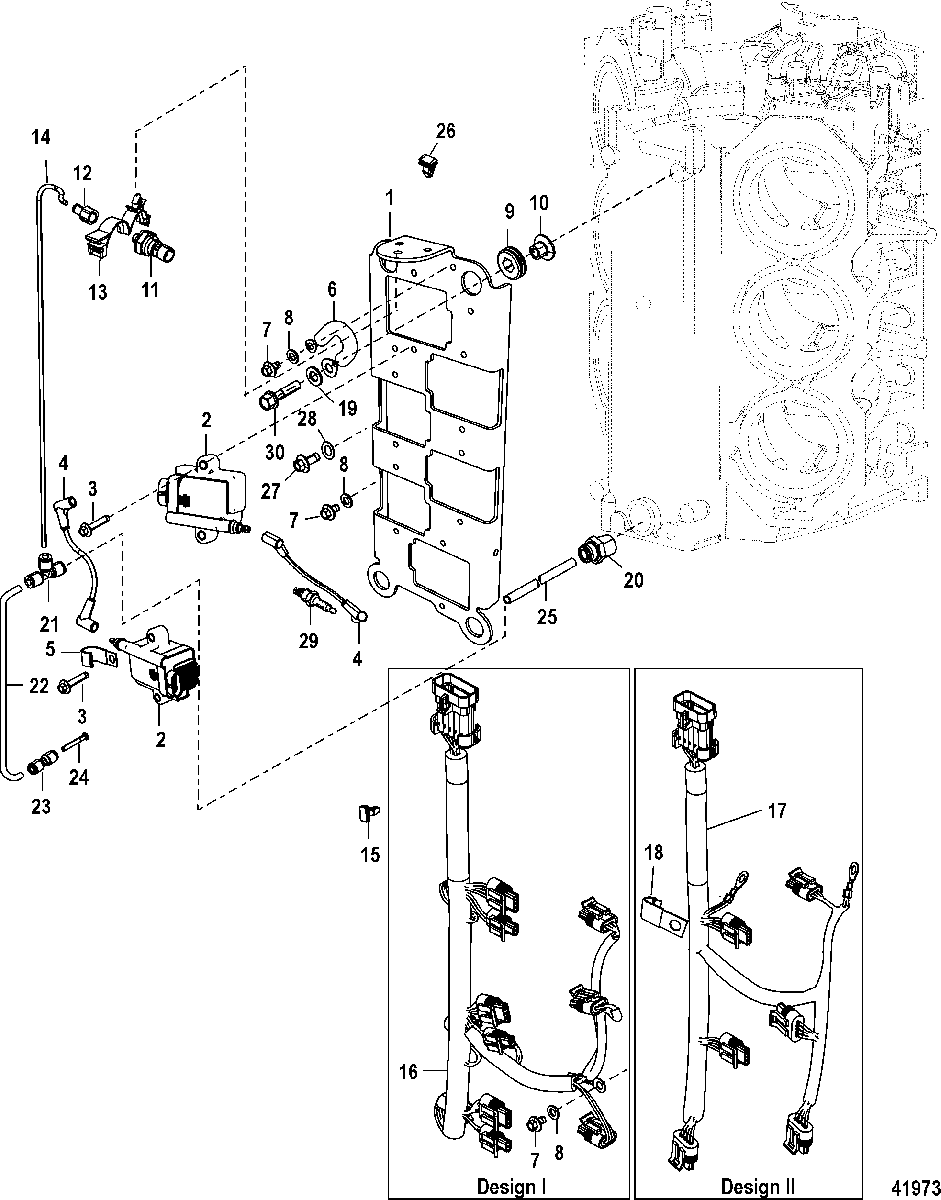

Coil Plate для Mariner - 225 (DFI) 3.0L 1B504989 & Up
-
№АртикулНазвание
-
1884272T PLATE, Coil MountingPLATE, Coil Mounting
-
2339-8M0077473 COIL ASSEMBLY, Ignition
200/225/200 Pro XSCOIL ASSEMBLY, Ignition
200/225/200 Pro XS -
2300-8M0077471 COIL, Ignition
250COIL, Ignition
250 -
310-82129125 SCREW, (M6 x 25 MM)
200/225/200 Pro XSSCREW, (M6 x 25 MM)
200/225/200 Pro XS -
310-82129130 SCREW, (M6 x 30)
250SCREW, (M6 x 30)
250 -
484-881908T CABLE SETCABLE SET
-
554-55098 J CLIPJ CLIP
-
684-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
710-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
925-833155 GROMMETGROMMET
-
1023-8502341 BUSHINGBUSHING
-
11881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
1222-892403 FITTINGFITTING
-
1354-883066 CLIP, (.865)CLIP, (.865)
-
1432-85978571 TUBING, (52.00 Inches Bulk), Cut to 18 InchesTUBING, (52.00 Inches Bulk), Cut to 18 Inches
-
1554-879962 CLIPCLIP
-
-879346A51 HARNESS ASSEMBLY, 5 PinHARNESS ASSEMBLY, 5 Pin
-
1684-892972T05 HARNESS ASSEMBLY, Coil
(Design I) (200/225/200 Pro XS) SN# 1B766792 & BelowHARNESS ASSEMBLY, Coil
(Design I) (200/225/200 Pro XS) SN# 1B766792 & Below -
1684-892972T05 HARNESS ASSEMBLY, Coil
(Design I) (250) SN# 1B757090 & BelowHARNESS ASSEMBLY, Coil
(Design I) (250) SN# 1B757090 & Below -
1784-892972T05 HARNESS ASSEMBLY, Coil
(Design I) (200/225/200 Pro XS) SN# 1B766793 & UpHARNESS ASSEMBLY, Coil
(Design I) (200/225/200 Pro XS) SN# 1B766793 & Up -
1784-892972T05 HARNESS ASSEMBLY, Coil
(Design II) (250) SN# 1B757091 & UpHARNESS ASSEMBLY, Coil
(Design II) (250) SN# 1B757091 & Up -
1854-54457 J CLIP
(Design II) (200/225/200 Pro XS) SN# 1B766793 & UpJ CLIP
(Design II) (200/225/200 Pro XS) SN# 1B766793 & Up -
1854-54457 J CLIP
(Design II) (250) SN# 1B757091 & UpJ CLIP
(Design II) (250) SN# 1B757091 & Up -
1912-4002318 WASHERWASHER
-
2022-881866 FITTINGFITTING
-
2122-875207 TEE, FittingTEE, Fitting
-
2232-85978571 TUBING, (52.00 Inches Bulk), Cut to 44 InchesTUBING, (52.00 Inches Bulk), Cut to 44 Inches
-
2322-859747 COUPLERCOUPLER
-
2422-859732 PLUGPLUG
-
2532-85978571 TUBING, (52.00 Inches Bulk), Cut to 5 InchesTUBING, (52.00 Inches Bulk), Cut to 5 Inches
-
2654-879962 CLIPCLIP
-
2710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2812-36001 WASHERWASHER
-
2933-889597Q SPARK PLUG
200/225/200 Pro XSSPARK PLUG
200/225/200 Pro XS -
2933-843220Q SPARK PLUG
250SPARK PLUG
250 -
3010-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
