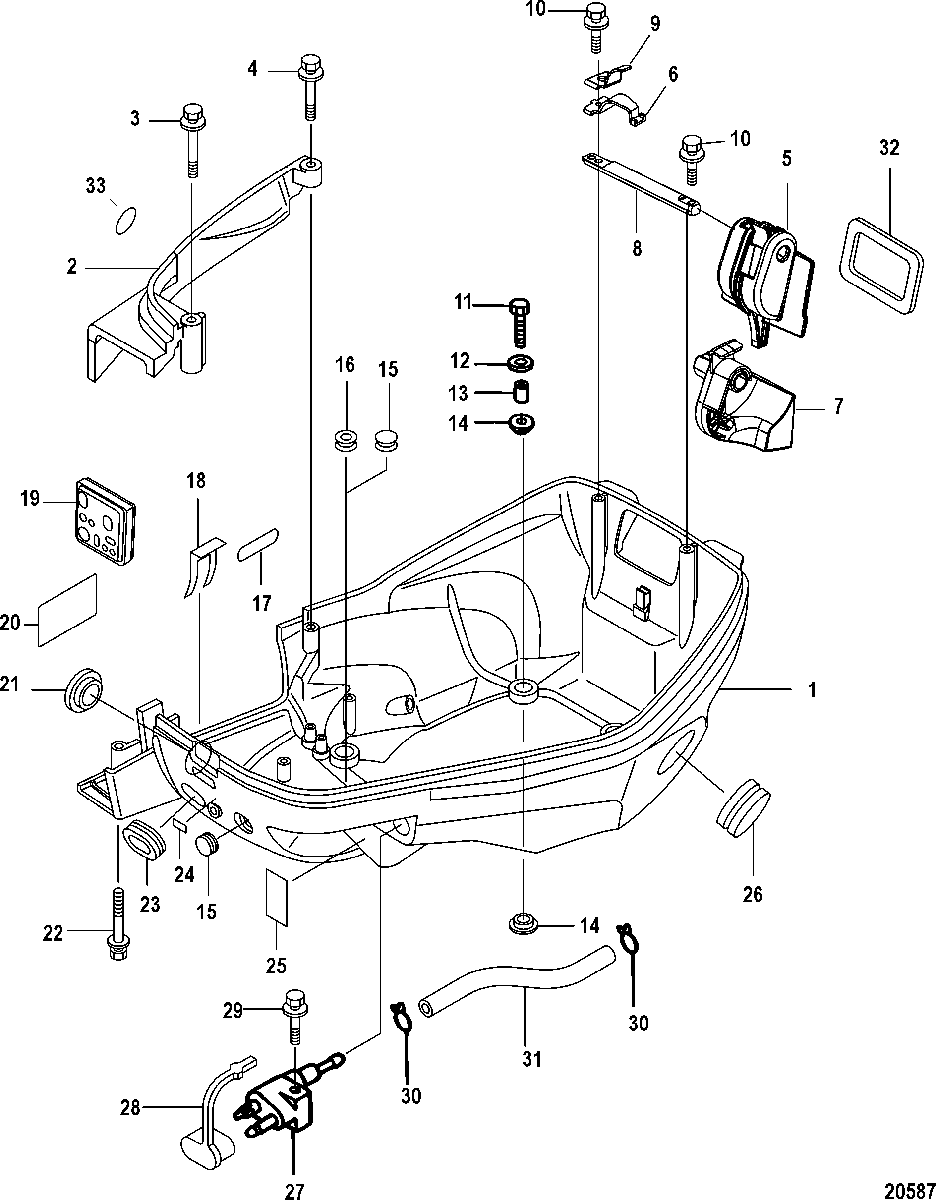

Bottom Cowl для Mariner - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
1896113T01 PAN, BottomPAN, Bottom
-
1896113T03 PAN, Bottom - CamouflagePAN, Bottom - Camouflage
-
2896114001 COVERCOVER
-
2896114002 COVER, CamouflageCOVER, Camouflage
-
2896114001 COVER
Jet 25COVER
Jet 25 -
310-879194271 SCREWSCREW
-
410-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
5896117A01 LATCH ASSEMBLY, Cowl
Use without Reference #9LATCH ASSEMBLY, Cowl
Use without Reference #9 -
5896117A01 LATCH ASSEMBLY, Cowl
Use with Reference #9LATCH ASSEMBLY, Cowl
Use with Reference #9 -
624-898101178 SPRINGSPRING
-
7898101095 HOOK LEVERHOOK LEVER
-
88M0005993 SHAFTSHAFT
-
924-8M0005561 SPRINGSPRING
-
1010-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1110-8M0124428 BOLTBOLT
-
1212-161404 WASHERWASHER
-
1323-8537154 SPACERSPACER
-
1423-8537437 MOUNT, RubberMOUNT, Rubber
-
1525-16226 GROMMET, One for Remote Control and One for Power Trim/TiltGROMMET, One for Remote Control and One for Power Trim/Tilt
-
1525-16226 GROMMET, Cam Rod Hole
Jet 25GROMMET, Cam Rod Hole
Jet 25 -
1625-953871 GROMMET
Power Trim/TiltGROMMET
Power Trim/Tilt -
1625-16226 GROMMET, PPT Cord Hole
Jet 25GROMMET, PPT Cord Hole
Jet 25 -
1737-859278003 DECAL, Throttle Only
HandleDECAL, Throttle Only
Handle -
18898101149 RETAINER, Stainless Steel
HandleRETAINER, Stainless Steel
Handle -
1925-896115 GROMMET, Control Cable
ElectricGROMMET, Control Cable
Electric -
1925-898101034 GROMMET, Control Cable
HandleGROMMET, Control Cable
Handle -
20NSS NOT SOLD SEPARATE, Decal-StorageNOT SOLD SEPARATE, Decal-Storage
-
2119-898101625 PLUG
HandlePLUG
Handle -
2119-898101625 PLUG, Plastic
Handle/JetPLUG, Plastic
Handle/Jet -
2210-879194270 SCREWSCREW
-
2325-853709008 GROMMET, Battery CableGROMMET, Battery Cable
-
2437-892904005 DECAL, Oil Pressure
Handle SN# 0R551808 & BelowDECAL, Oil Pressure
Handle SN# 0R551808 & Below -
2437-896854007 DECAL, Oil Pressure
SN# 0R551809 & UpDECAL, Oil Pressure
SN# 0R551809 & Up -
2537-859278004 DECAL, StartDECAL, Start
-
2625-898101088 GROMMETGROMMET
-
2722-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
28878311 CAPCAP
-
2910-879194264 BOLTBOLT
-
3054-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
3132-898101277 HOSE, RubberHOSE, Rubber
-
3227-896629 GASKETGASKET
-
3337-8M0012079 DECAL, Shift
Jet 25DECAL, Shift
Jet 25 -
-37-8M0081456 DECAL SET, Mercury, Lower Cowl
SN# 0R551809 & UpDECAL SET, Mercury, Lower Cowl
SN# 0R551809 & Up
