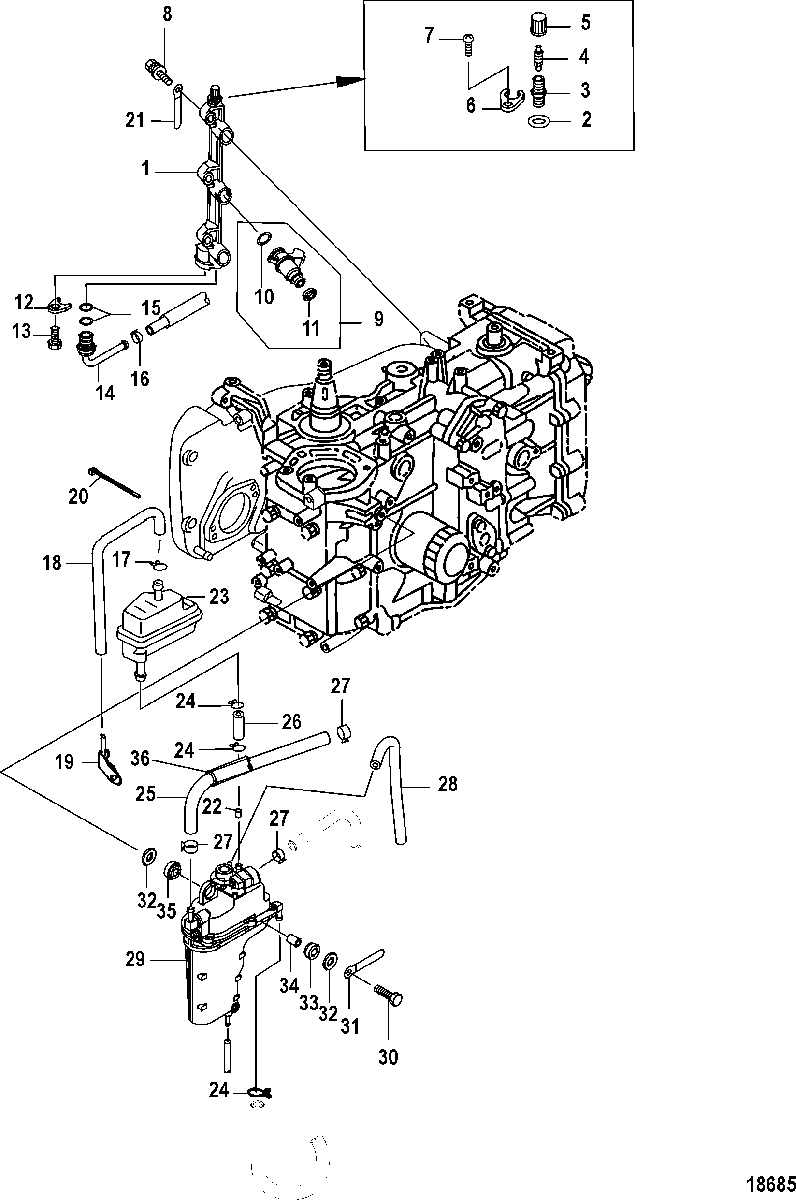

Fuel Rail and Vapor Seperator для Mariner - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
1898101T75 FUEL RAILFUEL RAIL
-
225-898101131 O-RINGO-RING
-
322-898101108 CONNECTORCONNECTOR
-
4898101212 VALVE ASSEMBLYVALVE ASSEMBLY
-
5898101023 CAPCAP
-
6898101079 PLATEPLATE
-
710-855544018 SCREWSCREW
-
810-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
98M0091784 INJECTOR, FuelINJECTOR, Fuel
-
1025-8M0095062 O-RINGO-RING
-
1125-8M0095063 O-RINGO-RING
-
1254-804830002 CLAMPCLAMP
-
1310-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
14898101120 NIPPLENIPPLE
-
1525-804840007 O-RINGO-RING
-
1654-803525004 CLIPCLIP
-
1754-95224 CLIPCLIP
-
1832-879194473 HOSE, Rubber with Arrow (730mm), Air Vent-Bottom CowlHOSE, Rubber with Arrow (730mm), Air Vent-Bottom Cowl
-
1922-898261001 FITTING, Vent
SN# 0R232961 & BelowFITTING, Vent
SN# 0R232961 & Below -
1922-898261001 FITTING, Vent
SN# 0R232962 & UpFITTING, Vent
SN# 0R232962 & Up -
2054-816311T TIE STRAPTIE STRAP
-
2156762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
22898101273 ORIFICEORIFICE
-
23898101224 VENT ASSEMBLY, AirVENT ASSEMBLY, Air
-
2454-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
2532-8M0120629 HOSE, Rubber, To Fuel CoolerHOSE, Rubber, To Fuel Cooler
-
2632-8M0073739 HOSE, RubberHOSE, Rubber
-
2632-8M0073739 HOSE, RubberHOSE, Rubber
-
2754-898101237 CLAMP, (16.8)CLAMP, (16.8)
-
2832-898101229 HOSE, Rubber (540 mm), To Bottom Cowl (540mm)HOSE, Rubber (540 mm), To Bottom Cowl (540mm)
-
29898103T25 VAPOR SEPARATOR ASSEMBLYVAPOR SEPARATOR ASSEMBLY
-
3010-8M0124428 BOLTBOLT
-
3154-803563005 CLAMPCLAMP
-
3212-161404 WASHERWASHER
-
3323-8537437 MOUNT, RubberMOUNT, Rubber
-
3423-8537154 SPACERSPACER
-
3525-8518153 GROMMETGROMMET
-
36898101260 SLEEVE, ProtectiveSLEEVE, Protective
