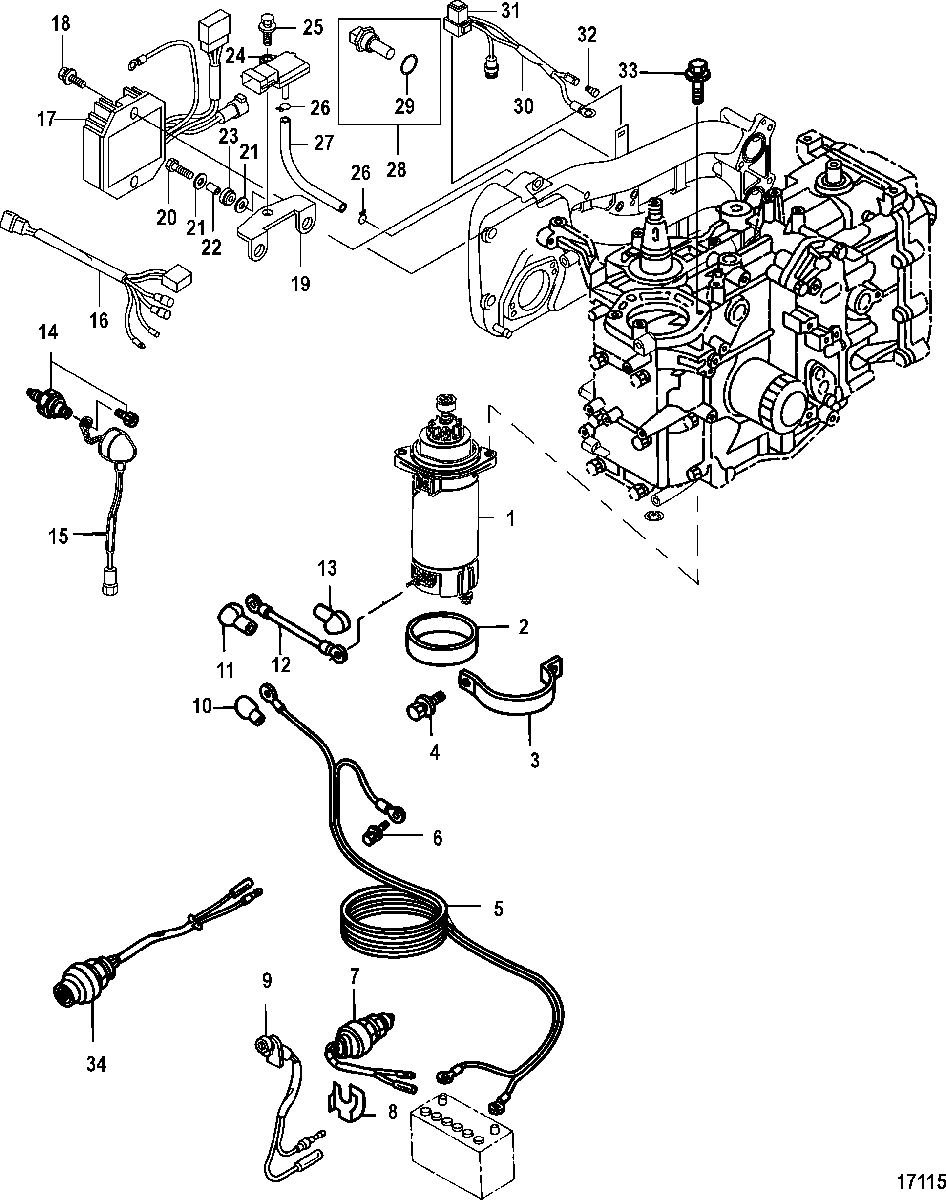

Starter Motor and Rectifier для Mariner - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
150-853805T03 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2851837 MOUNT, RubberMOUNT, Rubber
-
3898101186 BRACKETBRACKET
-
410-8M0098607 BOLTBOLT
-
584-898101T06 CABLE ASSEMBLY, BatteryCABLE ASSEMBLY, Battery
-
610-162111 BOLTBOLT
-
787-8M0127937 SWITCH ASSEMBLY, Neutral
Electric HandleSWITCH ASSEMBLY, Neutral
Electric Handle -
8803841 ACTUATOR
Electric HandleACTUATOR
Electric Handle -
9804057001 PILOT LAMPPILOT LAMP
-
1085-853816002 BOOTBOOT
-
1185-853816004 BOOT, Red, Starter SolenoidBOOT, Red, Starter Solenoid
-
1284-853740016 CABLE, StarterCABLE, Starter
-
1385-853816003 BOOT, Red, Starter MotorBOOT, Red, Starter Motor
-
1487-803538 SWITCHSWITCH
-
15898101101 CABLE ASSEMBLY, With GrommetCABLE ASSEMBLY, With Grommet
-
1684-898101144 HARNESS ASSEMBLY, Extension-PTTHARNESS ASSEMBLY, Extension-PTT
-
17853811T10 RECTIFIERRECTIFIER
-
1810-823042 BOLTBOLT
-
19898101117 PLATE, Map SensorPLATE, Map Sensor
-
2010-16705 BOLT, Stainless SteelBOLT, Stainless Steel
-
2112-953921 WASHERWASHER
-
2223-952868 COLLARCOLLAR
-
23898101158 MOUNT, RubberMOUNT, Rubber
-
24898101116 SENSOR, MAPSENSOR, MAP
-
2510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2654-95224 CLIPCLIP
-
2732-898101103 HOSE, (110 mm)HOSE, (110 mm)
-
28851846001 SENSOR, Water TemperatureSENSOR, Water Temperature
-
2925-161811 O-RINGO-RING
-
3084-898101077 CABLE ASSEMBLY, FuseCABLE ASSEMBLY, Fuse
-
3188-853814002 FUSE, 20 AmpereFUSE, 20 Ampere
-
3219-853994 PLUGPLUG
-
3310-82304211 BOLTBOLT
-
3487-853820A02 SWITCH ASSEMBLY, StartSWITCH ASSEMBLY, Start
-
3584-88807A19 CABLE ASSEMBLYCABLE ASSEMBLY
-
-50-899783A01 STARTER MOTOR KIT, ElectricSTARTER MOTOR KIT, Electric
-
-87-898101A01 TRIM SWITCH KITTRIM SWITCH KIT
