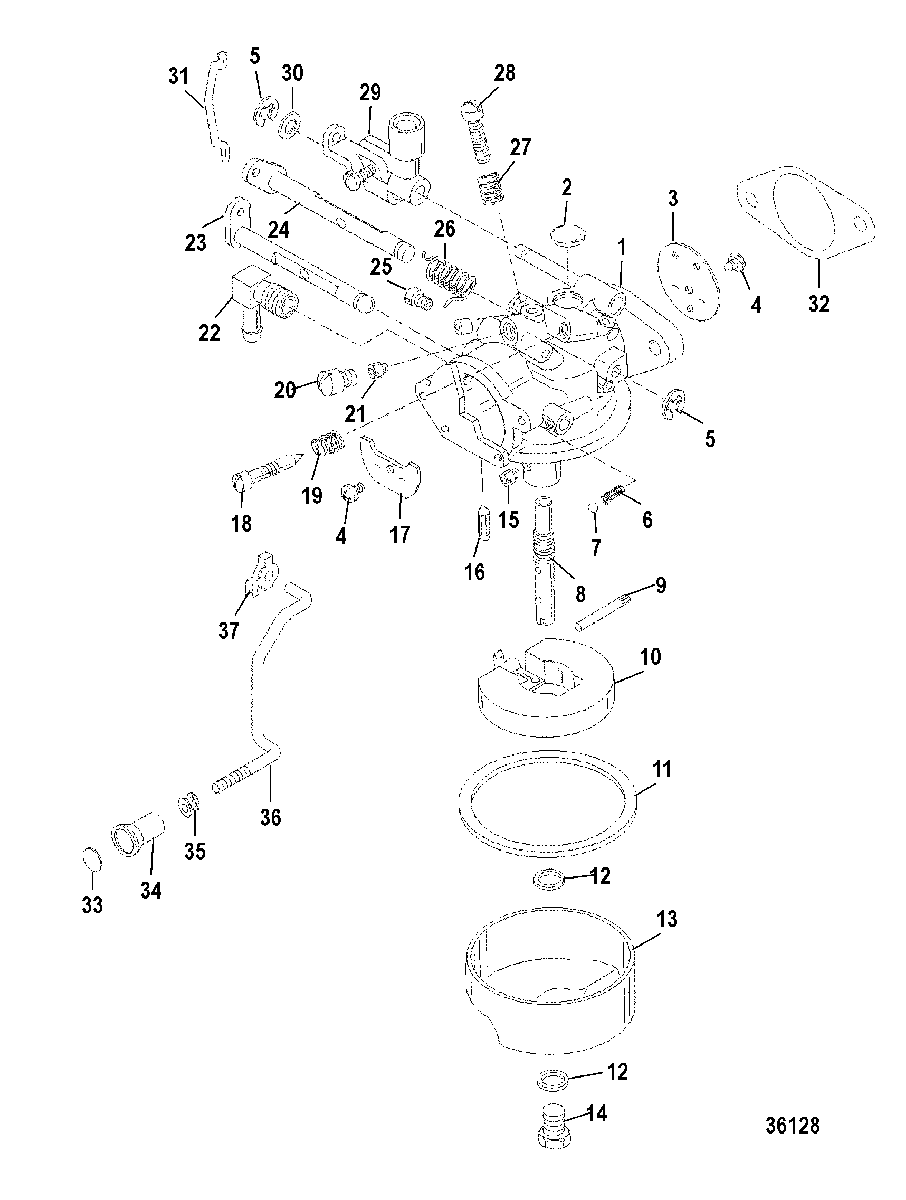

CARBURETOR для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up
-
№АртикулНазвание
-
11300-852551T1 CARBURETOR (FO-3D)CARBURETOR (FO-3D)
-
219-FO16128 PLUGPLUG
-
3809442 SHUTTER, ThrottleSHUTTER, Throttle
-
410-809441 SCREW, ShuttersSCREW, Shutters
-
5809446 E-RING, Throttle LinkageE-RING, Throttle Linkage
-
6FO8805 SPRING, Choke FrictionSPRING, Choke Friction
-
7FO4784 BALLBALL
-
8809624 NOZZLE, MainNOZZLE, Main
-
917-FO13944 PINPIN
-
10891730A01 FLOAT, Fuel BowlFLOAT, Fuel Bowl
-
1127-FO15623 GASKETGASKET
-
1227-FO2510 GASKET, Fuel BowlGASKET, Fuel Bowl
-
13FO15366 BOWL, FuelBOWL, Fuel
-
141399-5128 SCREWSCREW
-
15809448 JET, Main (.058) (0 - 2500 FT.)JET, Main (.058) (0 - 2500 FT.)
-
151399-5213 JET, Main (.056) (2500 - 5000 FT.)JET, Main (.056) (2500 - 5000 FT.)
-
151399-5225 JET, Main (.054) (5000 - 7500 FT.)JET, Main (.054) (5000 - 7500 FT.)
-
151395-6359 JET, (.052) (7500 - 10000 FT.)JET, (.052) (7500 - 10000 FT.)
-
16F10265 NEEDLE, Inlet
(NOTE: DO NOT REMOVE INLET SEAT)NEEDLE, Inlet
(NOTE: DO NOT REMOVE INLET SEAT) -
17F10344 SHUTTER, ChokeSHUTTER, Choke
-
18F10268 SCREWSCREW
-
1924-27160 SPRINGSPRING
-
20F10275 SCREWSCREW
-
21809625 JET (.046)-THROTTLEJET (.046)-THROTTLE
-
22854005 ELBOW, FuelELBOW, Fuel
-
23809440 SHAFT AND LEVER, ChokeSHAFT AND LEVER, Choke
-
24809439 SHAFT AND LEVER, ThrottleSHAFT AND LEVER, Throttle
-
251399-5225 JET, Main (.054), IDLE AIR BLEEDJET, Main (.054), IDLE AIR BLEED
-
2624-F10350 SPRING, Throttle ShaftSPRING, Throttle Shaft
-
27809445 SPRING, Idle SpeedSPRING, Idle Speed
-
28809444 SCREW, Idle SpeedSCREW, Idle Speed
-
29F10290 LINKAGE, ThrottleLINKAGE, Throttle
-
30F10242 WASHERWASHER
-
31809443 WIRE, Throttle ShaftWIRE, Throttle Shaft
-
3227-F715906 GASKET, Carburetor MountGASKET, Carburetor Mount
-
33F681677 INSERT, Choke RodINSERT, Choke Rod
-
34F286547 KNOB, ChokeKNOB, Choke
-
3523-F197319 BUSHINGBUSHING
-
36819154 ROD, ChokeROD, Choke
-
37830569 RETAINER, Choke RodRETAINER, Choke Rod
-
-FK10352 GASKET SET, CarburetorGASKET SET, Carburetor
-
-809449A1 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-809516A1 GASKET SET, PowerheadGASKET SET, Powerhead
-
-800-819240A6 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
