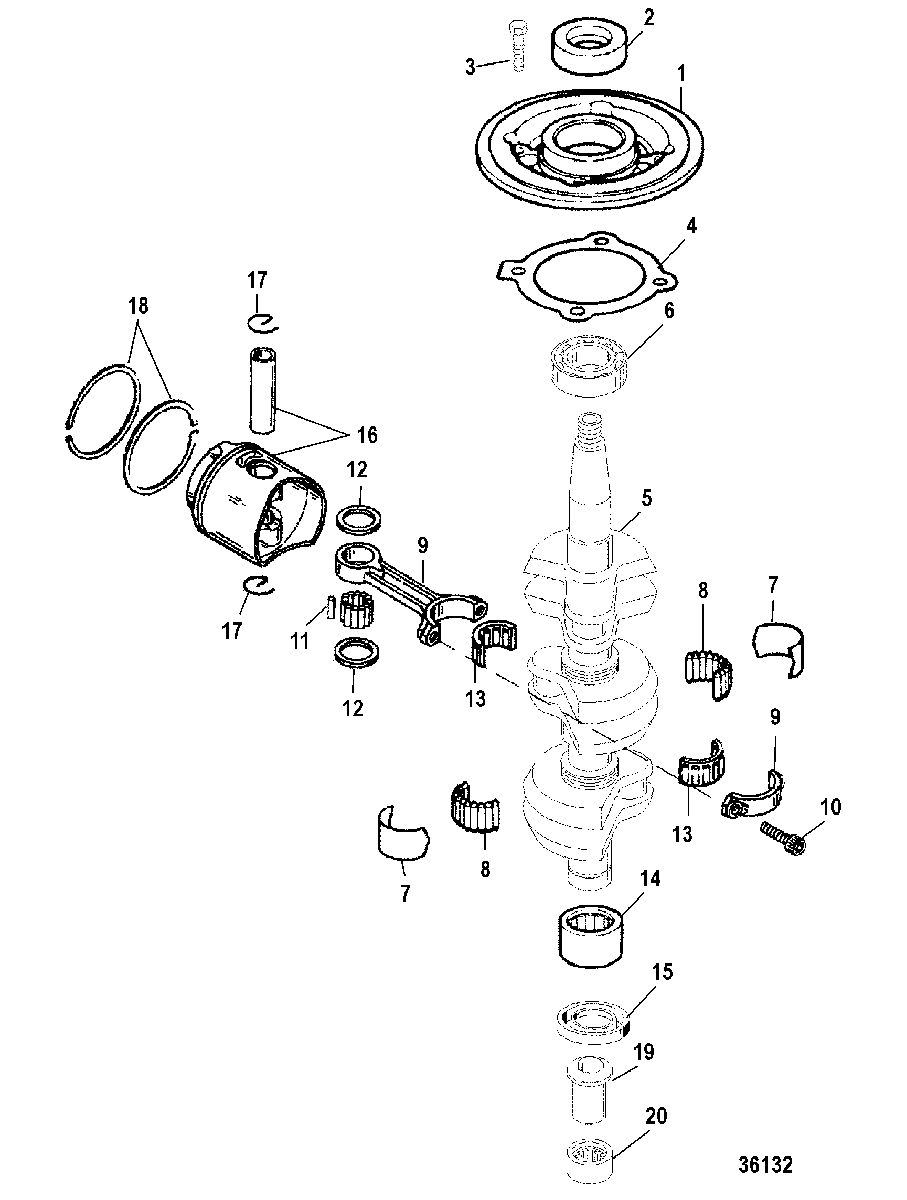

CRANKSHAFT AND PISTON для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up
-
№АртикулНазвание
-
11100-817753A4 CAGE ASSEMBLY, CrankshaftCAGE ASSEMBLY, Crankshaft
-
226-66302 SEAL, OilSEAL, Oil
-
310-F1914 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
427-F286277 GASKET, Crankshaft Bearing CageGASKET, Crankshaft Bearing Cage
-
5400-819044A3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
630-F286028 BEARING, BallBEARING, Ball
-
731-819239 LINER, Center Main RollersLINER, Center Main Rollers
-
829-819238 ROLLERS (16 PER STRIP)ROLLERS (16 PER STRIP)
-
9637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1010-823460 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1129-42186 BEARING, NeedleBEARING, Needle
-
1212-8M0012297 BEARING, ThrustBEARING, Thrust
-
1331-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1431-8191291 BEARING, MainBEARING, Main
-
1526-819214 SEAL, Crankshaft LowerSEAL, Crankshaft Lower
-
16784-9747A8 PISTON KIT (STANDARD)PISTON KIT (STANDARD)
-
1740-422021 LOCK RINGLOCK RING
-
1839-18213A1 RING SET (2 RINGS) (STANDARD)RING SET (2 RINGS) (STANDARD)
-
1926-819293 SEAL, Driveshaft SplineSEAL, Driveshaft Spline
-
208193101 RETAINER, Driveshaft Spline SealRETAINER, Driveshaft Spline Seal
-
-27-809516A1 GASKET SET, PowerheadGASKET SET, Powerhead
-
-800-819240A6 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
