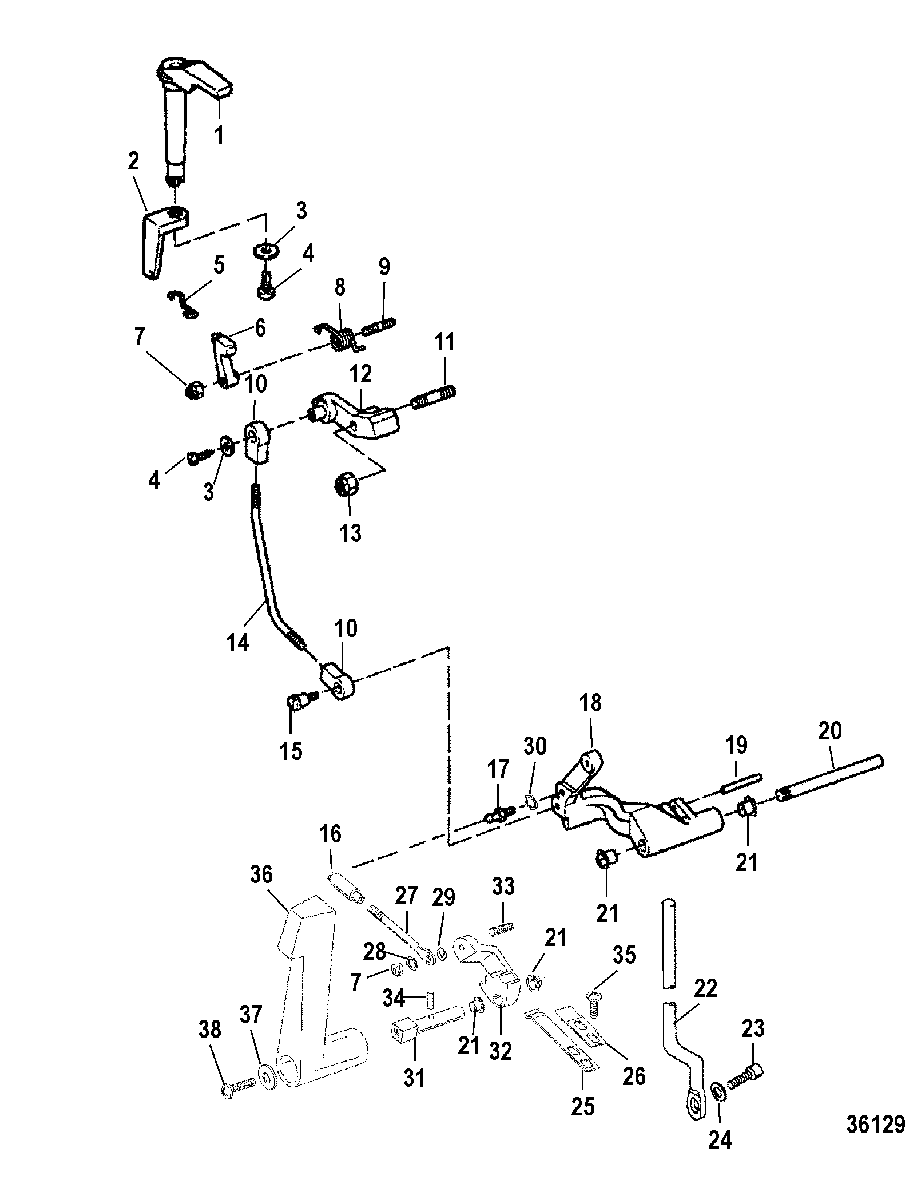

SHIFT LINKAGE для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up
-
№АртикулНазвание
-
1F681490 STOP, Starter Pulley InterlockSTOP, Starter Pulley Interlock
-
2F681003-1 ARM, Starter InterlockARM, Starter Interlock
-
312-F8143 WASHERWASHER
-
410-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
5F681263-1 LINK, Starter InterlockLINK, Starter Interlock
-
6F681742 LEVER, Intermediate InterlockLEVER, Intermediate Interlock
-
711-20110 NUT, (#10-32)NUT, (#10-32)
-
824-F681424 SPRING, Interlock LeverSPRING, Interlock Lever
-
916-F681134 STUD, Interlock LeverSTUD, Interlock Lever
-
10816514 BEARING, Spark ControlBEARING, Spark Control
-
1116-826590 STUD, (.250-20 x 1.690) (.250-20 X 1.690)STUD, (.250-20 x 1.690) (.250-20 X 1.690)
-
12824357 LEVER, Neutral Speed InterlockLEVER, Neutral Speed Interlock
-
1311-814101 NUT, (.250-20) Stainless SteelNUT, (.250-20) Stainless Steel
-
14819159 ROD, InterlockROD, Interlock
-
1510-819625 SCREWSCREW
-
16F286685 CONNECTOR, Gear Shift RodCONNECTOR, Gear Shift Rod
-
1716-F98273 STUDSTUD
-
18855621T LEVER, Gear ShiftLEVER, Gear Shift
-
1917-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
20F286871T PIN, Gear Shift LeverPIN, Gear Shift Lever
-
2123-26841 BUSHINGBUSHING
-
228193781 ROD, Upper Gear ShiftROD, Upper Gear Shift
-
2310-F1976 SCREW, (#10-24 x .500)SCREW, (#10-24 x .500)
-
2412-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2524-39627 SPRINGSPRING
-
26824994 SPRING, PlateSPRING, Plate
-
27850388 LINK, Shift LeverLINK, Shift Lever
-
2813-F8048 WASHER, BowedWASHER, Bowed
-
2913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3013-F8058 LOCKWASHER, Internal (#10)LOCKWASHER, Internal (#10)
-
31850386 SHAFT, Shift HandleSHAFT, Shift Handle
-
32850387A1 LEVER ASSEMBLY, Detent CamLEVER ASSEMBLY, Detent Cam
-
3316-846345 STUD, (#10-32 x .750)STUD, (#10-32 x .750)
-
3417-25905 PINPIN
-
3510-42813 SCREW, (#10-32 X .380) (#10-32 X .380)SCREW, (#10-32 X .380) (#10-32 X .380)
-
36852545 HANDLE, ShiftHANDLE, Shift
-
3712-4002314 WASHERWASHER
-
3810-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
-800-819240A6 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
