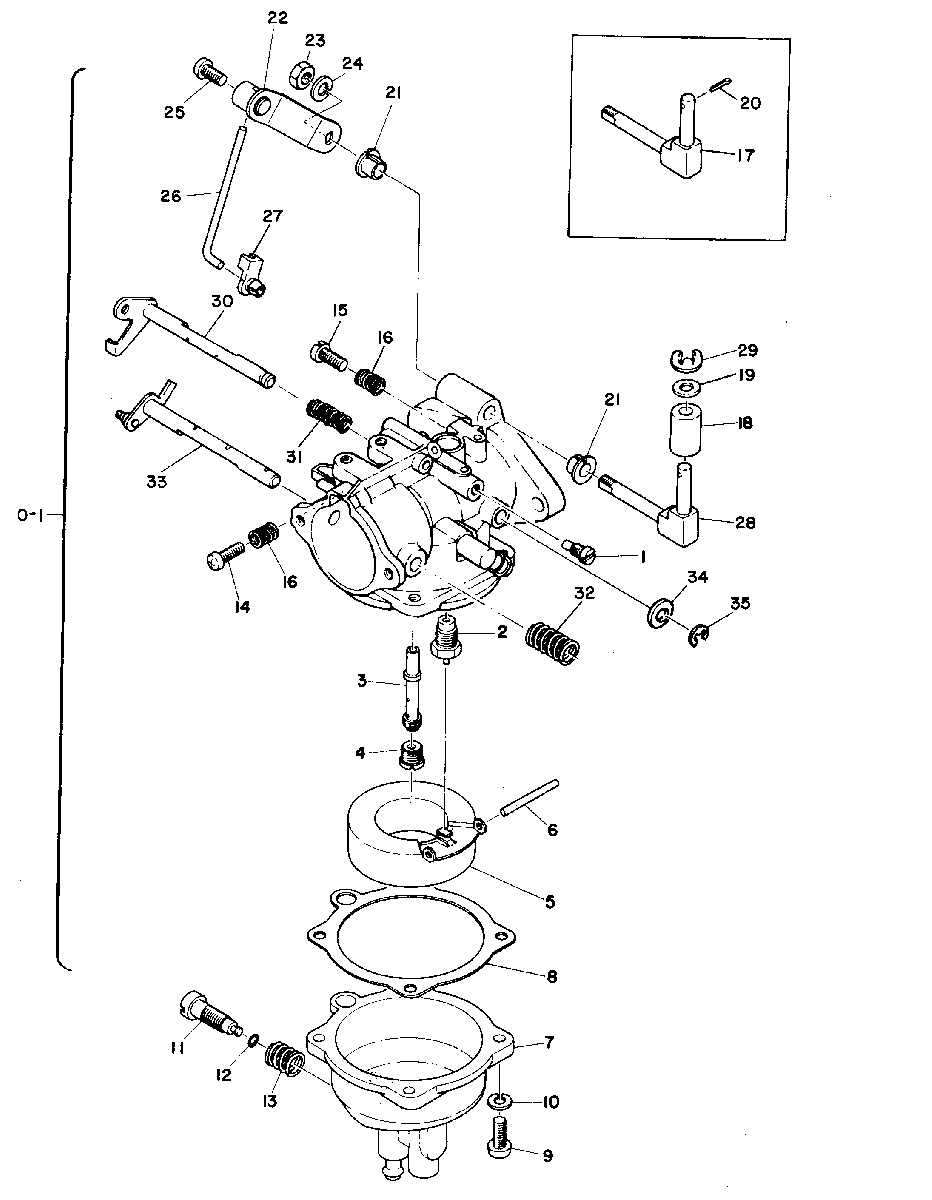

CARBURETOR для Mariner - 28 664-56820 AND BELOW
-
№АртикулНазвание
-
0-11383-6850M CARBURETOR ASS'Y
SERIAL 00000000-00005305CARBURETOR ASS'Y
SERIAL 00000000-00005305 -
0-11383-6959M CARBURETOR ASS'Y
SERIAL 00005306-09999999CARBURETOR ASS'Y
SERIAL 00005306-09999999 -
180578M JET, LOW SPEED (#60)JET, LOW SPEED (#60)
-
280593M INLET VALVE & SEATINLET VALVE & SEAT
-
380576M NOZZLE, MAINNOZZLE, MAIN
-
480582M JET, MAIN (#140)JET, MAIN (#140)
-
580591M FLOATFLOAT
-
617-80592M PIN, FLOATPIN, FLOAT
-
714234M FLOAT BOWL
SERIAL 00000000-00005305FLOAT BOWL
SERIAL 00000000-00005305 -
783200M FLOAT BOWL .
SERIAL 00005306-09999999FLOAT BOWL .
SERIAL 00005306-09999999 -
827-80590M GASKET, FLOAT BOWLGASKET, FLOAT BOWL
-
910-82515M SCREW, BOWL ATTACHINGSCREW, BOWL ATTACHING
-
1013-82206M LOCK WASHER, BOWL ATTACHING SCREWLOCK WASHER, BOWL ATTACHING SCREW
-
1110-80349M VALVE, DRAIN .
SERIAL 00000000-00005305VALVE, DRAIN .
SERIAL 00000000-00005305 -
1225-80350M 0-RING, DRAIN VALVE .
SERIAL 00000000-000053050-RING, DRAIN VALVE .
SERIAL 00000000-00005305 -
1324-80331M SPRING, DRAIN VALVE .
SERIAL 00000000-00005305SPRING, DRAIN VALVE .
SERIAL 00000000-00005305 -
1410-83509M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
1510-80573M SCREW, IDLE MIXTURESCREW, IDLE MIXTURE
-
1624-80575M SPRING, IDLE SCREWSPRING, IDLE SCREW
-
1780623M SHAFT, THROTTLE .
SERIAL 00000000-00004605SHAFT, THROTTLE .
SERIAL 00000000-00004605 -
1823-80220M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
1912-82209M WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
2018-16189 PIN, THROTTLE SHAFT .
SERIAL 00000000-00004605PIN, THROTTLE SHAFT .
SERIAL 00000000-00004605 -
2123-81941M BUSHING, THROTTLE SHAFTBUSHING, THROTTLE SHAFT
-
2280622M LEVER, THROTTLELEVER, THROTTLE
-
2311-83763M NUT, THROTTLE LEVER TO SHAFTNUT, THROTTLE LEVER TO SHAFT
-
2413-82186M LOCK WASHER, LEVER NUTLOCK WASHER, LEVER NUT
-
2510-83112M SET SCREW, THROTTLE LEVERSET SCREW, THROTTLE LEVER
-
2681119M LINK ROD, THROTTLE LEVER .
SERIAL 00000000-00004605LINK ROD, THROTTLE LEVER .
SERIAL 00000000-00004605 -
2683160M LINK ROD, THROTTLE LEVER
SERIAL 0L_38146-0Z999999LINK ROD, THROTTLE LEVER
SERIAL 0L_38146-0Z999999 -
2716333 SWIVEL, THROTTLESWIVEL, THROTTLE
-
28811037M SHAFT, THROTTLE
SERIAL 00004606-09999999SHAFT, THROTTLE
SERIAL 00004606-09999999 -
2953-82328M CIRCLIP
SERIAL 00005606-09999999CIRCLIP
SERIAL 00005606-09999999 -
3083201M LEVER THROTTLE .
SERIAL 00004606-09999999LEVER THROTTLE .
SERIAL 00004606-09999999 -
3124-80574M SPRING, THROTTLE VALVE
SERIAL 00004606-09999999SPRING, THROTTLE VALVE
SERIAL 00004606-09999999 -
3224-83202M SPRING, CHOKE LEVER .
SERIAL 00004606-09999999SPRING, CHOKE LEVER .
SERIAL 00004606-09999999 -
3383203M CHOKE LEVER COMP .
SERIAL 00004606-09999999CHOKE LEVER COMP .
SERIAL 00004606-09999999 -
3412-84401M WASHER
SERIAL 00004606-09999999WASHER
SERIAL 00004606-09999999 -
3553-83205M CIRCLIP .
SERIAL 00004606-09999999CIRCLIP .
SERIAL 00004606-09999999
