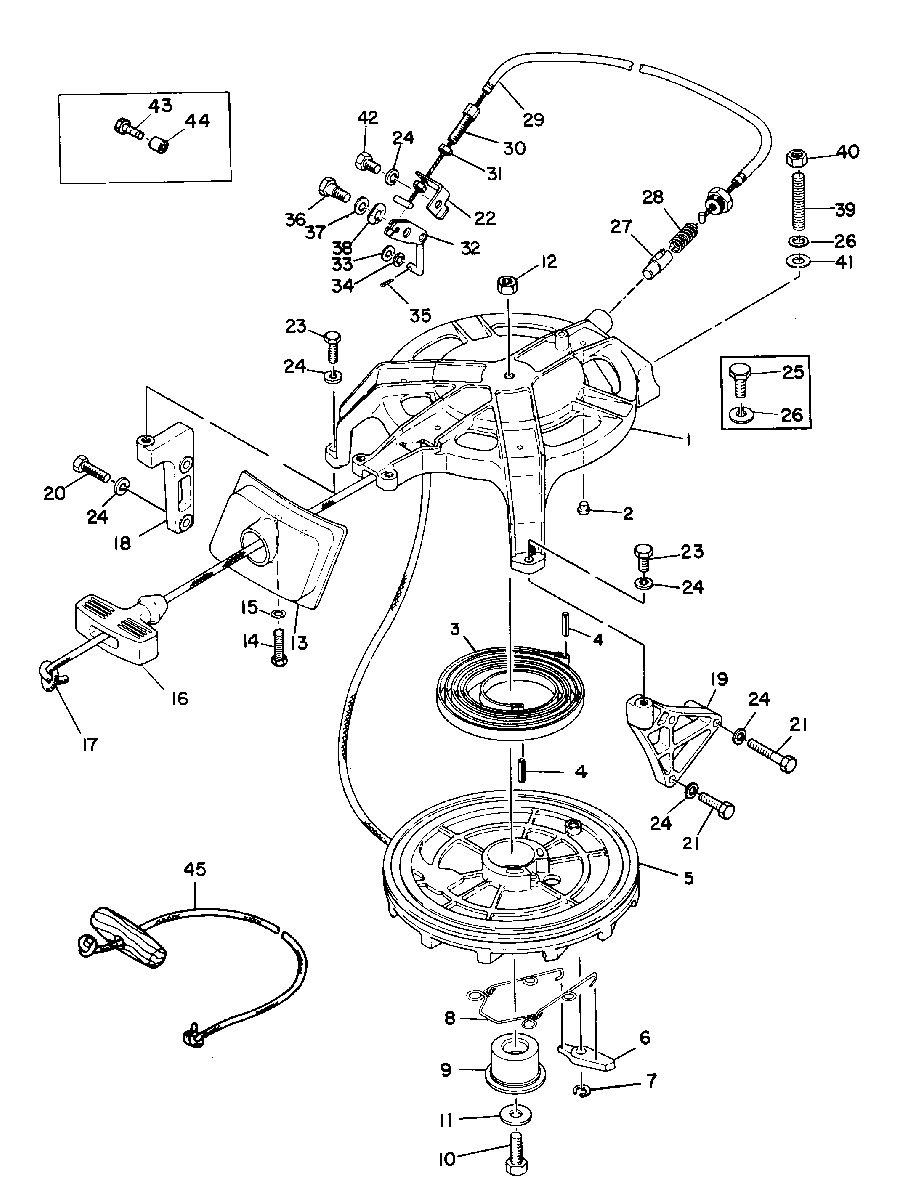

RECOIL STARTER для Mariner - 28 664-56820 AND BELOW
-
№АртикулНазвание
-
0-150-83211M STARTER ASS'Y
SERIAL 00000000-00004605STARTER ASS'Y
SERIAL 00000000-00004605 -
0-150-83211M STARTER ASS'Y
SERIAL 00004606-09999999STARTER ASS'Y
SERIAL 00004606-09999999 -
12169-6960M HOUSING, STARTER
SERIAL 00000000-00004605HOUSING, STARTER
SERIAL 00000000-00004605 -
12169-6960M HOUSING, STARTER
SERIAL 00004606-09999999HOUSING, STARTER
SERIAL 00004606-09999999 -
219-80604M PLUG, STARTER HOUSINGPLUG, STARTER HOUSING
-
324-82115M SPRING, STARTERSPRING, STARTER
-
417-82157M PIN, STARTER SPRINGPIN, STARTER SPRING
-
550-81105M STARTER SHEAVESTARTER SHEAVE
-
680599M PAWL, STARTERPAWL, STARTER
-
753-82331M CIRCLIP, STARTER PAWLCIRCLIP, STARTER PAWL
-
824-81103M SPRING, PAWLSPRING, PAWL
-
980598M SHAFT, SHEAVESHAFT, SHEAVE
-
1010-84342M BOLT, SHEAVE SHAFTBOLT, SHEAVE SHAFT
-
1112-81801M WASHER, SHEAVE SHAFT BOLTWASHER, SHEAVE SHAFT BOLT
-
1211-82382M NUT, SHEAVE SHAFT BOLTNUT, SHEAVE SHAFT BOLT
-
1380600M GUIDE, STARTER ROPEGUIDE, STARTER ROPE
-
1410-826957M BOLT, GUIDE ATTACHINGBOLT, GUIDE ATTACHING
-
1513-82212M LOCK WASHERLOCK WASHER
-
16814491A1 HANDLE, STARTERHANDLE, STARTER
-
1750-12066Q10 STARTER ROPESTARTER ROPE
-
1880602M BRACKET, STARTER HSG. (STARBOARD)BRACKET, STARTER HSG. (STARBOARD)
-
1980603M BRACKET, STARTER HSG. (PORT MANUAL)BRACKET, STARTER HSG. (PORT MANUAL)
-
2010-83285M BOLT, BRACKET ATTACHINGBOLT, BRACKET ATTACHING
-
2110-827043M BOLT, BRACKET ATTACHINGBOLT, BRACKET ATTACHING
-
2281109M BRACKET, STARTER LOCKOUTBRACKET, STARTER LOCKOUT
-
2310-84058M BOLT, HOUSING ATTACHING-FRONTBOLT, HOUSING ATTACHING-FRONT
-
2413-82212M LOCK WASHER, FRONT HOUSING BOLTLOCK WASHER, FRONT HOUSING BOLT
-
2510-82439M BOLT, HOUSING ATTACHING-REAR
SERIAL 00000000-00001725BOLT, HOUSING ATTACHING-REAR
SERIAL 00000000-00001725 -
2613-82215M LOCK WASHER, REAR HOUSING BOLTLOCK WASHER, REAR HOUSING BOLT
-
2781106M PLUNGER, STARTER LOCKOUTPLUNGER, STARTER LOCKOUT
-
2824-82079M SPRING, STARTER LOCKOUTSPRING, STARTER LOCKOUT
-
2981108M CABLE, STARTER LOCKOUTCABLE, STARTER LOCKOUT
-
3010-815139M BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
3111-82389M NUT, JAM-ADJUSTING BOLTNUT, JAM-ADJUSTING BOLT
-
3281107M LINK, STARTER LOCKOUTLINK, STARTER LOCKOUT
-
3312-82211M WASHER, LINKWASHER, LINK
-
3413-81865M WASHER, WAVE-LINKWASHER, WAVE-LINK
-
3518-16189 PIN, LINK
SERIAL 00000000-00004605PIN, LINK
SERIAL 00000000-00004605 -
3518-82125M PIN, LINK
SERIAL 00004606-09999999PIN, LINK
SERIAL 00004606-09999999 -
3610-81712M BOLT, LINK ATTACHING
SERIAL 00000000-00004605BOLT, LINK ATTACHING
SERIAL 00000000-00004605 -
3712-82214M WASHER, LINK BOLTWASHER, LINK BOLT
-
3813-81867M WASHER, WAVE-LINK BOLTWASHER, WAVE-LINK BOLT
-
3916-81741M BOLT, STUD
SERIAL 26-04605-09999999BOLT, STUD
SERIAL 26-04605-09999999 -
3916-83317M BOLT, STUD
SERIAL 00004606-09999999BOLT, STUD
SERIAL 00004606-09999999 -
4011-82382M NUT
SERIAL 00001726-09999999NUT
SERIAL 00001726-09999999 -
4112-82216M WASHER
SERIAL 00001726-09999999WASHER
SERIAL 00001726-09999999 -
4210-91772M BOLT, BRACKET ATTACHINGBOLT, BRACKET ATTACHING
-
4310-84058M BOLT
SERIAL 00004606-09999999BOLT
SERIAL 00004606-09999999 -
4423-82929M COLLAR
SERIAL 00004606-09999999COLLAR
SERIAL 00004606-09999999 -
4547341A11 EMERGENCY STARTER ROPEEMERGENCY STARTER ROPE
