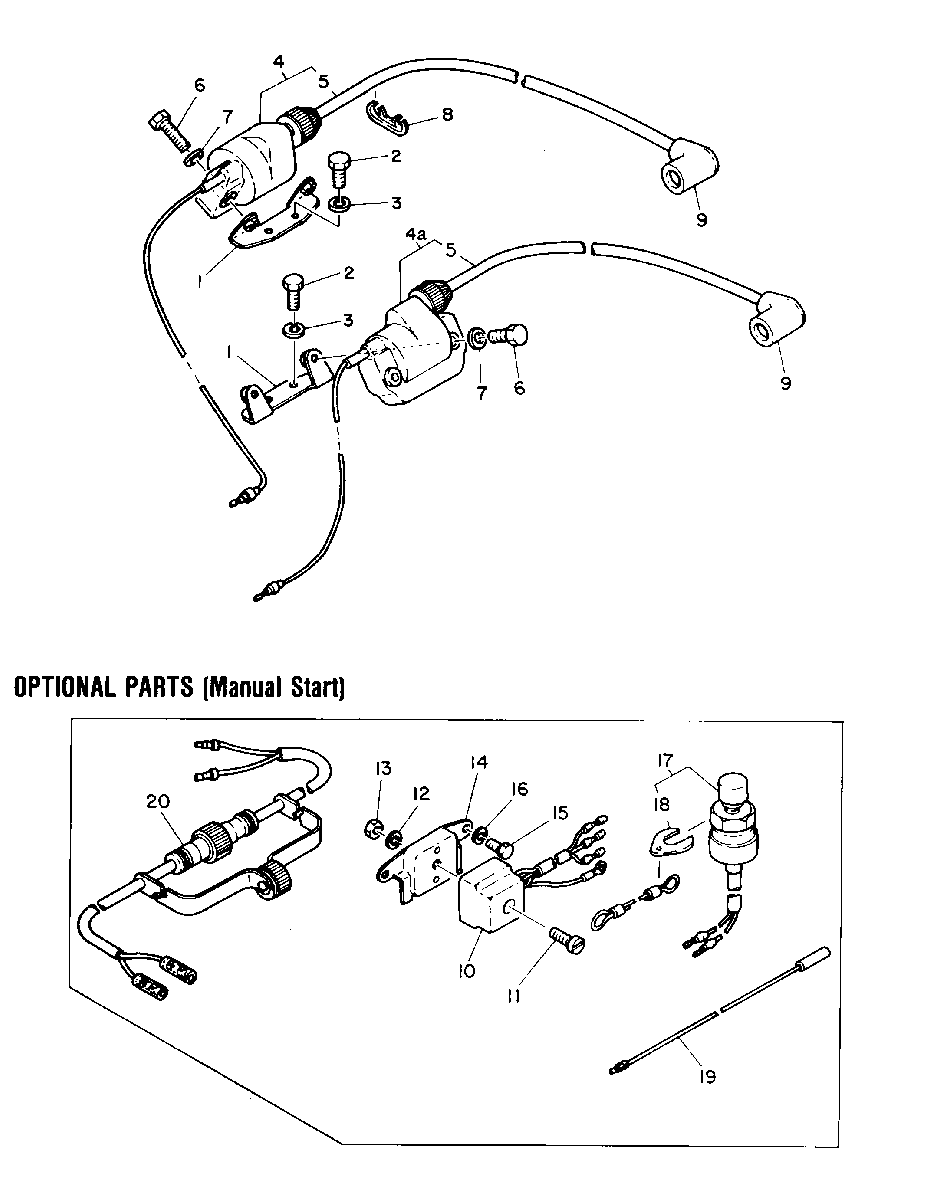

ELECTRICAL для Mariner - 28 664-56820 AND BELOW
-
№АртикулНазвание
-
181657M BRACKET, SECONDARY COILBRACKET, SECONDARY COIL
-
213-82212M BOLT, COIL BRACKET ATTACHINGBOLT, COIL BRACKET ATTACHING
-
313-82212M LOCK WASHER, COIL BRACKET BOLTLOCK WASHER, COIL BRACKET BOLT
-
481656M SECONDARY IGNITION BOIL (SHORT LEAD)SECONDARY IGNITION BOIL (SHORT LEAD)
-
4A83776M SECONDARY IGNITION COIL (LONG LEAD)SECONDARY IGNITION COIL (LONG LEAD)
-
584-82831M CORD, HIGH TENSIONCORD, HIGH TENSION
-
610-82405M BOLT, COIL ATTACHINGBOLT, COIL ATTACHING
-
712-82214M WASHERWASHER
-
882038M CLAMP, HIGH TENSION LEADSCLAMP, HIGH TENSION LEADS
-
985-63709A1 PLUG CAP ASS'Y
SERIAL 00000000-00004605PLUG CAP ASS'Y
SERIAL 00000000-00004605 -
985-63709A1 PLUG CAP ASS'Y
SERIAL 00004606-09999999PLUG CAP ASS'Y
SERIAL 00004606-09999999 -
985-815119M PLUG CAP ASS'Y (NOISE SUPPRESOR) (OPT)PLUG CAP ASS'Y (NOISE SUPPRESOR) (OPT)
