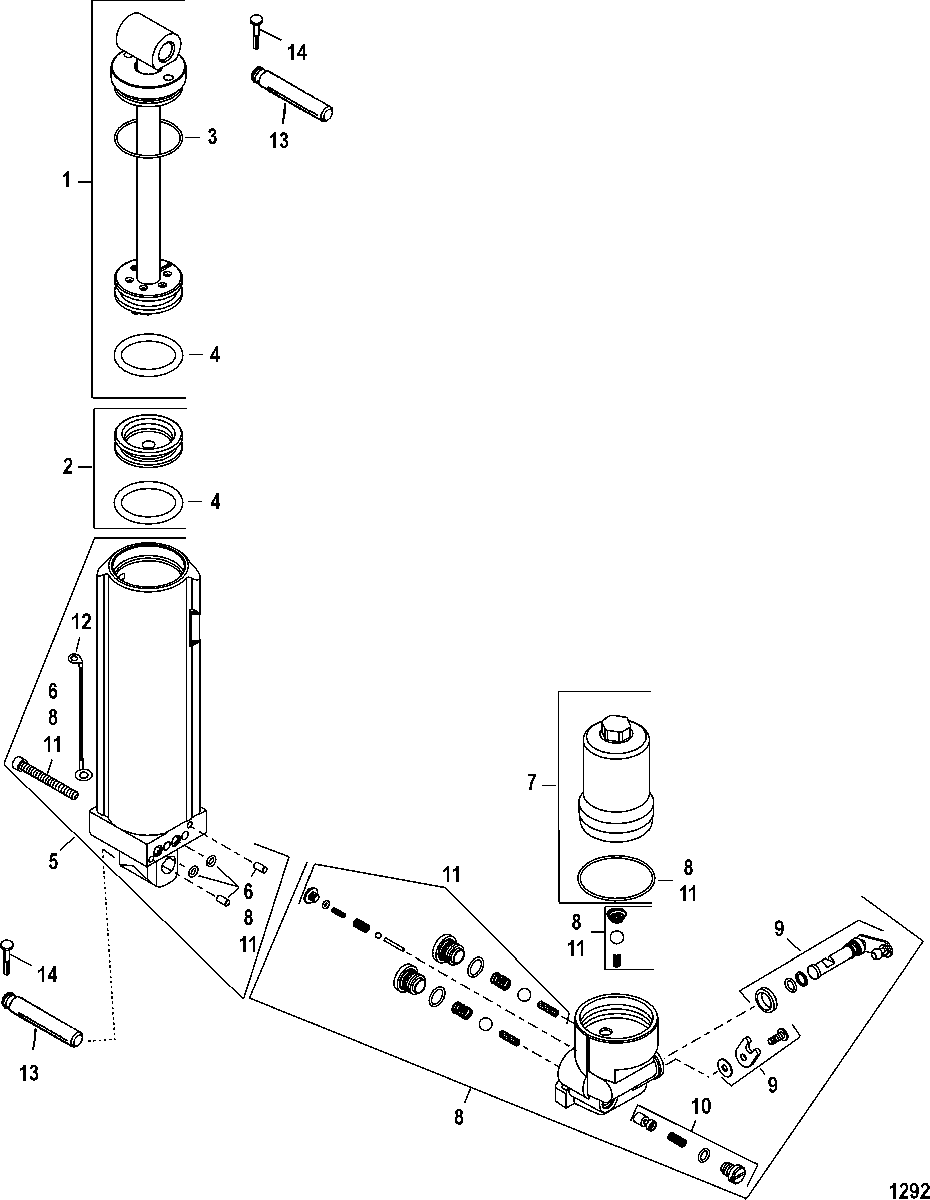

Manual Tilt для Mariner - 30 EFI (3 CYL.)(4-STROKE) 1C109093 & Up
-
№АртикулНазвание
-
-8M0118570 MANUAL TRIM ASSEMBLYMANUAL TRIM ASSEMBLY
-
18M0118572 SHOCK ROD KITSHOCK ROD KIT
-
2893903A01 PISTON KITPISTON KIT
-
325-893917A01 REBUILD KIT, O-RingREBUILD KIT, O-Ring
-
4NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
5893918A01 CYLINDER KITCYLINDER KIT
-
6893919A01 SCREW/SEAL KITSCREW/SEAL KIT
-
7893920A01 ACCUMULATOR KITACCUMULATOR KIT
-
88M0118574 VALVE BODY KITVALVE BODY KIT
-
9893923A01 CAM KITCAM KIT
-
10893924A01 VALVE KITVALVE KIT
-
11893925A01 REPAIR KITREPAIR KIT
-
1288238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
-25-893922A01 O-RING KITO-RING KIT
-
1317-19607 PINPIN
-
1417-821539 PIN, TrilobePIN, Trilobe
