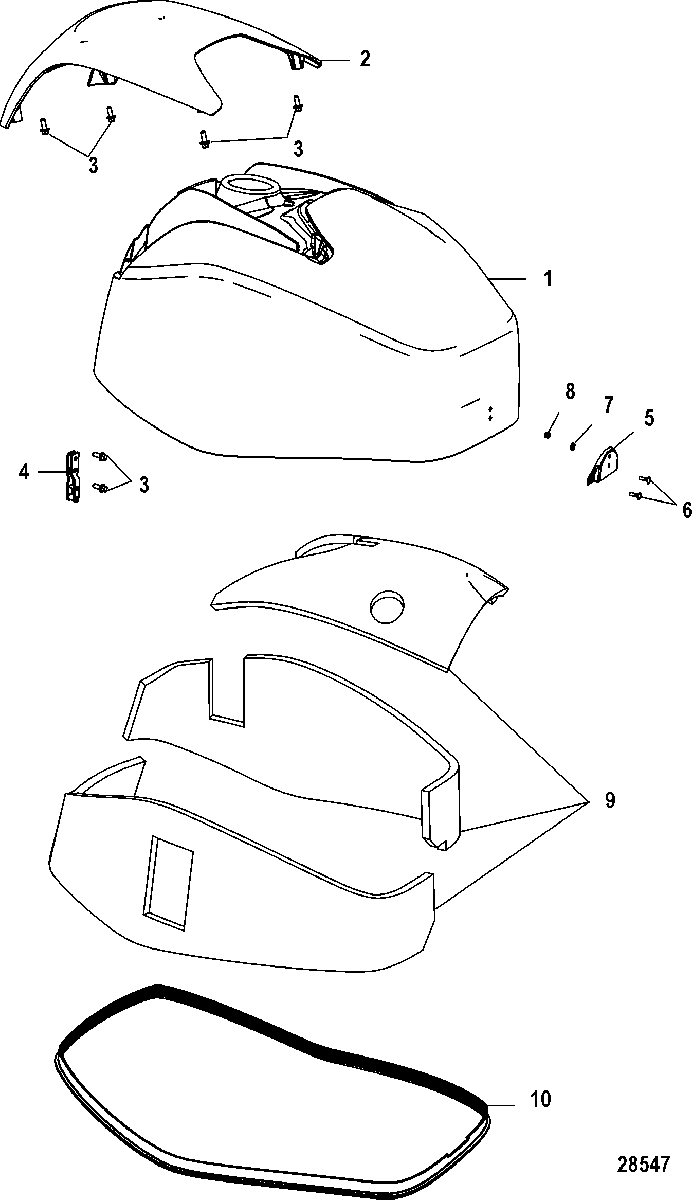

Top Cowl для Mariner - 30 EFI (3 CYL.)(4-STROKE) 1C109093 & Up
-
№АртикулНазвание
-
1100-834785T40 TOP COWL ASSEMBLY, Mercury 40hp, Decaled
SN# 1C104333 & BelowTOP COWL ASSEMBLY, Mercury 40hp, Decaled
SN# 1C104333 & Below -
1100-8M0047962 TOP COWL ASSEMBLY, Mercury 40hp, Decaled
SN# 1C104334 & UpTOP COWL ASSEMBLY, Mercury 40hp, Decaled
SN# 1C104334 & Up -
1100-8M0118166 TOP COWL ASSEMBLY, Mariner 40hp, DecaledTOP COWL ASSEMBLY, Mariner 40hp, Decaled
-
1100-8M0047968 TOP COWL ASSEMBLY, Mercury 30hp, DecaledTOP COWL ASSEMBLY, Mercury 30hp, Decaled
-
1100-8M0047960 TOP COWL ASSEMBLY, Mariner 30hp, DecaledTOP COWL ASSEMBLY, Mariner 30hp, Decaled
-
-100-8M0118164 TOP COWL ASSEMBLY, Mercury 30/40hp, w/o decalsTOP COWL ASSEMBLY, Mercury 30/40hp, w/o decals
-
-100-8M0118166 TOP COWL ASSEMBLY, Mariner 30/40hp, w/o decalsTOP COWL ASSEMBLY, Mariner 30/40hp, w/o decals
-
28M0118170 CAP, Air Dam - MercuryCAP, Air Dam - Mercury
-
28M0118172 CAP, Air Dam - MarinerCAP, Air Dam - Mariner
-
310-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
48M0006055 BRACKETBRACKET
-
5826291T02 BRACKET, Front LatchBRACKET, Front Latch
-
610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
712-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
811-400632 NUTNUT
-
9834786A05 SOUND BLANKET KITSOUND BLANKET KIT
-
108M0109278 SEALSEAL
-
-37-8M0114767 DECAL SET, Mercury 40
SN# 1C104333 & BelowDECAL SET, Mercury 40
SN# 1C104333 & Below -
-37-8M0114992 DECAL SET, Mercury 40
SN# 1C104334 THRU 1C192592DECAL SET, Mercury 40
SN# 1C104334 THRU 1C192592 -
-37-896856002 DECAL, 40
SN# 1C192592 & BelowDECAL, 40
SN# 1C192592 & Below -
-37-8M0071110 DECAL SET, Mercury 40hp
SN# 1C192593 - 1C262469 & UpDECAL SET, Mercury 40hp
SN# 1C192593 - 1C262469 & Up -
-37-8M0114997 DECAL SET, ME 40HP 3CYL
SN# 1C262470 & UpDECAL SET, ME 40HP 3CYL
SN# 1C262470 & Up -
-37-8M0063348 DECAL, 40
SN# 1C192593 & UpDECAL, 40
SN# 1C192593 & Up -
-37-883532A08 DECAL SET, Mariner 40hpDECAL SET, Mariner 40hp
-
-37-8M0012388 DECAL, 40DECAL, 40
-
-37-8M0047969 DECAL SET, Mercury 30hp
SN# 1C192592 & BelowDECAL SET, Mercury 30hp
SN# 1C192592 & Below -
-37-8M0044902 DECAL, 30
SN# 1C192592 & BelowDECAL, 30
SN# 1C192592 & Below -
-37-8M0071109 DECAL SET, Mercury 30hp
SN# 1C192593 - 1C262469 & UpDECAL SET, Mercury 30hp
SN# 1C192593 - 1C262469 & Up -
-37-8M0114997 DECAL SET, ME 30HP 3CYL
SN# 1C262470 & UpDECAL SET, ME 30HP 3CYL
SN# 1C262470 & Up -
-37-8M0063347 DECAL, 30
SN# 1C192593 & UpDECAL, 30
SN# 1C192593 & Up -
-37-8M0047961 DECAL SET, Mariner 30hpDECAL SET, Mariner 30hp
-
-37-8M0098330 DECAL SET, MA 30HP 3CYL
SN# 1C262470 & UpDECAL SET, MA 30HP 3CYL
SN# 1C262470 & Up -
-37-8M0044755 DECAL, 30DECAL, 30
